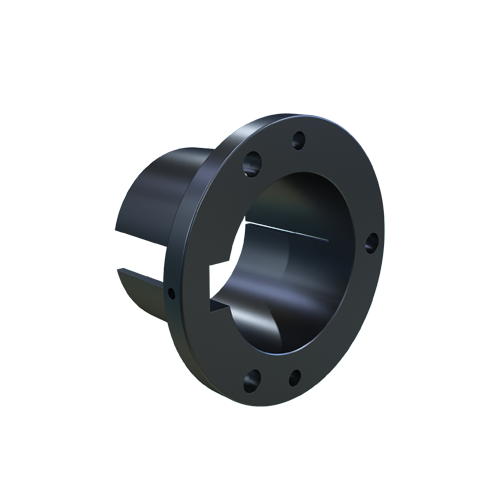

MARTIN SPROCKET U0 5 1/4 Bushing, 4.938 Inch Length Through Bore, 5.250 Inch Bore, Ductile Iron
5 1/4"
Get it by Monday, Aug 31
€704.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bushing |
| Bolt Circle Dia. | 7" |
| Bore Dia. | 5 1/4" |
| Cap Screw Size | 5/8"-11 x 2 3/4" |
| Flange Dia. | 8 3/8" |
| Flange Thickness | 3/4" |
| Hub Dia. | 8 1/2" |
| Key Way Size | 1 1/4" x 5/8" |
| Large End Barrel Dia. | 6" |
| Length | 4.94" |
| Material | Ductile Iron |
| No. Of Bolt Holes | 3 |
| Set Screw Size | 3/8"-16 x 3/8" |
| Small End Barrel Dia. | 5.7656" |
| Suitable For Use With | MST Sprockets, HU0 Weld On Hub |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Country of Origin | US |
