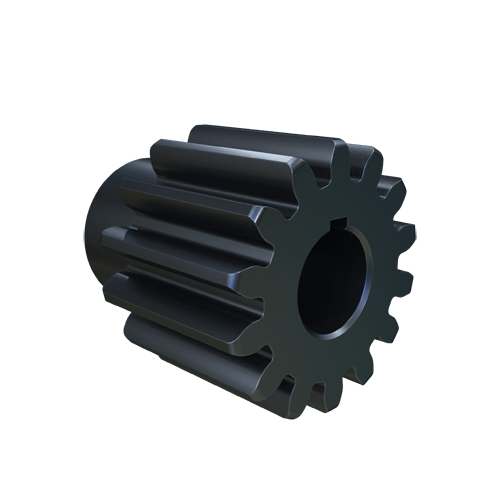

MARTIN SPROCKET TS814BS 3/4 Spur Gear, 8 Diametral Pitch, 1.750 Inch Pitch Dia., Bore To Size, Steel
Item: AL4NDKModel: TS814BS 3/4
7 In Stock
Ships within 2 days via
€184.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 3/4" to 13/16" |
| Diametral Pitch | 8 |
| Face Width | 1 1/2" |
| Hub Dia. | 1 5/16" |
| Hub Projection | 3/4" |
| Hub Type | B |
| Key Way Size | 0.1875" x 0.0938" |
| Length | 2 1/4" |
| Material | Steel |
| No. Of Teeth | 14 |
| Pitch Dia. | 1 3/4" |
| Pressure Angle | 20° |
| Type | Bored to Size |
Shipping Info:
| Ship weight (kg) | 0.44 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Pressure Angle | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Type | Key Way Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S811BS 3/4 | 1 1/2" | 14.5° | 11 | 1 1/4" | 1 1/8" | 3/4" | Bored to Size | 0.1875" x 0.0938" | €159.37 | |
 |
S822BS 1 | 2 3/4" | 14.5° | 22 | 1 1/4" | 2 3/8" | 1" | Bored to Size External Tooth | 0.3125" x 0.1562" | €258.91 | |
 |
S812BS 3/4 | 1 1/2" | 14.5° | 12 | 1 1/4" | 1 1/8" | 3/4" | Bored to Size | 0.1875" x 0.0938" | €159.37 | |
 |
S814BS 3/4 | 1 3/4" | 14.5° | 14 | 1 1/4" | 1 3/8" | 3/4" to 13/16" | Bored to Size | 1/4" x 1/8" | €184.91 | |
 |
S815BS 7/8 | 1 7/8" | 14.5° | 15 | 1 1/4" | 1 1/2" | 7/8" | Bored to Size External Tooth | 1/4" x 1/8" | €190.15 | |
|
S818BS 1 1/8 | 2 1/4" | 14.5° | 18 | 1 1/4" | 1 7/8" | 1 1/8" | Bored to Size | 1/32" x 5/32" | €207.68 | |
 |
S818BS 7/8 | 2 1/4" | 14.5° | 18 | 1 1/4" | 1 7/8" | 7/8" | Bored to Size External Tooth | 1/4" x 1/8" | €207.68 |
