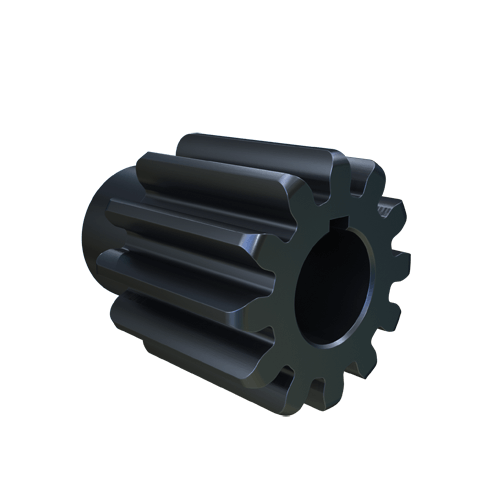

MARTIN SPROCKET TS612BS 1 Spur Gear, 6 DP, 20 Deg., 2 Inch Pitch Dia., 1 Inch Bore, Bored Size, Steel
Item: AL4NCWModel: TS612BS 1
7 In Stock
Ships within 2 days via
€200.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 1" |
| Diametral Pitch | 6 |
| Face Width | 2" |
| Hub Dia. | 1 1/2" |
| Hub Projection | 7/8" |
| Hub Type | B |
| Key Way Size | 1/4" x 1/8" |
| Length | 2 7/8" |
| Material | Steel |
| No. Of Teeth | 12 |
| Pitch Dia. | 2" |
| Pressure Angle | 20° |
| Type | Bored to Size External Tooth |
Shipping Info:
| Ship weight (kg) | 1.33 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 5.92 |
| Ship width (cm) | 5.92 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Material | Pressure Angle | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S614BS 1 | 2.333" | Steel | 14.5° | 14 | 1 1/2" | 1.813" | 1" | Bored to Size External Tooth | €228.03 | |
 |
S615BS 1 1/4 | 2 1/2" | Cast Iron | 14.5° | 15 | 1 1/2" | 2" | 1 1/4" | Bored to Size External Tooth | €256.09 | |
 |
S616BS 1 1/8 | 2.667" | Cast Iron | 14.5° | 16 | 1 1/2" | 2.156" | 1 1/8" | Bored to Size External Tooth | €284.85 | |
 |
S611BS 1 | 2" | Steel | 14.5° | 11 | 1 1/2" | 1 1/2" | 1" | Bored to Size External Tooth | €200.45 | |
 |
S612BS 1 | 2" | Steel | 14.5° | 12 | 1 1/2" | 1 1/2" | 1" | Bored to Size External Tooth | €200.45 | |
 |
S615BS 1 | 2 1/2" | Steel | 14.5° | 15 | 1 1/2" | 2" | 1" | Bored to Size External Tooth | €256.09 | |
|
S615BS 1 1/8 | 2 1/2" | Cast Iron | 14.5° | 15 | 1 1/2" | 2" | 1 1/8" | Bored to Size External Tooth | €256.09 |
