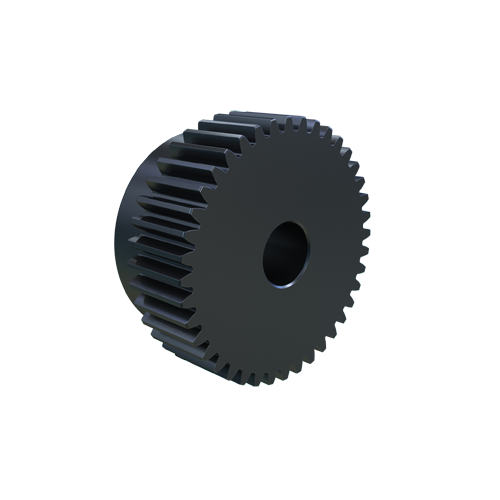

MARTIN SPROCKET TS1040 Spur Gear, 10 Diametral Pitch, 4 Inch Pitch Dia., Reborable, Steel
Item: AK3AJRModel: TS1040
7 In Stock
4"
Ships within 2 days via
€213.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 1" to 2 1/8" |
| Diametral Pitch | 10 |
| Face Width | 1 1/4" |
| Hub Dia. | 3 1/2" |
| Hub Projection | 7/8" |
| Hub Type | B |
| Length | 2 1/8" |
| Material | Steel |
| No. Of Teeth | 40 |
| Outside Dia. | 4 1/5" |
| Pitch Dia. | 4" |
| Pressure Angle | 20° |
| Type | External Tooth Reborable |
Shipping Info:
| Ship weight (kg) | 2.88 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 10.67 |
| Ship width (cm) | 10.67 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Pressure Angle | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S1011 | 1 1/5" | 14.5° | 11 | 1" | 0.938" | 5/8" | Reborable | 5/8" | €88.29 | |
 |
S1012 | 1 1/5" | 14.5° | 12 | 1" | 0.938" | 5/8" | External Tooth Reborable | 5/8" | €88.29 | |
 |
S1014 | 1 2/5" | 14.5° | 14 | 1" | 1 1/8" | 5/8" | External Tooth Reborable | 5/8" | €94.55 | |
 |
S1015 | 1 1/2" | 14.5° | 15 | 1" | 1.219" | 3/4" | External Tooth Reborable | 5/8" | €99.86 | |
 |
S1016 | 1 3/5" | 14.5° | 16 | 1" | 1.313" | 3/4" | External Tooth Reborable | 5/8" | €103.09 | |
 |
S1018 | 1 4/5" | 14.5° | 18 | 1" | 1.531" | 3/4" to 7/8" | External Tooth Reborable | 5/8" | €110.73 | |
 |
S1020 | 2" | 14.5° | 20 | 1" | 1.719" | 3/4" to 1" | External Tooth Reborable | 5/8" | €119.46 |
