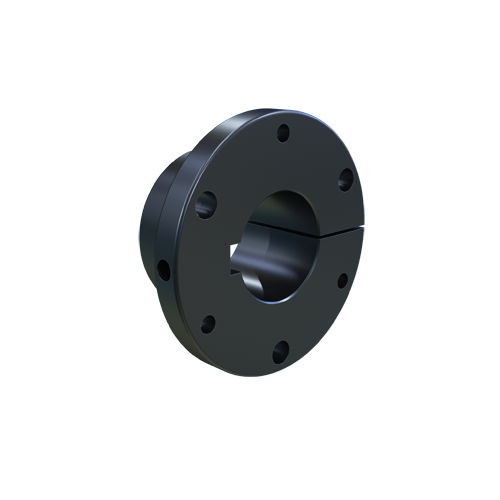

MARTIN SPROCKET SF 1 15/16 Quick Detachable Bushing, 1.938 Inch Bore, 2.063 Inch Length, Steel
1 15/16"
Get it by Wednesday, Dec 17
€73.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Quick Detachable Bushing |
| Bolt Circle Diameter | 3 7/8" |
| Bore Diameter | 1 15/16" |
| Bore Size | 1 15/16" |
| Flange Diameter | 4 5/8" |
| Flange Thickness | 0.563" |
| Keyway Size | 1/2" x 1/4" |
| Material | Steel |
| Number Of Bolt Holes | 3 |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 1.53 |
| Ship length (cm) | 5.23 |
| Country of Origin | US |
Product Variants
| Product | Model | Flange Thickness | Bore Size | Keyway Size | Type | Bushing Size | Price | |
|---|---|---|---|---|---|---|---|---|
 |
SF 1/2 | 9/16" | 1/2" | 1/8" x 1/16" | Standard | - | €85.75 | |
 |
SF 9/16 | 0.562" | 9/16" | 1/8" x 1/16" | Standard | SF | €85.75 | |
 |
SF 5/8 | 9/16" | 5/8" | 3/16" x 3/32" | Standard | - | €73.50 | |
 |
SF 11/16 | 0.563" | 11/16" | 3/16" x 3/32" | Standard | SF | €73.50 | |
 |
SF 3/4 | 0.563" | 3/4" | 3/16" x 3/32" | Standard | - | €73.50 | |
 |
SF 13/16 | 0.563" | 13/16" | 3/16" x 3/32" | Standard SF | SF | €85.75 | |
 |
SF 7/8 | 0.563" | 7/8" | 3/16" x 3/32" | Standard | - | €73.50 |
