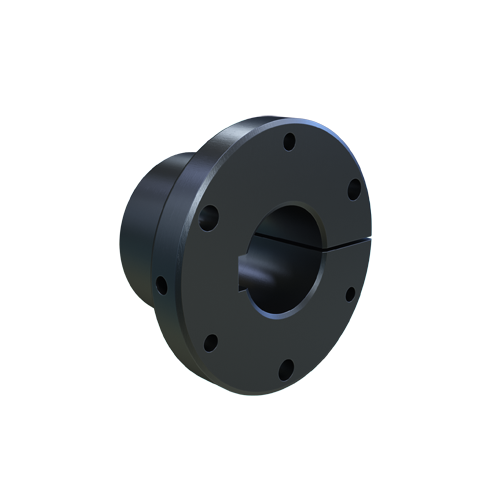

MARTIN SPROCKET SD 32MM Quick Detachable Bushing, 1.260 Inch Bore, 10 x 3.3 Inch Key, 1.813 Inch Length, Steel
Item: AJ9TQDModel: SD 32MM
7 In Stock
32 mm
Ships within 2 days via
€54.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Detachable Bushing |
| Barrel Dia. | 2.187" |
| Bolt Circle Dia. | 2.687" |
| Bore Dia. | 32 mm |
| Bore Size | 32 mm |
| Bushing Size | SD |
| Flange Dia. | 3.187" |
| Flange Thickness | 1/2" |
| Hub Dia. | 3 1/2" |
| Key Way Size | 3.3 mm x 10 mm |
| Length | 1.813" |
| Material | Steel |
| No. Of Bolt Holes | 3 |
| Screw Size | 1/4"-20 x 1 7/8" |
Shipping Info:
| Ship weight (kg) | 0.74 |
| Ship length (cm) | 4.6 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Bolt Circle Dia. | Bore Dia. | Type | Bore Size | Key Way Size | Flange Dia. | Hub Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SD 1/2 | Steel | 2.687" | 1/2" | Standard | 1/2" | 1/8" x 1/16" | 3.187" | 3 1/2" | €54.05 | |
 |
SD 5/8 | Steel | 2.687" | 5/8" | Standard | 5/8" | 3/16" x 3/32" | 3.188" | 3 1/2" | €54.05 | |
 |
SD 11/16 | Cast Iron | 2.688" | 11/16" | Standard | 11/16" | 3/16" x 3/32" | 3.188" | 3.81" | €54.05 | |
|
SD 3/4 | Steel | 2.687" | 3/4" | Standard | 3/4" | 3/16" x 3/32" | 3.187" | 3 1/2" | €54.05 | |
|
SD 7/8 | Cast Iron | 2.688" | 7/8" | Standard | 7/8" | 3/16" x 3/32" | 3.188" | 3.81" | €54.05 | |
 |
SD 15/16 | Cast Iron | 2.688" | 15/16" | Standard | 15/16" | 1/4" x 1/8" | 3.188" | 3.81" | €54.05 | |
 |
SD 1 | Steel | 2.687" | 1" | Standard | 1" | 1/4" x 1/8" | 3.187" | 3 1/2" | €54.05 |
