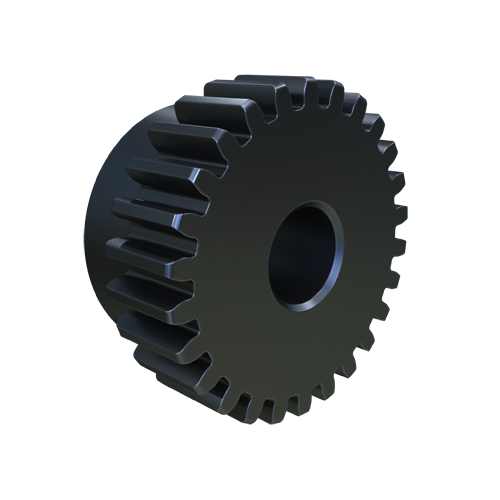

MARTIN SPROCKET S1626 Spur Gear, 16 Diametral Pitch, 1.625 Inch Pitch Dia., Reborable, Steel
Item: AK2YKHModel: S1626
7 In Stock
1.625"
Ships within 2 days via
€94.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 1/2" to 7/8" |
| Diametral Pitch | 16 |
| Face Width | 1/2" |
| Hub Dia. | 1.438" |
| Hub Projection | 1/2" |
| Hub Type | B |
| Length | 0.938" |
| Material | Steel |
| No. Of Teeth | 26 |
| Outside Dia. | 1 3/4" |
| Pitch Dia. | 1 5/8" |
| Pressure Angle | 14.5° |
| Type | External Tooth Reborable |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 2.39 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 4.45 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Pressure Angle | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S1611 | 3/4" | 14.5° | 11 | 1/2" | 0.563" | 3/8" | External Tooth Reborable | 0.438" | €55.31 | |
 |
S1612 | 3/4" | 14.5° | 12 | 1/2" | 0.563" | 3/8" | External Tooth Reborable | 0.438" | €55.31 | |
 |
S1613 | 0.812" | 14.5° | 13 | 1/2" | 5/8" | 3/8" | Reboreable | 0.438" | €56.73 | |
 |
S1614 | 7/8" | 14.5° | 14 | 1/2" | 0.688" | 3/8" | External Tooth Reborable | 0.438" | €61.75 | |
 |
S1615 | 0.937" | 14.5° | 15 | 1/2" | 3/4" | 1/2" | External Tooth Reborable | 0.438" | €64.52 | |
 |
S1616 | 1" | 14.5° | 16 | 1/2" | 0.813" | 1/2" | External Tooth Reborable | 0.438" | €69.50 | |
 |
S1618 | 1 1/8" | 14.5° | 18 | 1/2" | 0.938" | 1/2" | External Tooth Reborable | 0.438" | €74.45 |
