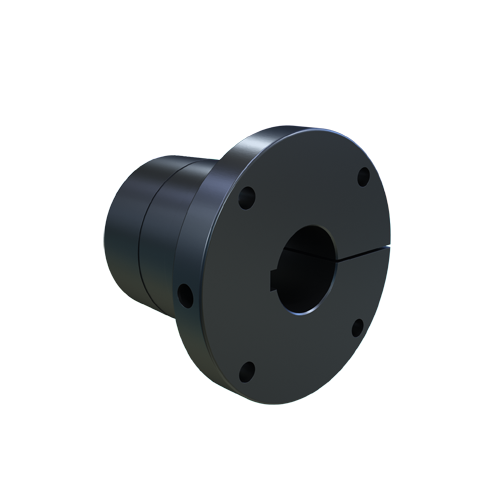

MARTIN SPROCKET N 3 3/16 Quick Detachable Bushing, 3.188 Inch Bore, 8.125 Inch Length, Cast Iron
3 3/16"
Get it by Friday, Aug 28
€1,244.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Quick Detachable Bushing |
| Barrel Dia. | 7" |
| Bolt Circle Dia. | 8 1/2" |
| Bore Dia. | 3 3/16" |
| Bore Size | 3 3/16" |
| Bushing Size | N |
| Flange Dia. | 10" |
| Flange Thickness | 1 1/2" |
| Hub Dia. | 12" |
| Key Way Size | 3/4" x 3/8" |
| Length | 8 1/8" |
| Material | Cast Iron |
| No. Of Bolt Holes | 4 |
| Screw Size | 7/8"-9 x 8" |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 36.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Bore Size | Key Way Size | Material | Type | Bolt Circle Dia. | Bushing Size | No. Of Bolt Holes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
N 2 15/16 | 2 15/16" | 2 15/16" | 3/4" x 3/8" | Cast Iron | Standard | 8 1/2" | N | 4 | €1,244.04 | |
 |
N 3 7/16 | 3 7/16" | 3 7/16" | 7/8" x 7/16" | Cast Iron | Standard | 8 1/2" | N | 4 | €1,244.04 | |
 |
N 3 1/2 | 3 1/2" | 3 1/2" | 7/8" x 7/16" | Cast Iron | Standard | 8 1/2" | N | 4 | €1,244.04 | |
|
N 3 7/8 | 3 7/8" | 3 7/8" | 1" x 1/2" | Cast Iron | Standard | 8 1/2" | N | 4 | €1,244.04 | |
 |
N 3 15/16 | 3 15/16" | 3 15/16" | 1" x 1/2" | Cast Iron | Standard | 8 1/2" | N | 4 | €1,244.04 | |
|
N 4 | 4" | 4" | 1" x 1/2" | Cast Iron | Standard | 8 1/2" | N | 4 | €1,244.04 | |
 |
N 4 1/8 | 4 1/8" | 4 1/8" | 1" x 1/2" | Cast Iron | Standard | 8 1/2" | N | 4 | €1,244.04 |
