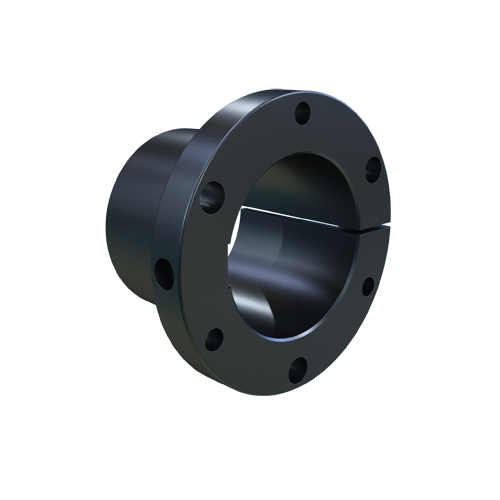

MARTIN SPROCKET J 4 7/16 Quick Detachable Bushing, 4.438 Inch Bore, 1 x 1/8 Inch Key, Ductile Iron
4 7/16"
Get it by Friday, Aug 28
€354.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Quick Detachable Bushing |
| Barrel Dia. | 5.148" |
| Bolt Circle Dia. | 6 1/4" |
| Bore Dia. | 4 7/16" |
| Bore Size | 4 7/16" |
| Flange Dia. | 7 1/4" |
| Flange Thickness | 1" |
| Hub Dia. | 9" |
| Key Way Size | 1" x 1/8" |
| Length | 4 1/2" |
| Material | Ductile Iron |
| No. Of Bolt Holes | 3 |
| Screw Size | 5/8"-11 x 4 1/2" |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 5.99 |
| Ship length (cm) | 11.43 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Bore Dia. | Bore Size | Key Way Size | Bolt Circle Dia. | Type | No. Of Bolt Holes | Screw Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
J 1 7/16 | Cast Iron | 1 7/16" | 1 7/16" | 3/8" x 3/16" | 6 1/4" | Standard | 3 | 5/8"-11 x 4 1/2" | €354.78 | |
 |
J 1 1/2 | Cast Iron | 1 1/2" | 1 1/2" | 3/8" x 3/16" | 6 1/4" | Standard | 3 | 5/8"-11 x 4 1/2" | €354.78 | |
|
J 1 5/8 | Cast Iron | 1 5/8" | 1 5/8" | 3/8" x 3/16" | 6 1/4" | Standard | 3 | 5/8"-11 x 4 1/2" | €354.78 | |
 |
J 1 11/16 | Cast Iron | 1 11/16" | 1 11/16" | 3/8" x 3/16" | 6 1/4" | Standard | 3 | 5/8"-11 x 4 1/2" | €354.78 | |
 |
J 1 3/4 | Cast Iron | 1 3/4" | 1 3/4" | 3/8" x 3/16" | 6 1/4" | Standard | 3 | 5/8"-11 x 4 1/2" | €354.78 | |
 |
J 1 7/8 | Cast Iron | 1 7/8" | 1 7/8" | 1/2" x 1/4" | 6 1/4" | Standard | 3 | 5/8"-11 x 4 1/2" | €354.78 | |
 |
J 1 15/16 | Cast Iron | 1 15/16" | 1 15/16" | 1/2" x 1/4" | 6 1/4" | Standard | 3 | 5/8"-11 x 4 1/2" | €354.78 |
