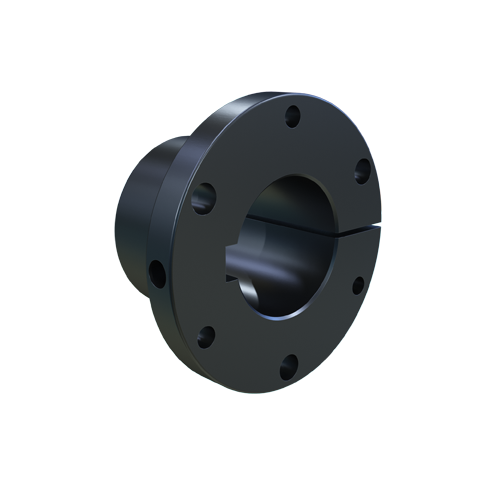

MARTIN SPROCKET F 3 1/8 Quick Detachable Bushing, 3.125 Inch Bore, 3.625 Inch Length, Cast Iron
3 1/8"
Get it by Wednesday, Aug 26
€276.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Quick Detachable Bushing |
| Barrel Dia. | 4.437" |
| Bolt Circle Dia. | 5 5/8" |
| Bore Dia. | 3 1/8" |
| Bore Size | 3 1/8" |
| Flange Dia. | 6 5/8" |
| Flange Thickness | 13/16" |
| Hub Dia. | 7 3/4" |
| Key Way Size | 3/4" x 3/8" |
| Length | 3 5/8" |
| Material | Cast Iron |
| No. Of Bolt Holes | 3 |
| Screw Size | 9/16"-12 x 3 5/8" |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 5.22 |
| Ship length (cm) | 9.22 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Bore Dia. | Key Way Size | Bore Size | Bolt Circle Dia. | Type | No. Of Bolt Holes | Screw Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
F 1 | Cast Iron | 1" | 1/4" x 1/8" | 1" | 5 5/8" | Standard | 3 | 9/16"-12 x 3 5/8" | €276.21 | |
 |
F 1 1/8 | Cast Iron | 1 1/8" | 1/4" x 1/8" | 1 1/8" | 5 5/8" | Standard | 3 | 9/16"-12 x 3 5/8" | €276.21 | |
 |
F 1 3/16 | Cast Iron | 1 3/16" | 1/4" x 1/8" | 1 3/16" | 5 5/8" | Standard | 3 | 9/16"-12 x 3 5/8" | €276.21 | |
 |
F 1 1/4 | Cast Iron | 1 1/4" | 1/4" x 1/8" | 1 1/4" | 5 5/8" | Standard | 3 | 9/16"-12 x 3 5/8" | €276.21 | |
 |
F 1 5/16 | Cast Iron | 1 5/16" | 5/16" x 5/32" | 1 5/16" | 5 5/8" | Standard | 3 | 9/16"-12 x 3 5/8" | €276.21 | |
|
F 1 3/8 | Cast Iron | 1 3/8" | 5/16" x 5/32" | 1 3/8" | 5 5/8" | Standard | 3 | 9/16"-12 x 3 5/8" | €276.21 | |
|
F 1 7/16 | Cast Iron | 1 7/16" | 3/8" x 3/16" | 1 7/16" | 5 5/8" | Standard | 3 | 9/16"-12 x 3 5/8" | €276.21 |
