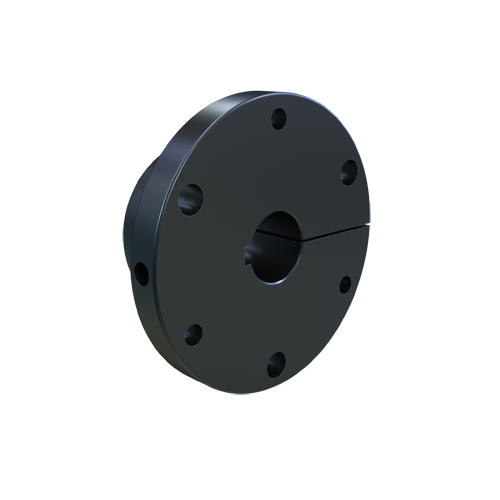

MARTIN SPROCKET E 1 7/16 Quick Detachable Bushing, 1.438 Inch Bore, 2.625 Inch Length, Cast Iron
Item: AJ9QZTModel: E 1 7/16
7 In Stock
1 7/16"
Ships within 2 days via
€179.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Detachable Bushing |
| Barrel Dia. | 3.834" |
| Bolt Circle Dia. | 5" |
| Bore Dia. | 1 7/16" |
| Bore Size | 1 7/16" |
| Bushing Size | E |
| Flange Dia. | 6" |
| Flange Thickness | 3/4" |
| Hub Dia. | 7 1/2" |
| Key Way Size | 3/8" x 3/16" |
| Length | 2 5/8" |
| Material | Cast Iron |
| No. Of Bolt Holes | 3 |
| Screw Size | 1/2"-13 x 2 3/4" |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 4.91 |
| Ship length (cm) | 6.68 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Bore Dia. | Type | Key Way Size | Bore Size | Bolt Circle Dia. | No. Of Bolt Holes | Flange Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E 7/8 | Cast Iron | 7/8" | Standard | 3/16" x 3/32" | 7/8" | 5" | 3 | 3/4" | €154.14 | |
 |
E 15/16 | Cast Iron | 0.938" to 3.5" | Standard QD E | 1/4" x 1/8" | 15/16" | 5" | 3 | 3/4" | €154.14 | |
 |
E 1 | Cast Iron | 1" | Standard | 1/4" x 1/8" | 1" | 5" | 3 | 3/4" | €154.14 | |
 |
E 1 1/16 | Cast Iron | 1 1/16" | Standard | 1/4" x 1/8" | 1 1/16" | 5" | 3 | 3/4" | €154.14 | |
 |
E 1 1/8 | Cast Iron | 1 1/8" | Standard | 1/4" x 1/8" | 4 1/16" | 5" | 3 | 3/4" | €154.14 | |
 |
E 1 3/16 | Cast Iron | 1 3/16" | Standard | 1/4" x 1/8" | 1 3/16" | 5" | 3 | 3/4" | €154.14 | |
 |
E 1 1/4 | Cast Iron | 1 1/4" | Standard | 1/4" x 1/8" | 3 1/16" | 5" | 3 | 3/4" | €179.83 |
