MARTIN SPROCKET B1090-6 Bevel Gear, 10 Diametral Pitch, 9 Inch Pitch Dia., Steel
Item: AK2ZNPModel: B1090-6
7 In Stock
Ships within 2 days via
€586.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bevel Gear |
| Bore Dia. | 1" to 1.627" |
| Diametral Pitch | 10 |
| Face Width | 0.86" |
| Gear Ratio | 6:1 |
| Gear Type | Bevel |
| Hub Dia. | 2 3/4" |
| Hub Projection | 1.313" |
| Hub Type | No Screws |
| Length | 1 13/16" |
| Material | Steel |
| No. Of Teeth | 90 |
| Outside Dia. | 9.016" |
| Pitch Dia. | 9" |
| Pressure Angle | 20° |
| Type | Plain Reborable |
Shipping Info:
| Ship weight (kg) | 4.37 |
| Ship height (cm) | 4.6 |
| Ship length (cm) | 22.91 |
| Ship width (cm) | 22.91 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Face Width | Outside Dia. | Hub Dia. | Hub Projection | Material | Gear Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
B1025-2 | 0.75" to 1.126" | 2 1/2" | 0.7" | 2.739" | 2" | 3/4" | Steel | 2:1 | €191.79 | |
 |
B1060-3 | 0.875" to 1.815" | 6" | 0.78" | 6.035" | 3" | 1 3/8" | Cast Iron | 3:1 | €362.54 | |
 |
B1020-3 | 0.75" to 0.939" | 2" | 0.78" | 2.265" | 1 3/4" | 1.333" | Steel | 3:1 | €202.53 | |
 |
B1060-4 | 0.875" to 1.439" | 6" | 18/25" | 6.026" | 2 1/2" | 1 1/8" | Steel | 4:1 | €373.28 | |
 |

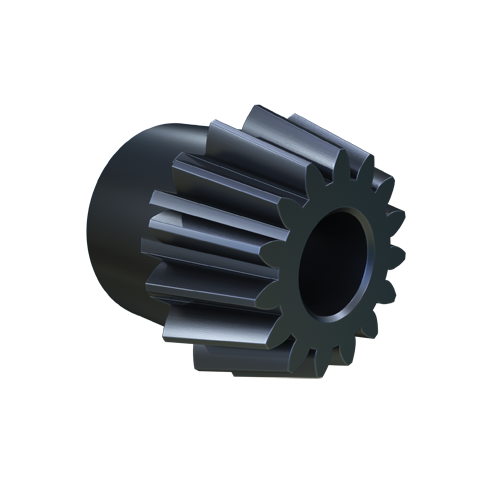

B1015-4 | 0.625" to 0.751" | 1 1/2" | 18/25" | 1.776" | 1.438" | 0.866" | Steel | 4:1 | €171.39 | |
 |
B1015-6 | 0.625" to 0.751" | 1 1/2" | 0.86" | 1.784" | 1 7/16" | 0.994" | Steel | 6:1 | €159.89 |
