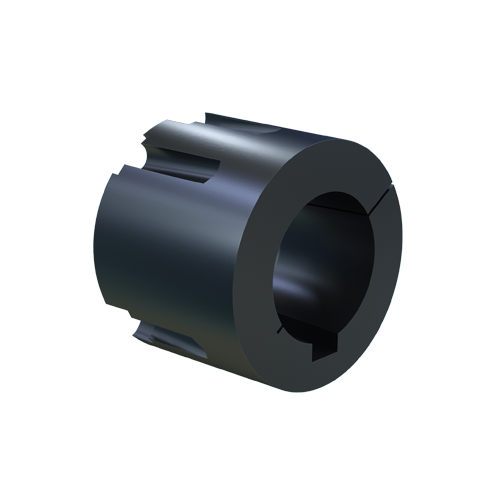

MARTIN SPROCKET 5050 3 13/16 Taper Bushing, 3.813 Inch Bore, 3/4 x 3/8 Inch Key, 5 Inch Length, Cast Iron
3 13/16"
Get it by Tuesday, Sep 1
€522.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Taper Bushing |
| Barrel Dia. | 7" |
| Bolt Circle Dia. | 6 18/25" |
| Bore Dia. | 3 13/16" |
| Class | Class 20, Class 30 |
| Hub Dia. | 11 1/2", 10 1/2" |
| Key Way Size | 3/4" x 3/8" |
| Length | 5" |
| Material | Cast Iron |
| No. Of Bolt Holes | 3 |
| Screw Size | 7/8"-9 x 2 1/4" |
| Suitable For Use With | Taper Bushed Parts |
| Taper | 8° |
| Torque | 126000 lbs.-in. |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Key Way Size | Screw Size | Hub Dia. | Material | Type | Bolt Circle Dia. | Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5050 2 7/16 | 2 7/16" | 5/8" x 5/16" | 7/8"-9 x 2 1/4" | 11 1/2", 10 1/2" | Cast Iron | Standard | 6 18/25" | 126000 lbs.-in. | €522.43 | |
 |
5050 2 15/16 | 2 15/16" | 3/4" x 3/8" | 7/8"-9 x 2 1/4" | 11 1/2", 10 1/2" | Cast Iron | Standard | 6 18/25" | 126000 lbs.-in. | €522.43 | |
 |
5050 3 3/8 | 3 3/8" | 7/8" x 7/16" | 7/8" x 2 1/4" | 10 1/2" to 11 1/2" | Cast Iron | Standard | 6 18/25" | 126000 lbs.-in. | €522.43 | |
|
5050 3 7/16 | 3 7/16" | 7/8" x 7/16" | 7/8"-9 x 2 1/4" | 11 1/2", 10 1/2" | Cast Iron | Standard | 6 18/25" | 126000 lbs.-in. | €522.43 | |
 |
5050 3 5/8 | 3 5/8" | 7/8" x 7/16" | 7/8"-9 x 2 1/4" | 11 1/2", 10 1/2" | Cast Iron | Standard | 6 18/25" | 126000 lbs.-in. | €522.43 | |
|
5050 3 7/8 | 3 7/8" | 1" x 1/2" | 7/8"-9 x 2 1/4" | 11 1/2", 10 1/2" | Cast Iron | Standard | 6 18/25" | 126000 lbs.-in. | €522.43 | |
 |
5050 3 15/16 | 3 15/16" | 1" x 1/2" | 7/8"-9 x 2 1/4" | 11 1/2", 10 1/2" | Cast Iron | Standard | 6 18/25" | 126000 lbs.-in. | €522.43 |
