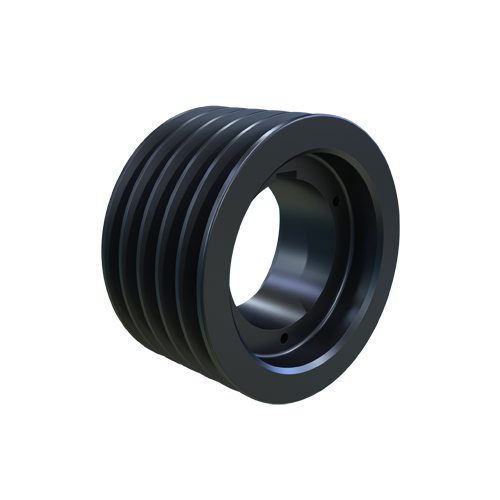

MARTIN SPROCKET 5 B 70 R Sheave, MST, 4 Inch Face Width, 7.350 Inch Outside Dia., 7 Inch Pitch Dia., Cast Iron
Get it by Tuesday, Sep 1
€328.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Belt Cross Section | B |
| Bushing Size | R1 |
| Bushing Style | Mst |
| Face Width | 4" |
| Material | Cast Iron |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| No. Of Grooves | 5 |
| Outside Dia. | 7.35" |
| Pitch Dia. | 7" |
| Sheave Construction | Web |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 18.67 |
| Ship width (cm) | 18.67 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Type | Material | Pitch Dia. | Bore Dia. | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
5 B 124 Q | 12 3/4" | - | Cast Iron | 12 2/5" | - | 4" | €670.69 | |
 |
5 B 250 Q | 25.35" | - | Cast Iron | 25" | - | 4" | €1,698.31 | |
 |
5 B 54 Q | 5 3/4" | - | Cast Iron | 5 2/5" | - | 4" | €311.95 | |
 |
5 B 136 R | 13.95" | Type K Arm, Spoke | Cast Iron | 13 3/5" | 1 1/8" to 3 3/4" | 4" | €660.67 | |
 |
5 B 34 P | 3 3/4" | - | Cast Iron | 3 2/5" | - | 4" | €257.53 | |
 |
5 B 48 P | 5.15" | - | Cast Iron | 4 4/5" | - | 4" | €306.79 | |
 |
5 B 136 Q | 13.95" | Type J Arm, Spoke | Cast Iron | 13 3/5" | 1" to 2 5/8" | 4" | €769.09 |
