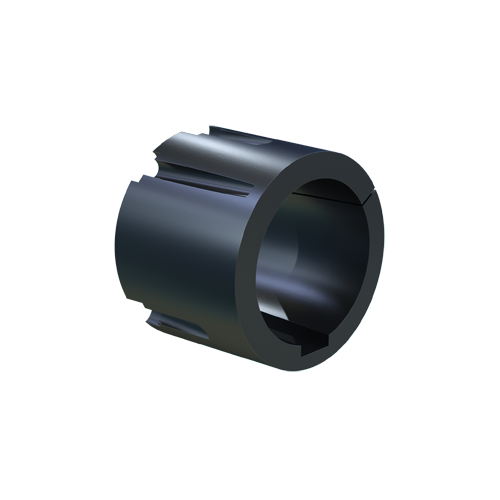

MARTIN SPROCKET 3535 3 7/16 Taper Bushing, 3.438 Inch Bore, 7/8 x 1/4 Inch Key, 3.5 Inch Length, Cast Iron
Item: AJ9VYXModel: 3535 3 7/16
7 In Stock
3 7/16"
Ships within 2 days via
€188.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Taper Bushing |
| Barrel Dia. | 5" |
| Bolt Circle Dia. | 4.83" |
| Bore Dia. | 3 7/16" |
| Bore Size | 3 7/16" |
| Hub Dia. | 7" to 7 3/4" |
| Key Way Size | 7/8" x 1/4" |
| Length | 3 1/2" |
| Material | Cast Iron |
| No. Of Bolt Holes | 3 |
| Screw Size | 1/2" x 1 1/2" |
| Taper | 8° |
| Torque | 44800 lbs.-in. |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 3.56 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Key Way Size | Screw Size | Hub Dia. | Bore Size | Material | Type | Bolt Circle Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3535 1 9/16 | 1 9/16" | 3/8" x 3/16" | 1/2"-13 x 1 1/2" | 7 3/4", 7" | - | Cast Iron | Standard | 4.83" | €161.40 | |
 |
3535 1 3/16 | 1 3/16" | 1/4" x 1/8" | 1/2"-13 x 1 1/2" | 7 3/4", 7" | 1 3/16" | Cast Iron | Standard | 4.83" | €161.40 | |
 |
3535 1 1/4 | 1 1/4" | 1/4" x 1/8" | 1/2"-13 x 1 1/2" | 7 3/4", 7" | 1 1/4" | Cast Iron | Standard | 4.83" | €161.40 | |
 |
3535 1 3/8 | 1 3/8" | 5/16" x 5/32" | 1/2"-13 x 1 1/2" | 7 3/4", 7" | 1 3/8" | Cast Iron | Standard | 4.83" | €161.40 | |
 |
3535 1 7/16 | 1 7/16" | 3/8" x 3/16" | 1/2"-13 x 1 1/2" | 7 3/4", 7" | 1 7/16" | Cast Iron | Standard | 4.83" | €161.40 | |
|
3535 1 1/2 | 1 1/2" | 3/8" x 3/16" | 1/2"-13 x 1 1/2" | 7 3/4", 7" | 1 1/2" | Cast Iron | Standard | 4.83" | €161.40 | |
|
3535 1 5/8 | 1 5/8" | 3/8" x 3/16" | 1/2"-13 x 1 1/2" | 7 3/4", 7" | 1 5/8" | Cast Iron | Standard | 4.83" | €161.40 |
