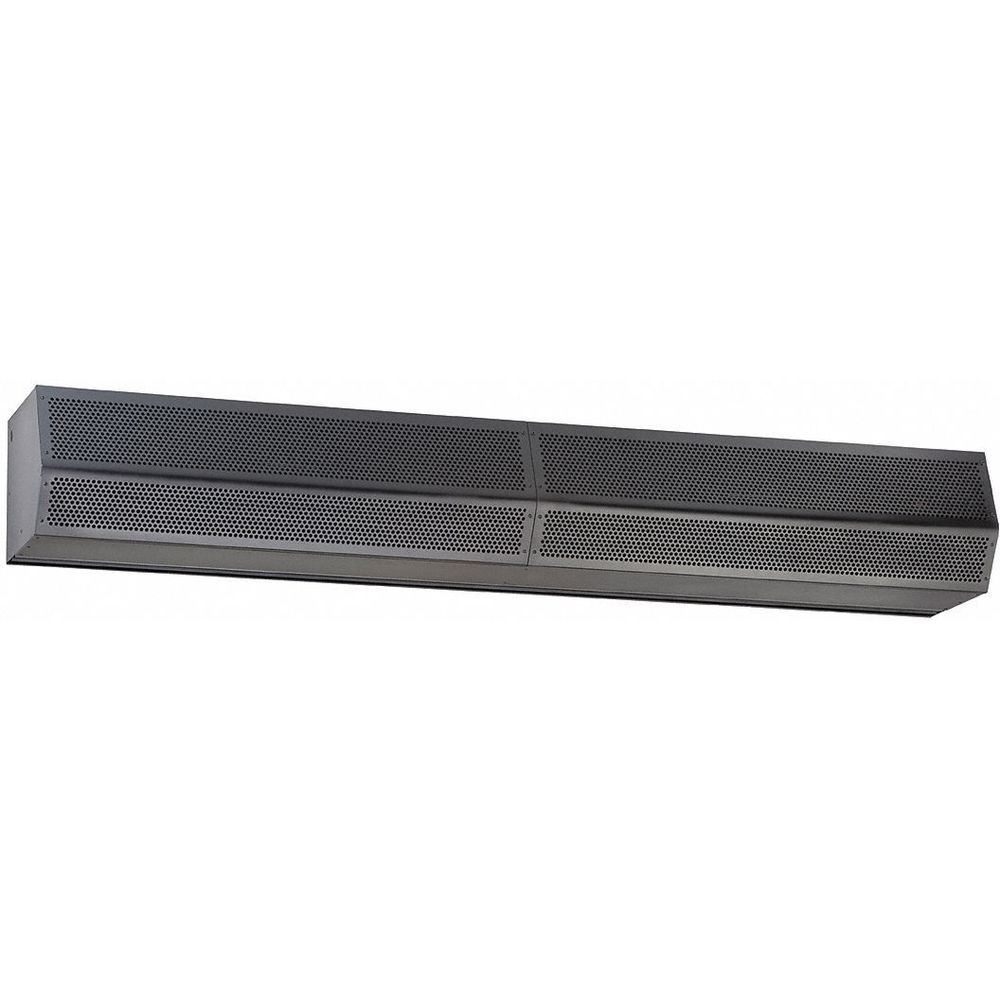

MARS AIR SYSTEMS STD260-2UA-OB Air Curtain, 12 Feet Max. Mount Ht., 68 dBA At 10 Feet, 2550 Fpm
Get it by Tuesday, Dec 23
10.00% off
€1,975.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Curtain |
| Air Velocity | 2550 FPM |
| Air Volume | 2700 CFM |
| Control Type | Hard Wiring |
| Dba @ 10 Feet | 68 |
| Dba @ 10 Ft. | 68 dBA |
| Depth | 12.688" |
| Drive Type | Direct Drive |
| Finish | Galvanized, Powder Coat |
| For Opening Width | 5 ft. |
| Frequency | 60 Hz |
| Full Load Current | 10.2A |
| Grille Material | Steel |
| Hazardous Location Specification | Class I Group D |
| Heated/not Heated | Not Heated |
| Height | 10.688" |
| Hepa Air Cleaning | No |
| Housing Color | Black |
| Housing Material | Steel |
| Max. Air Velocity | 6737 FPM |
| Max. Air Volume | 2700 CFM |
| Max. Amps | 10.2A |
| Max. Door Width | 12 ft. |
| Max. Mounting Height | 12 ft. |
| Max. Mounting Height - Insects | 10 ft. |
| Max. Rpm | 1725 RPM |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp Per Motor | 1/6 hp |
| Motor Type | Permanent Split Capacitor |
| Nameplate Voltage | 115V AC |
| Nozzle Width | 60" |
| Number Of Motors | 2 |
| Number Of Speeds | 1 |
| Overall Depth | 13" |
| Overall Height | 10 5/8" |
| Overall Width | 60" |
| Phase | 1 |
| Power Consumption | 940 W |
| Profile Type | Standard Profile |
| Requires | Hard Wiring |
| Sanitation Certified | No |
| Series | Std2 (Standard 2) |
| Standards | Csa, Ul Listed |
| Ultraviolet Air Cleaning | No |
| Washdown | No |
| Width | 60" |
Shipping Info:
| Ship weight (kg) | 27 |
| Ship height (cm) | 26.99 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 152.4 |
| Country of Origin | US |
