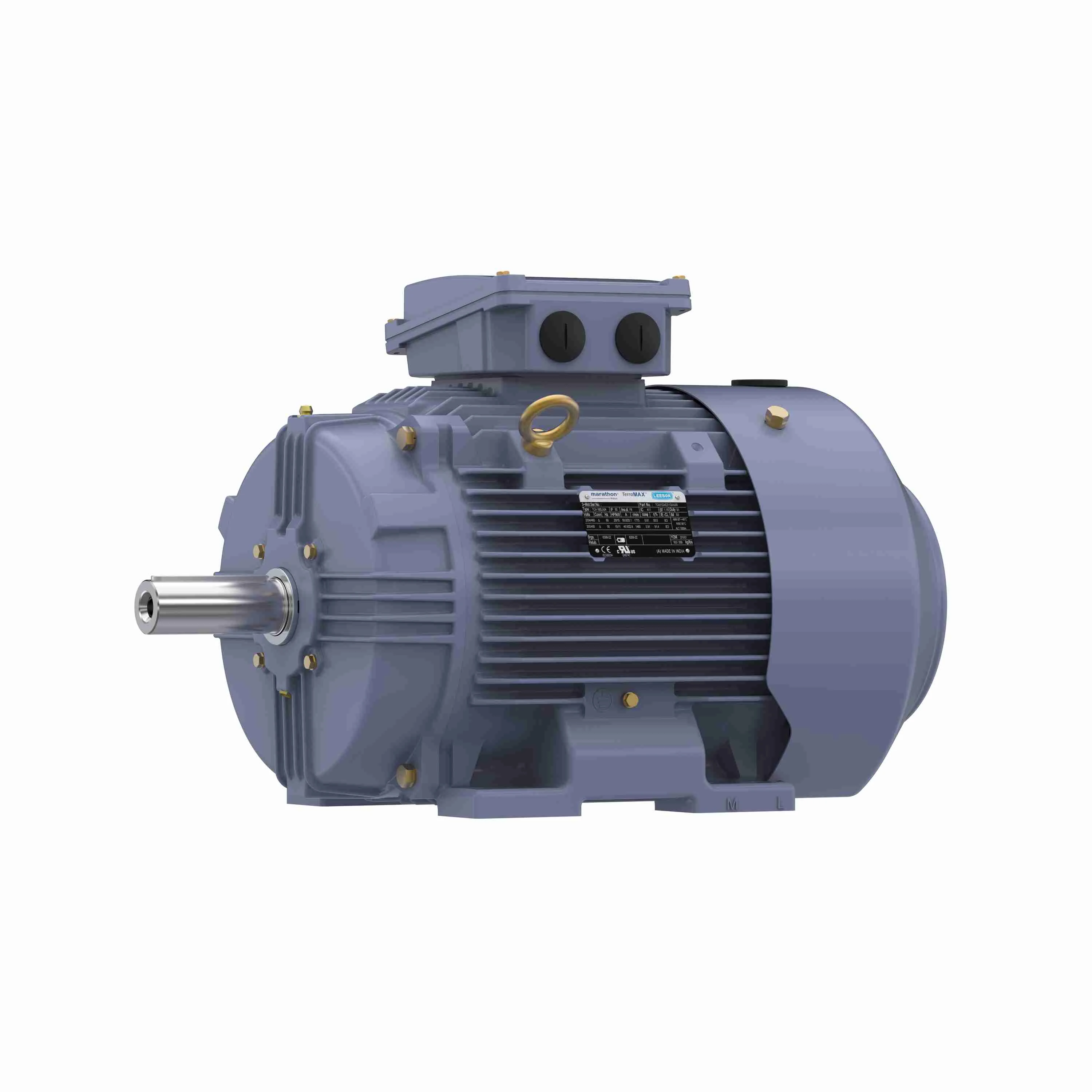

MARATHON MOTORS TCA7P53AE211GAA009 R332B Cast Iron Motor, 10/7.50 HP, 3 Phase, 60/50 Hz, 230/460 and 200/400V, 1200 and 1000 RPM
Get it by Tuesday, Sep 1
€3,468.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Application | General Application |
| Bearing Type | Ball |
| Bearings | Ball |
| Cc Number | CC003A |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 91% |
| Efficiency Group | Premium |
| Frame | 160M |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Full Load Amps | 26.4/13.2A |
| Full Load Amps @ 50 Hz | 23.4/11.7A |
| Hp | 10 hp |
| Hp @ 50 Hz | 10 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 512 mm |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1180 RPM |
| Nema Design | N |
| No. Of Speed | 1 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91% |
| Number | Cc003A |
| Overall Length | 622 mm |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 42 mm |
| Shaft Length | 110 mm |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 141.89 |
| Ship height (cm) | 65 |
| Ship length (cm) | 78 |
| Ship width (cm) | 46.99 |
| Country of Origin | IN |
Product Variants
| Product | Model | Voltage | Phase | Frequency | Full Load Amps | Motor Type | Service Factor | Hp | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U3E3DCR | 230/460V AC | 3 | 50/60 Hz | 9.1/4.5A | Three Phase | 1.25 | 3 hp | Face | €1,167.75 | |
 |
2TJ12 | 230V AC | 1 | 60 Hz | 22A | Capacitor Start, Run | 1 | 5 hp | Rigid Base | €1,798.91 | |
 |
182TTFBD6079 | 230/460V AC | 3 | 60 Hz | 4.6/2.3A | Three Phase | 1.15 | 1 1/2 hp | Face | €982.77 | |
 |
5GD60 | 115/208-230V AC | 1 | 60 Hz | 11.4/5.7A | Capacitor Start | 1.15 | 3/4 hp | Face | €545.36 | |
 |
5K596 | 115V AC | 1 | 60 Hz | 8A | Split Phase | 1 | 1/2 hp | Rigid Base | €404.69 | |
|
5K618 | 115V AC | 1 | 60 Hz | 7.2/5A | Split Phase | 1 | 1/4 hp, 1/2 hp | Rigid Base | €540.29 | |
 |
5K968 | 230V AC | 1 | 60 Hz | 23A | Capacitor Start, Run | 1 | 5 hp | Rigid Base | €2,187.03 |
