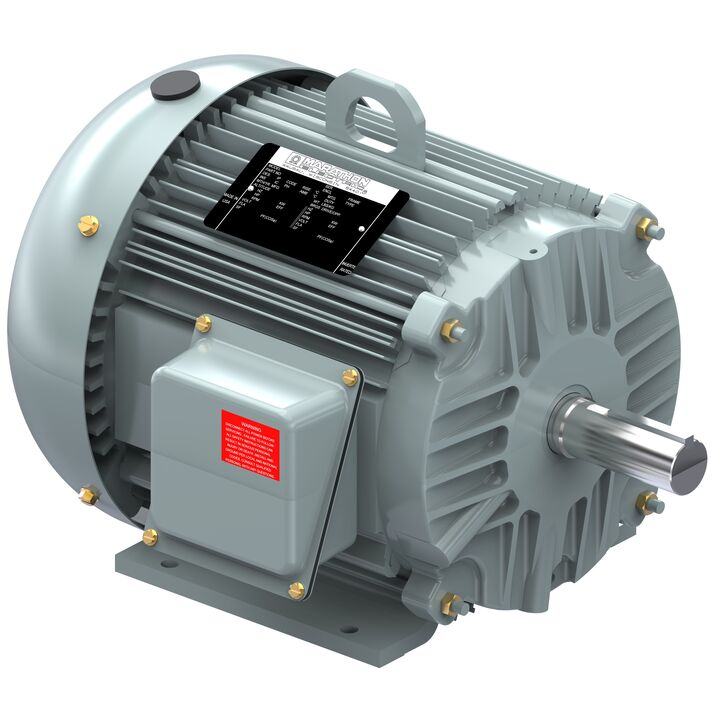

MARATHON MOTORS LM34145 AF8P2T61 General Purpose Motor, 2 HP, 3 Phase, 60 Hz, 230/460V, 900 RPM
Get it by Tuesday, Feb 24
€2,024.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 24A |
| Amps Rating | 10/5A |
| Application Type | General Purpose Ac Motors |
| Assembly/box Mounting | F1, F2 Capable |
| Code | H |
| Curvepoint | Locked Rotor |
| Design Code | B |
| Drive End Bearing Size | 6208 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 213T |
| Frame Length | 9 1/2" |
| Frame Material | Aluminum |
| Frame Size | 213T |
| Frame Suffix | T |
| Frequency | 60 Hz |
| Full Load Amps | 10/5A |
| Grease Type | Polyrex EM |
| Height | 12.46" |
| Hp | 2 hp |
| Insulation Class | Class F |
| Ip Code | 43 |
| Kva Code | H |
| Kw | 1.5 kW |
| Length | 18 21/25" |
| Lubrication | Polyrex EM |
| Material | Aluminum |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 900 RPM |
| Nema Design | B, H |
| No. Of Poles | 8 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6206 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.5 kW |
| Packaging | F |
| Phase | 3 |
| Power Factor | 66.5 |
| Resistance Main | 3.5 ohms |
| Rotation Type | Reversible |
| Rpm | 875 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3.38" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Synchronous Rpm | 900 RPM |
| Thermal Protection | No Protection |
| Torque | 27.5 lbs.-ft. |
| Torque Rating | 12 lbs.-ft. |
| Torquepct | 150 |
| Type | TFL |
| Variable Torque Speed Range | 10 |
| Voltage | 230/460V AC |
| Voltage Rating | 230/460V AC |
| Width | 13.31" |
Shipping Info:
| Ship weight (kg) | 63.9 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 56.36 |
| Ship width (cm) | 41.91 |
| Country of Origin | US |
Product Details:
- Eff 100%: 86.5
- Bearing OPE: 6206
- CC Number: CC004A
- Bearing PE: 6208
- Nameplate: B-92117-AZ-L-BCDLM-A-A-X
- Winding: 215838
- GROUP: 6
- Paint: GRAY (ENAMEL)
- S. F Amps: 11 / 5.5
