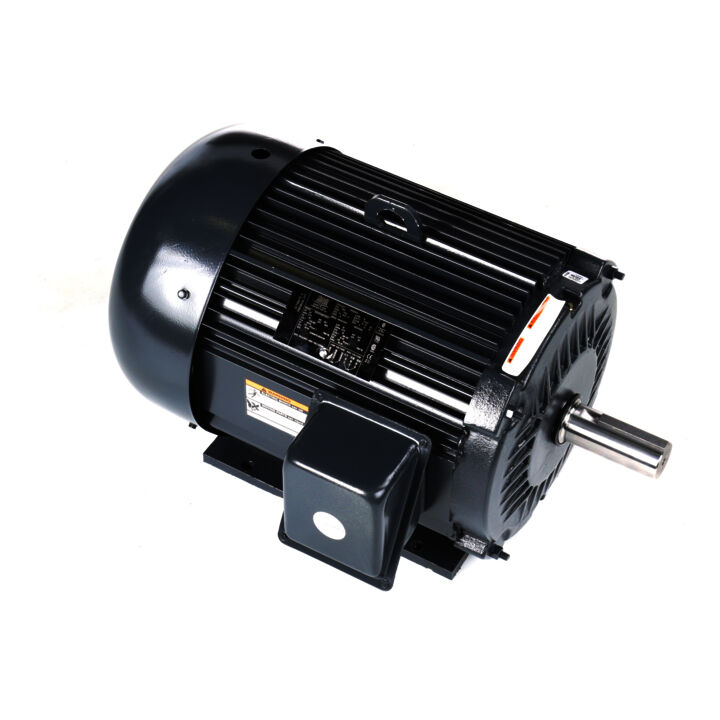

MARATHON MOTORS LM13961 AF4B25T61Y General Purpose Motor, 25 HP, 3 Phase, 60 Hz, 230/460V, 1777 RPM
Get it by Tuesday, Aug 25
€3,508.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Cc No. | CC004A |
| Code | G |
| Duty Cycle | Continuous |
| Eff 100% | 93.6 |
| Efficiency | 93.6% |
| Enclosure | Totally Enclosed Fan Cooled |
| Family Series | Leeson Miscellaneous |
| Frame | 284T |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Hertz | 1.2 |
| Hp | 25 hp |
| Insulation Class | Class F , F |
| Kw | 18.7 kW |
| Max. Amb | 40 |
| Motor Wt. | 495 lbs. |
| Mounting | Rigid |
| Nameplate | 3B451-AZ- x -BCDLM-B-A- x |
| No. Of Poles | 4 |
| Opp Drive End Bearing Size | 6209 |
| Paint | Standard |
| Pf | 79 |
| Phase | 3 |
| Product Datasheet | leeson-lm13961.pdf |
| Rotation | REV |
| Service Factor | 1.25 |
| Shaft Dia. | 1.875 |
| Shaft Length | 4.62 |
| Speed | 1800 RPM |
| Torque | Not Available |
| Type | Tfl |
| Voltage | 230/460V |
| Winding | L2844017 |
Shipping Info:
| Ship weight (kg) | 222.75 |
| Ship height (cm) | 56.87 |
| Ship length (cm) | 88.9 |
| Ship width (cm) | 66.04 |
| Country of Origin | US |
