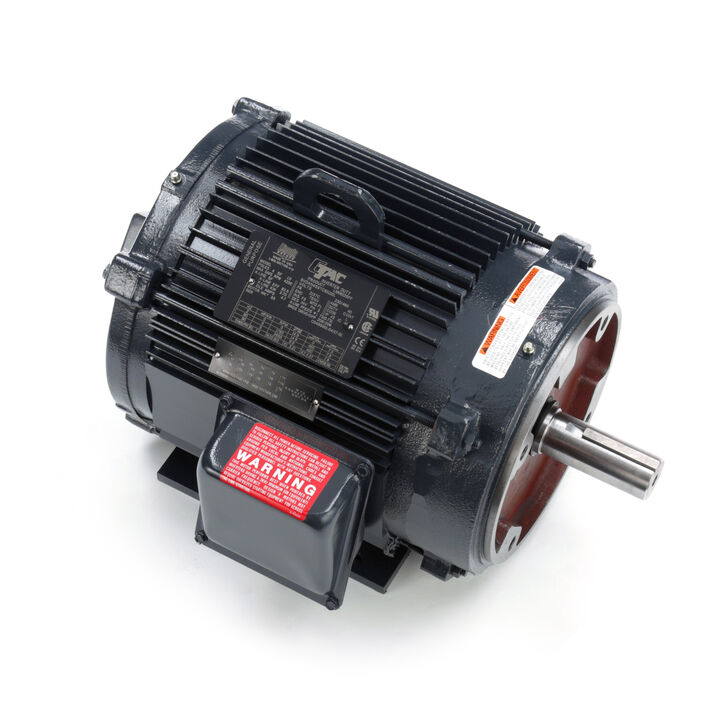

MARATHON MOTORS LM06125 AN4S5TC61Q10 Encoder Motor, 5 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Friday, Aug 28
€2,793.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vector Motor |
| Ambient Temp. | 40°C |
| Amps | 15.6/7.8A |
| Assembly/box Mounting | F1, F2 Capable |
| Cc Number | Exempt |
| Code | L |
| Constant Torque | 2000:1 |
| Design | INV, L |
| Design Code | B |
| Drive End Bearing Size | 208 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Efficiency @ 100% | 82.5% |
| Electrical Type | Squirrel Cage, Inverter Duty |
| Enclosure Type | Tenv |
| Frame | 213TC |
| Frame Length | 8" |
| Frame Material | Aluminum |
| Frame Size | 213TC |
| Frequency | 60 Hz |
| Full Load Amps | 7.8A |
| Grease Type | Multemp SRL |
| Hazardous Location | Not Available |
| Hp | 5 hp |
| Insulation Class | Class F |
| Inverter Load Ratio | 2000:1 |
| Inverter Load Type | Constant |
| Ip Code | 43 |
| Kw | 3.7 kW |
| Lubrication | Standard |
| Max. Speed | 1800 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Rigid |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 206 |
| Opp. Drive End Bearing Type | Ball |
| Outline | B-SS330167LN-800 |
| Output Kw | 3.7 kW |
| Overall Length | 17.94" |
| Packaging | B |
| Paint | Lincoln Gray |
| Phase | 3 |
| Power | 3.7 kW |
| Power Factor | 73 |
| Protection | No Protection |
| Resistance Main | 2 ohms |
| Rotation Type | Reversible |
| Service Factor | 1 |
| Shaft Dia. | 1 3/8" |
| Shaft Extension | 3.38" |
| Shaft Type | T |
| Speed | 1700-1800 RPM , 2 x Base Speed |
| Starting Method | Inverter Only |
| Thermal Protection | Thermostat |
| Type | TTL |
| Voltage | 230/460V |
| Winding | K2134125 |
Shipping Info:
| Ship weight (kg) | 51.75 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| Country of Origin | US |
Product Details:
- Eff 100%: 82.5
- Bearing OPE: 206
- CC Number: EXEMPT
- Bearing PE: 208
- Winding: K2134125
- GROUP: 6
- Paint: GRAY - LINCOLN
