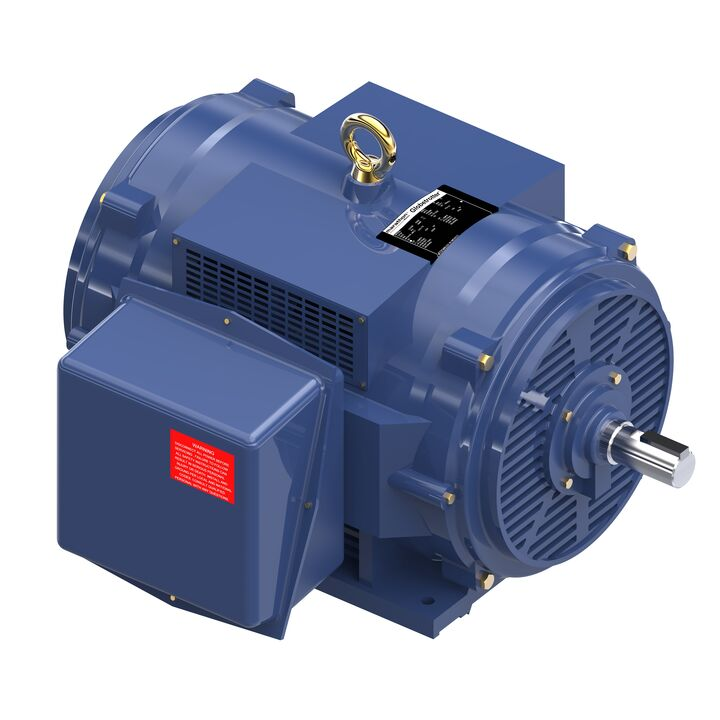

MARATHON MOTORS 447TSTDCD4002 Fire Pump Motor, Open Dripproof, Rigid Base Mounting, 300 HP, 3575 Nameplate RPM | CT2FQA 61KJ11

MARATHON MOTORS 447TSTDCD4002 U541 / 447TSTDCD4002AA Fire Pump Motor, 300 and 250 HP, 3 Phase, 60/50 Hz, 460 and 380V, 3600 and 3000 RPM

Item: CT2FQAModel: 447TSTDCD4002Cross Ref: 61KJ11 / U541 / 447TSTDCD4002AA
Check Availability
In Stock

Get it by Tuesday, Dec 23

€25,264.81
10.00% off
€22,738.33 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Fire Pump Motor
Ambient Temperature 50°C
Amps 322/327A
Assembly/box Mounting F1, F2
Body Dia. 23 3/5"
Design Code B
Drive End Bearing Size 6314
Drive End Bearing Type Ball
Duty Continuous Duty
Efficiency 95%, 94.6%
Electrical Type Squirrel Cage Induction Run
Enclosure Type Dp
Frame 447TS
Frame Material Cast Iron
Frame Size 447Ts
Frequency 50/60 Hz
Height 34"
Hp 300 hp, 250 hp
Insulation Class Class F
Ip Rating IP23
Kva Code G
Motor Application General Application
Motor Design 3-Phase
Motor Enclosure Design Open Dripproof
Motor Mounting Type Rigid Base
Motor Orientation Horizontal
Motor Service Factor 1.2
Motor Shaft Rotation Clockwise
Motor Sub Application Fire Pump
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 3575 RPM
No. Of Poles 2
No. Of Speeds 1
Opp Drive End Bearing Ball
Opp Drive End Bearing Size 6314
Output Kw 224/187 kW
Overall Height 34"
Phase 3
Power Factor 91
Resistance 0.0171 ohms
Rotation Reversible
Rpm 3575/2972 RPM
Rpm Range 3001-3600 RPM
Service Factor 1.15
Shaft Dia. 2 3/8"
Shaft Length 4 3/4"
Shaft Type TS
Starting Method Part Wdg Start, Wye Start Delta Run
Thermal Protection None
Voltage 460/380V

Shipping Info:

Ship weight (kg) 920.7
Ship height (cm)86.36
Ship length (cm)142.24
Ship width (cm)116.84
Country of OriginMX

Product Variants

ProductModelVoltagePhaseNameplate RpmMotor Enclosure DesignHpFull Load AmpsMounting TypeService FactorPrice

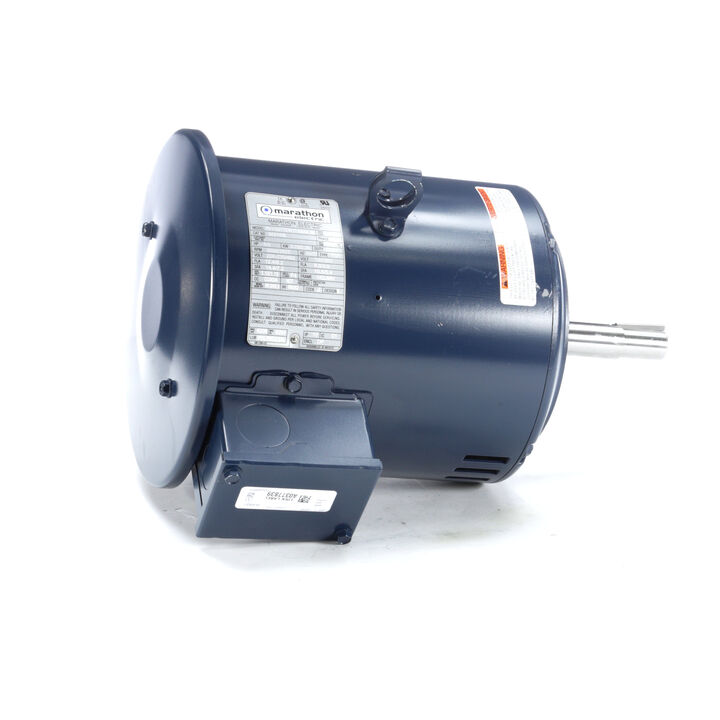

MARATHON MOTORS 182TTDW17008 Close-Coupled Pump Motor, Open Dripproof, Face Mounting, 5 HP, 3, 500 Nameplate RPM | CT2FNL 53DF24 182TTDW17008208-230/460V AC33500 RPM-5 hp13.6-12.4/6.2AFace1.15€1,523.55

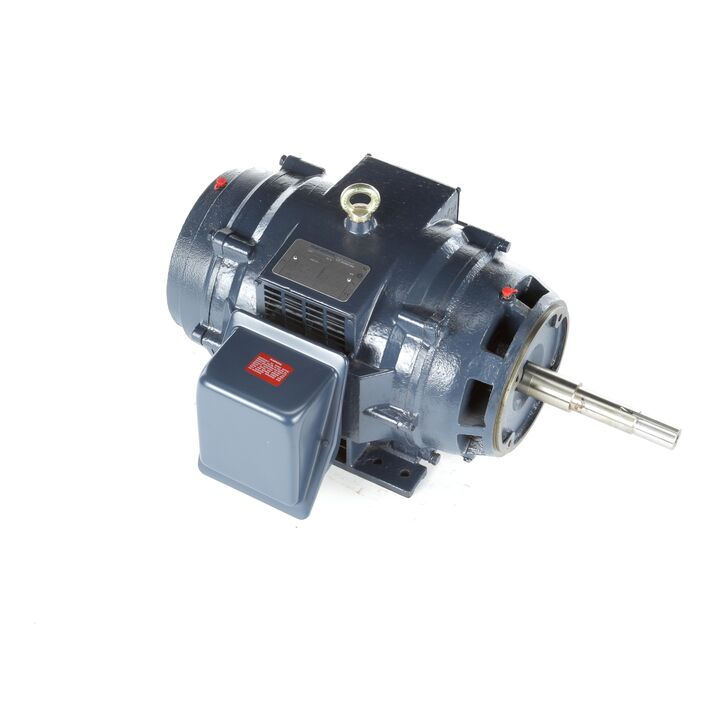

MARATHON MOTORS 256TTDBD6085 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 10 HP, 230/460VAC, F | CT2FNM 52JC64 256TTDBD6085230/460V AC31180 RPMOpen Dripproof10 hp25.6/12.8AFace/Base1.15€4,204.87

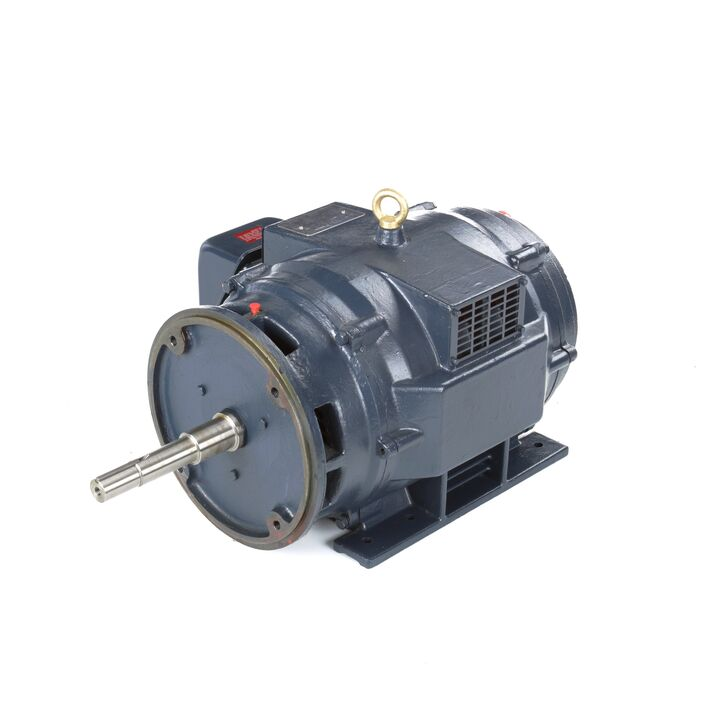

MARATHON MOTORS 286TTDBD6085 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 20 HP, 230/460VAC | CT2FNP 52JC66 286TTDBD6085230/460V AC31180 RPMOpen Dripproof20 hp52.5/26.3AFace/Base1.15€4,980.78

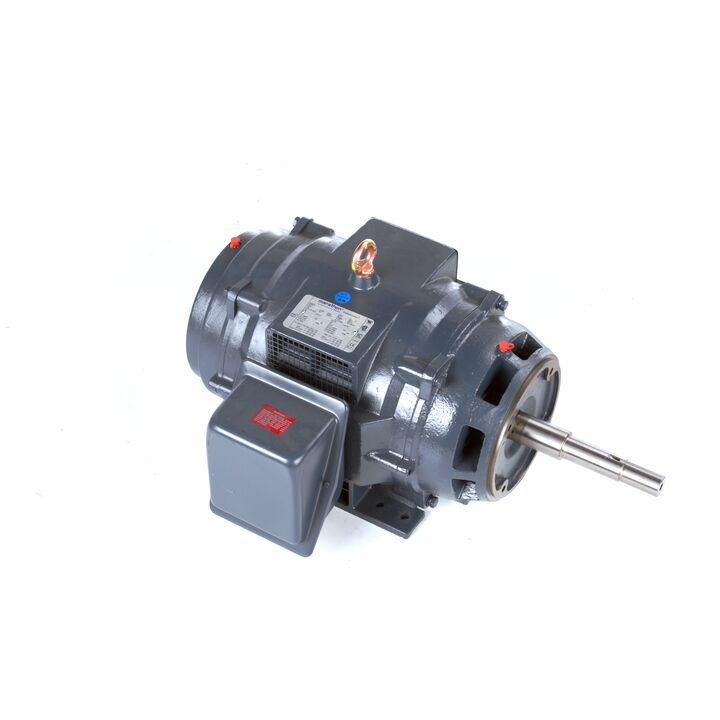

MARATHON MOTORS 256TTDBD6037 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 20 HP, 230/460VAC, F | CT2FNQ 32UR14 256TTDBD6037230/460V AC31770 RPMOpen Dripproof20 hp48.5/24.3AFace/Base1.15€3,568.12

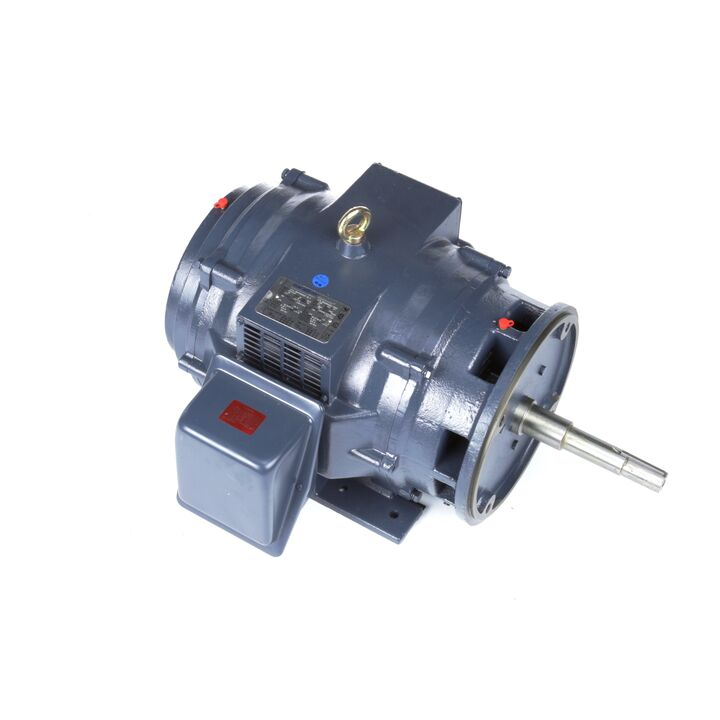

MARATHON MOTORS 284TTDBD6037 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 25 HP, 230/460VAC | CT2FNR 32UR18 284TTDBD6037230/460V AC31775 RPMOpen Dripproof25 hp62.5/31AFace/Base1.15€5,143.51

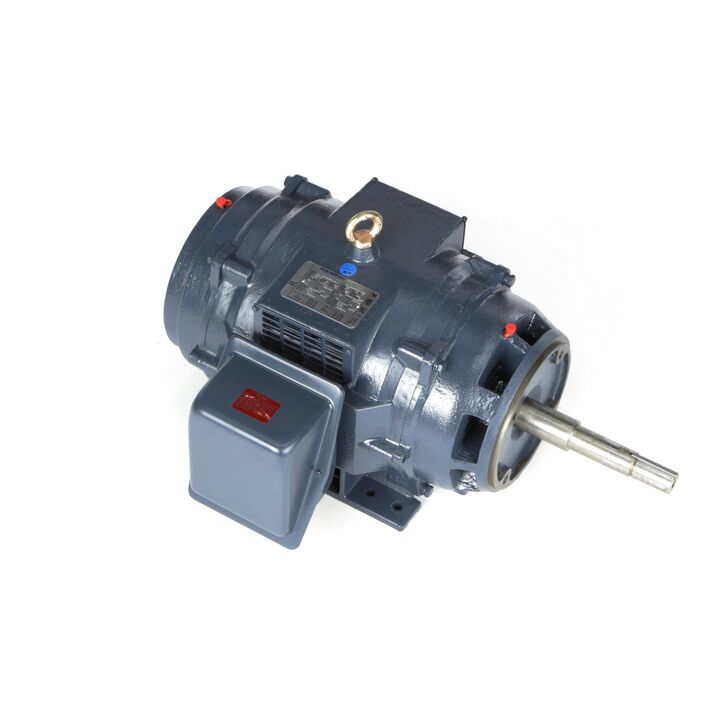

MARATHON MOTORS 256TTDBD6012 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 25 HP, 230/460VAC, F | CT2FNT 32UR12 256TTDBD6012230/460V AC33560 RPMOpen Dripproof25 hp59.5/29.7AFace/Base1.15€3,417.97

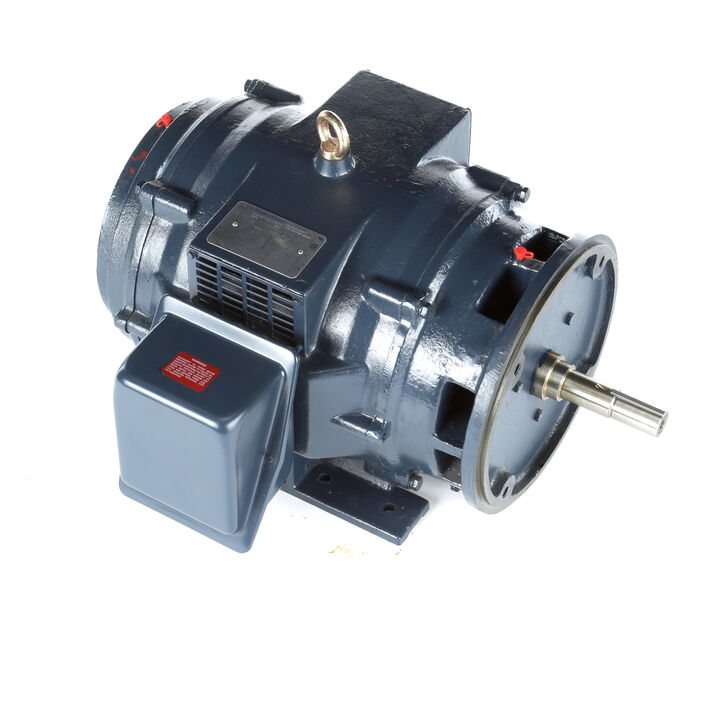

MARATHON MOTORS 284TTDBD6032 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 25 HP, 230/460VAC, F | CT2FNU 26ZY20 284TTDBD6032230/460V AC31775 RPMOpen Dripproof25 hp62.5/31AFace/Base1.15€5,143.51
