MARATHON MOTORS 256TTDBD6037 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 20 HP, 230/460VAC, F | CT2FNQ 32UR14

MARATHON MOTORS 256TTDBD6037 GT2462 / 256TTDBD6037BB Close Coupled Pump Motor, 20/15 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM

Item: CT2FNQModel: 256TTDBD6037Cross Ref: 32UR14 / GT2462 / 256TTDBD6037BB
Check Availability
In Stock

Get it by Wednesday, Dec 24

€3,568.12
10.00% off
€3,211.30 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Ambient Temp. 40°C
Bearing Type Ball
Body Dia. 11 4/5"
Bolt Circle Dia. 7 1/4"
Cc Number CC003A
Conduit Box Location Exterior
Conduit Box Position F1, F2
Duty Cycle Continuous
Efficiency 93%
Frame 256JP
Frame Material Steel
Full Load Amps 48.5/24.3A
Height 13 1/2"
Hp 20 hp
Hz 60 Hz
Insulation Class Class F
Inverter Rated Yes
Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque
Length Less Shaft 20 3/4"
Max. Ambient Temp. 40°C
Motor Application Pump
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Open Dripproof
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face, Base
Motor Service Factor 1.15
Motor Shaft Design JP Threaded
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Sub Application Close Coupled Pump
Motor Type Three Phase
Mounting Type Face/Base
Nameplate Rpm 1770 RPM
Nema Design B
No. Of Speeds 1
Nominal Efficiency 93%
Overall Height 13 1/2"
Overall Length 28 7/8"
Phase 3
Rpm Range 1701-1800 RPM
Service Factor 1.15
Shaft Dia. 1 1/4"
Shaft Length 8 1/4"
Thermal Protection None
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V AC
Weight 500 lbs.

Shipping Info:

Ship weight (kg) 121.05
Ship height (cm)71.48
Ship length (cm)80.7
Ship width (cm)71.2
HS code8501528040
Country of OriginMX

Product Variants

ProductModelVoltagePhaseNameplate RpmMotor Enclosure DesignHpFull Load AmpsMounting TypeService FactorPrice
MARATHON MOTORS 182TTDW17008 Close-Coupled Pump Motor, Open Dripproof, Face Mounting, 5 HP, 3, 500 Nameplate RPM | CT2FNL 53DF24 182TTDW17008208-230/460V AC33500 RPM-5 hp13.6-12.4/6.2AFace1.15€1,523.55
MARATHON MOTORS 256TTDBD6085 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 10 HP, 230/460VAC, F | CT2FNM 52JC64 256TTDBD6085230/460V AC31180 RPMOpen Dripproof10 hp25.6/12.8AFace/Base1.15€4,204.87
MARATHON MOTORS 286TTDBD6085 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 20 HP, 230/460VAC | CT2FNP 52JC66 286TTDBD6085230/460V AC31180 RPMOpen Dripproof20 hp52.5/26.3AFace/Base1.15€4,980.78
MARATHON MOTORS 284TTDBD6037 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 25 HP, 230/460VAC | CT2FNR 32UR18 284TTDBD6037230/460V AC31775 RPMOpen Dripproof25 hp62.5/31AFace/Base1.15€5,143.51
MARATHON MOTORS 256TTDBD6012 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 25 HP, 230/460VAC, F | CT2FNT 32UR12 256TTDBD6012230/460V AC33560 RPMOpen Dripproof25 hp59.5/29.7AFace/Base1.15€3,417.97
MARATHON MOTORS 284TTDBD6032 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 25 HP, 230/460VAC, F | CT2FNU 26ZY20 284TTDBD6032230/460V AC31775 RPMOpen Dripproof25 hp62.5/31AFace/Base1.15€5,143.51

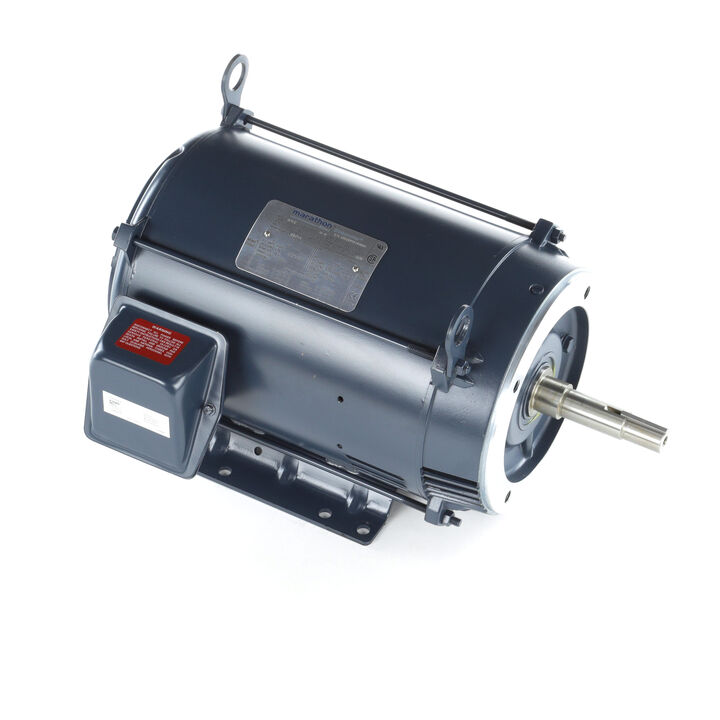

MARATHON MOTORS 213TTDBD6082 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 3 HP, 230/460VAC, F | CT2FNV 52JA43 213TTDBD6082230/460V AC31185 RPMOpen Dripproof3 hp8.4/4.2AFace/Base1.15€2,230.86
