MARATHON MOTORS
See our 856 reviews on

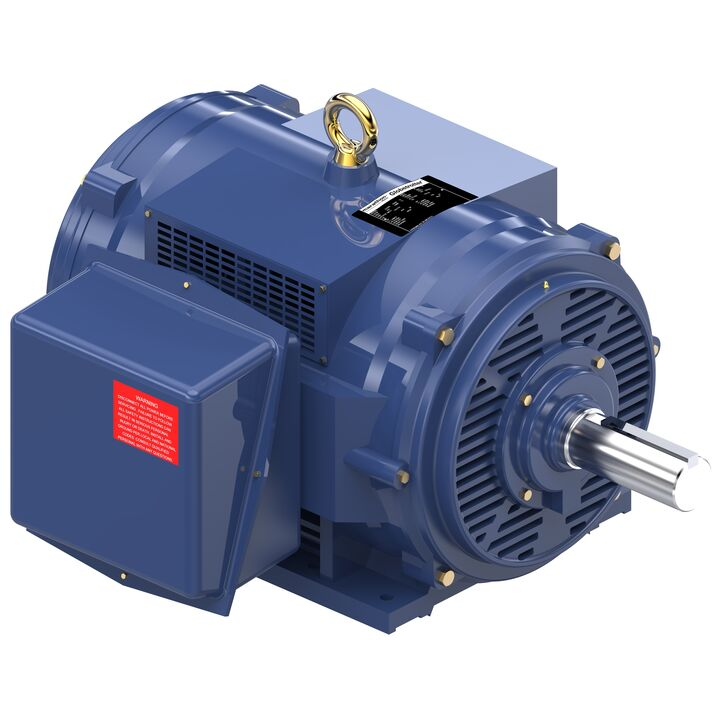

MARATHON MOTORS 445TTDCD6060 General Purpose Motor, 200 hp, 3 Phase, 1790 Rpm, 460VAC, 445T Frame | CH6JWQ 44P001

MARATHON MOTORS 445TTDCD6060 GT0055A / 445TTDCD6060BB General Purpose Motor, 200/150 HP, 3 Phase, 60/50 Hz, 460 and 380V, 1800 and 1500 RPM

Item: CH6JWQModel: 445TTDCD6060Cross Ref: 44P001 / GT0055A / 445TTDCD6060BB
Check Availability
In Stock

Get it by Wednesday, Dec 24

€21,912.08 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 104°F
Base Type Rigid Base
Bearing Type Ball
Cc Number CC003A
Duty Cycle Continuous
Efficiency 95.8%
Efficiency Group Premium
Frame 445T
Frame Material Cast Iron
Frequency 60 Hz
Full Load Amps 223A
Green Certification Or Other Recognition NEMA Premium Rated
Hp 200 hp
Includes Conduit Box
Insulation Class Class F
Inverter Rated Yes
Length Less Shaft 36 1/16"
Manufacturers Warranty Length 1 yr.
Max. Ambient Temp. 40°C
Motor Application General Application
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Open Dripproof
Motor Frame Material Cast Iron
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 1790 RPM
Nema Design B
No. Of Speeds 1
Nominal Efficiency 95.8%
Overall Length 44 9/16"
Phase 3
Rpm Range 1701-1800 RPM
Service Factor 1.15
Shaft Dia. 3 3/8"
Shaft Length 8 1/2"
Thermal Protection None
Usable @ 200v No
Usable @ 208v No
Voltage 460V AC

Shipping Info:

Ship weight (kg) 907.65
Ship height (cm)76.2
Ship length (cm)120.65
Ship width (cm)93.98
HS code8501538040
Country of OriginMX

Product Variants

ProductModelVoltageNameplate RpmFrequencyFull Load AmpsHpAmbient Temp.Frame MaterialEfficiencyPrice
MARATHON MOTORS 286TSTDBD6001 General Purpose Motor, 40 HP, 3-Phase, 3565 Nameplate RPM, Voltage 230/460 | CD3BBE 454X63 286TSTDBD6001230/460V AC3562 RPM60 Hz93/46.5A40 hp104°FSteel92.5%€3,927.65
MARATHON MOTORS 364TTDBD6060 General Purpose Motor, 60 HP, 3-Phase, 1785 Nameplate RPM, Voltage 230/460 | CD3BBF 454X70 364TTDBD6060230/460V AC1782 RPM60 Hz140/70A60 hp104°FSteel95%€7,286.69
MARATHON MOTORS 324TSTDBD6001 General Purpose Motor, 3-Phase, Voltage 230/460, 50 HP | CD3QYM 454X66 324TSTDBD6001230/460V AC3565 RPM60 Hz115/57.5A50 hp104°FSteel93%€5,973.43
MARATHON MOTORS 324TTDBD6026 General Purpose Motor, 3-Phase, Voltage 230/460, 40 HP | CD3QZK 454X64 324TTDBD6026230/460V AC1780 RPM60 Hz95.5/47.5A40 hp104°FSteel94%€4,222.46
MARATHON MOTORS 326TTDBD6076 General Purpose Motor, 3-Phase, Voltage 230/460, 30 HP | CD3RGV 454X62 326TTDBD6076230/460V AC1188 RPM60 Hz75/37.5A30 hp104°FSteel93.5%€5,913.04
MARATHON MOTORS 256TTDBD6026 General Purpose Motor, 3-Phase, Voltage 230/460, 20 HP | CD3THU 454X55 256TTDBD6026230/460V AC1770 RPM60 Hz48.5/24.3A20 hp104°FSteel93%€3,213.03
MARATHON MOTORS 326TTDBD6026 General Purpose Motor, 3-Phase, Voltage 230/460, 50 HP | CD3TUG 454X67 326TTDBD6026230/460V AC1780 RPM60 Hz118/59A50 hp104°FSteel94.5%€4,553.86
