MARATHON MOTORS 324TSTDBD6001 General Purpose Motor, 3-Phase, Voltage 230/460, 50 HP | CD3QYM 454X66

MARATHON MOTORS 324TSTDBD6001 GT0076 / 324TSTDBD6001BB General Purpose Motor, 50/40 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 3600 RPM

Item: CD3QYMModel: 324TSTDBD6001Cross Ref: 454X66 / GT0076 / 324TSTDBD6001BB
Check Availability
In Stock

Get it by Tuesday, Dec 23

€5,973.43 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 104°F
Base Type Rigid Base
Bearing Type Ball
Cc Number CC003A
Duty Cycle Continuous
Efficiency 93%
Efficiency Group Premium
Frame 324TS
Frame Material Steel
Frequency 60 Hz
Full Load Amps 115/57.5A
Hp 50 hp
Insulation Class Class F
Inverter Rated Yes
Length Less Shaft 23 5/16"
Manufacturers Warranty Length 1 yr.
Max. Ambient Temp. 40°C
Motor Application General Application
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Open Dripproof
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 3565 RPM
Nema Design B
No. Of Speeds 1
Nominal Efficiency 93%
Number CC003A
Overall Length 27 1/16"
Phase 3
Rpm Range Over 3600 RPM
Service Factor 1.15
Shaft Dia. 1 7/8"
Shaft Length 3 3/4"
Standards Ce, Csa, Ul Recognized
Thermal Protection None
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V AC

Shipping Info:

Ship weight (kg) 206.39
Ship height (cm)71.48
Ship length (cm)80.7
Ship width (cm)71.2
HS code8501528040
Country of OriginMX

Product Variants

ProductModelVoltageNameplate RpmFrequencyFull Load AmpsHpAmbient Temp.Frame MaterialEfficiencyPrice
MARATHON MOTORS 286TSTDBD6001 General Purpose Motor, 40 HP, 3-Phase, 3565 Nameplate RPM, Voltage 230/460 | CD3BBE 454X63 286TSTDBD6001230/460V AC3562 RPM60 Hz93/46.5A40 hp104°FSteel92.5%€3,927.65

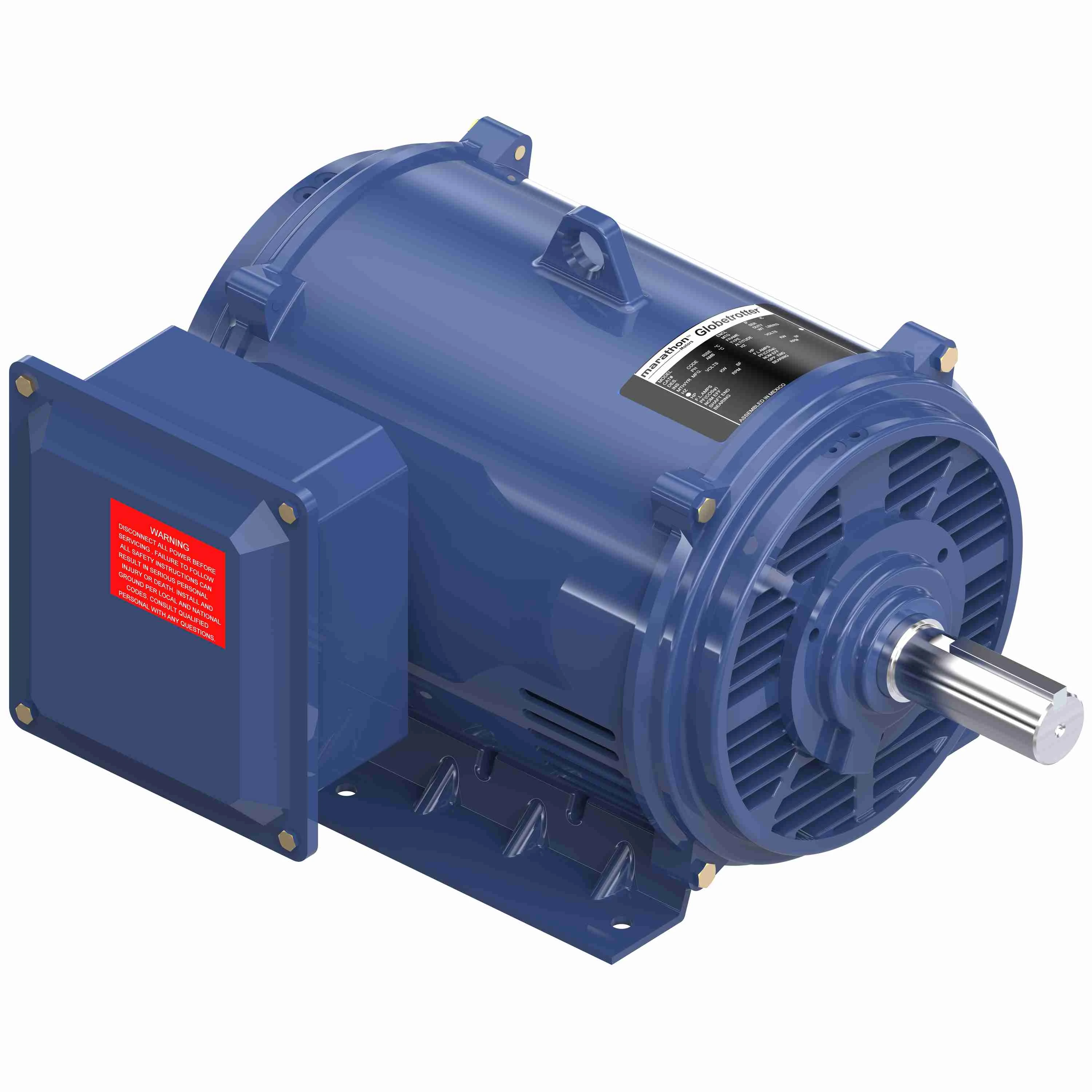

MARATHON MOTORS 364TTDBD6060 General Purpose Motor, 60 HP, 3-Phase, 1785 Nameplate RPM, Voltage 230/460 | CD3BBF 454X70 364TTDBD6060230/460V AC1782 RPM60 Hz140/70A60 hp104°FSteel95%€7,286.69

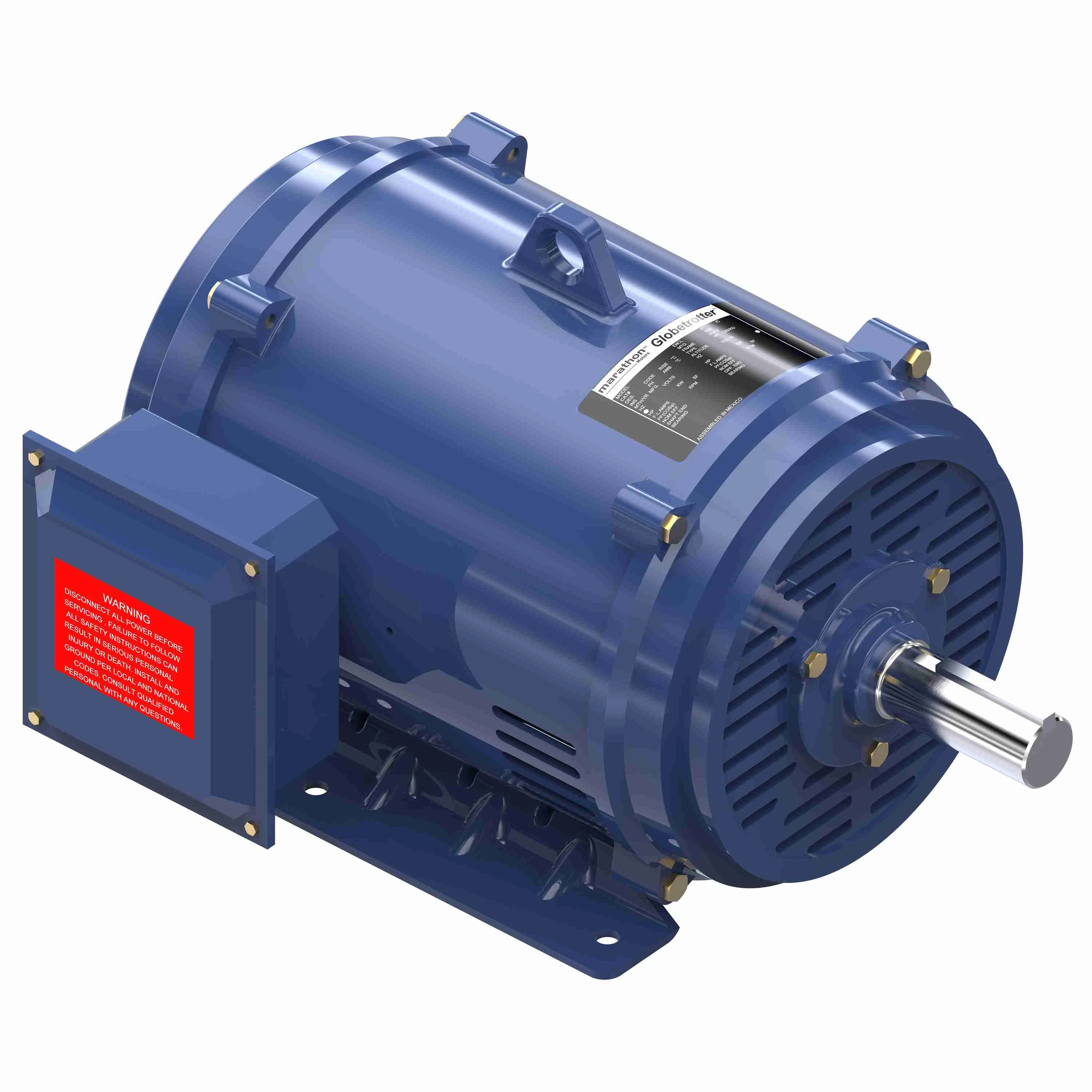

MARATHON MOTORS 324TTDBD6026 General Purpose Motor, 3-Phase, Voltage 230/460, 40 HP | CD3QZK 454X64 324TTDBD6026230/460V AC1780 RPM60 Hz95.5/47.5A40 hp104°FSteel94%€4,222.46
MARATHON MOTORS 326TTDBD6076 General Purpose Motor, 3-Phase, Voltage 230/460, 30 HP | CD3RGV 454X62 326TTDBD6076230/460V AC1188 RPM60 Hz75/37.5A30 hp104°FSteel93.5%€5,913.04

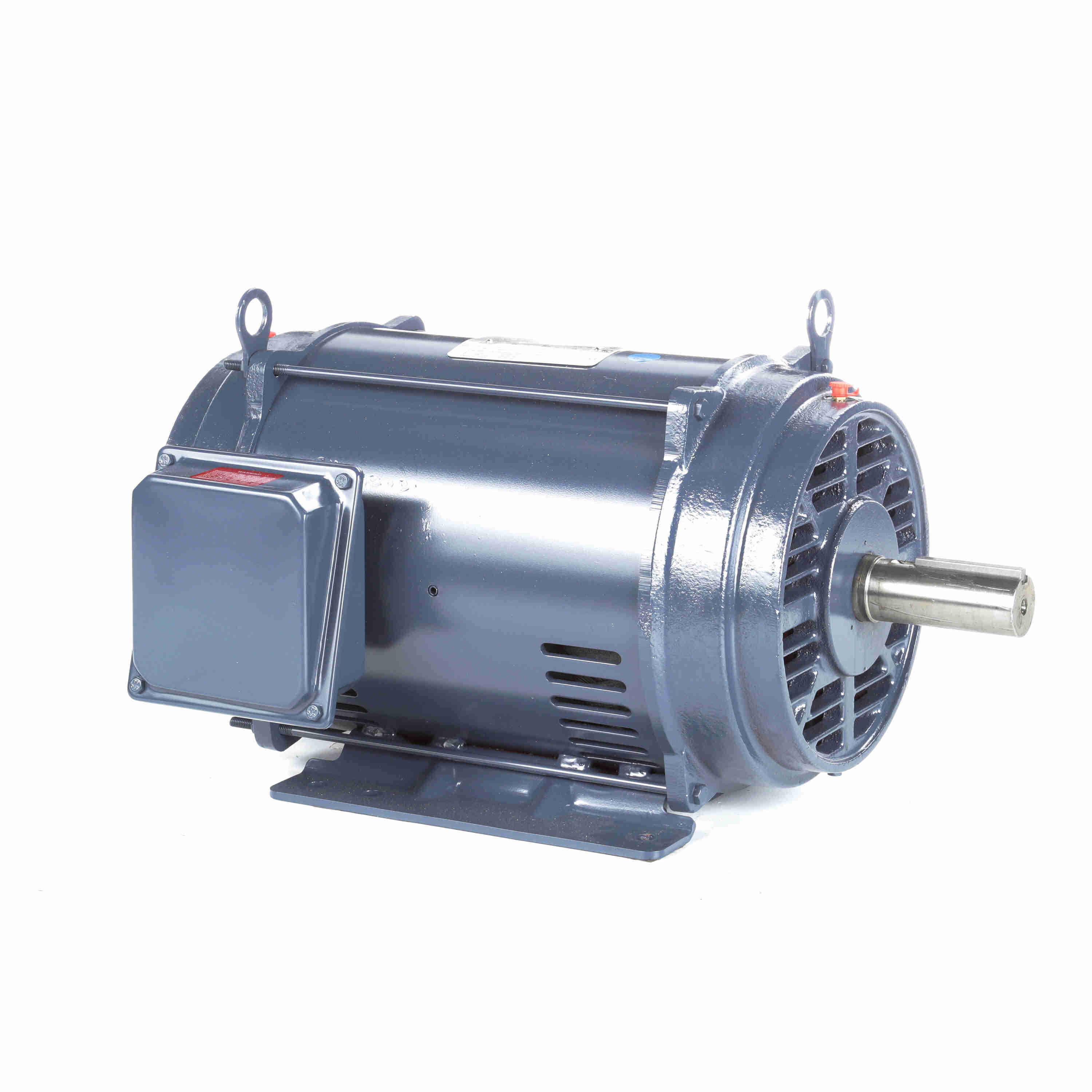

MARATHON MOTORS 256TTDBD6026 General Purpose Motor, 3-Phase, Voltage 230/460, 20 HP | CD3THU 454X55 256TTDBD6026230/460V AC1770 RPM60 Hz48.5/24.3A20 hp104°FSteel93%€3,213.03
MARATHON MOTORS 326TTDBD6026 General Purpose Motor, 3-Phase, Voltage 230/460, 50 HP | CD3TUG 454X67 326TTDBD6026230/460V AC1780 RPM60 Hz118/59A50 hp104°FSteel94.5%€4,553.86

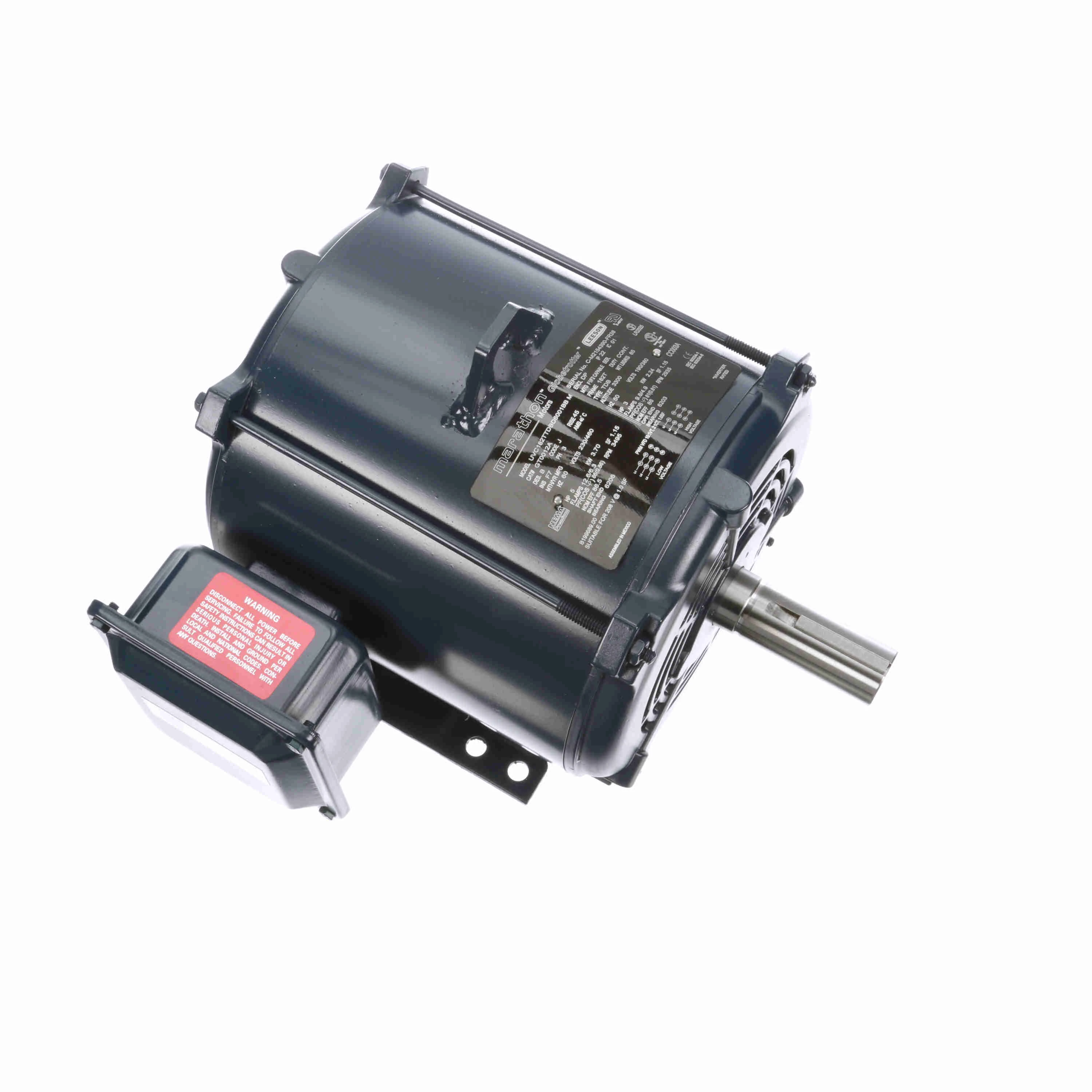

MARATHON MOTORS 182TTDBD6001 General Purpose Motor, 5 hp, 3 Phase, 3495 Rpm, 230/460VAC, 182T Frame | CH6HYT 131986.00 182TTDBD6001208-230/460V AC3495 RPM50/60 Hz13.2/6.6A5 hp104°FSteel86.5%€1,002.07
