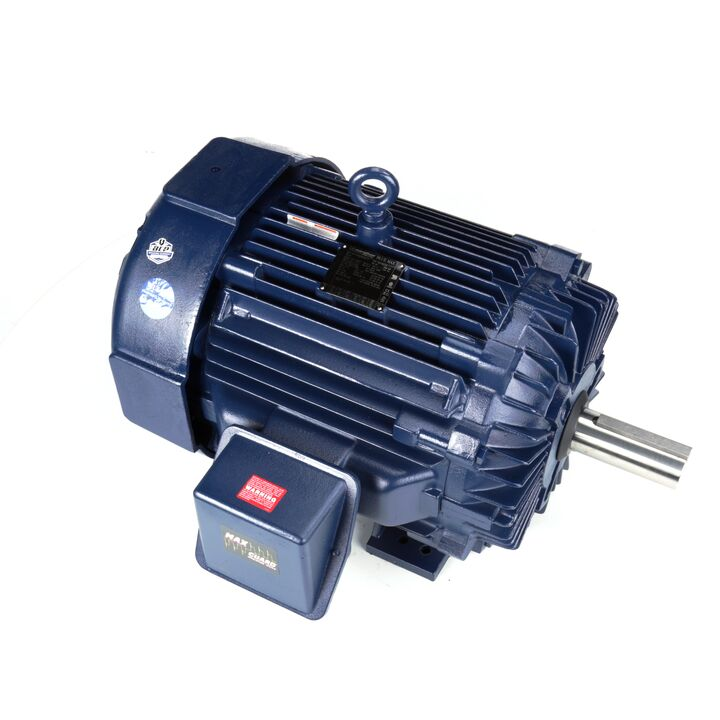

MARATHON MOTORS 445THFN8050 Vector Motor 3-phase 125hp 460v | AF8KHT 26VU14 / Y520

MARATHON MOTORS 445THFN8050 Y520 / 445THFN8050AE Inverter Duty Encoder Motor, 200 HP, 3 Phase, 60 Hz, 460 V, 1800 RPM

Item: AF8KHTModel: 445THFN8050Cross Ref: 26VU14 / Y520 / 445THFN8050AE
Check Availability
In Stock

Get it by Thursday, Dec 25

€55,855.57 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Vector Motor
Ambient Temp. 40°C
Application Crane
Base Rigid
Base Type Rigid Base
Bearing Type Ball
Bearings Ball
Conduit Box Location Exterior
Conduit Box Position F1, F2
Constant Torque 2000:1
Duty Continuous
Duty Cycle Continuous
Efficiency 95%
Efficiency Group Epact
Encoder Acceptable Yes
Encoder Shaft 1" x 1-3/4"
Encoder Shaft 1" x 1.75"
Encoder Shaft Dimension 1" x 1 3/4"
Encoder Shaft Dimensions 1" x 1.75"
Finish Enamel
Frame 444T
Frame Material Cast Iron
Frequency 60 Hz
Full Load Amps 138A
Hp 125 hp
Insulation Class Class H
Insulation Feature Class F
Manufacturers Warranty Length 3 yrs.
Max. Ambient Temp. 104°F
Max. Operating Frequency 90 Hz
Max. Rpm 1800 RPM
Motor Application Crane
Motor Bearings Ball
Motor Design 3-Phase
Motor Efficiency Group Energy Efficient
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Cast Iron
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1
Motor Shaft Design Keyed
Motor Shaft Rotation CW/CCW
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Thermal Protection T Stat
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 1785 RPM
Nema Design B
No. Of Speeds 1
Nominal Efficiency 95%
Number Of Speeds 1
Overall Length 54 7/8"
Phase 3
Service Factor 1
Shaft Dia. 3 3/8"
Shaft Length 8 3/4"
Speed Range 2000:1
Speed Ratio 2000:1
Standards Ce, Csa, Ul Recognized
Thermal Protection Thermostat
Usable @ 200v No
Usable @ 208v No
Voltage 460V AC
Warranty 3 yrs.
Weight 2430 lbs.

Shipping Info:

Ship weight (kg) 1093.5
Ship height (cm)86.31
Ship length (cm)162.56
Ship width (cm)106.68
HS code8501536000
Country of OriginUS

Product Variants

ProductModelVoltageFrameHpFull Load AmpsEfficiency GroupNominal EfficiencyMotor Thermal ProtectionNameplate RpmPrice
MARATHON MOTORS 143THTN8028 Vector Motor 3-phase 1hp 230/460v | AF8KGB 26VT72 / Y525 143THTN8028230/460V AC143TC1 hp3/1.5APremium85.5%T Stat-€1,906.25
MARATHON MOTORS 145THTN8029 Vector Motor 3-phase 1hp 230/460v | AF8KGC 26VT73 / Y526 145THTN8029230/460V AC143TC2 hp3/1.5APremium85.5%T Stat1756 RPM€1,866.76
MARATHON MOTORS 145THTN8037 Vector Motor 3-phase 1hp 230/460v | AF8KGD 26VT74 / Y590 145THTN8037230/460V AC143TC1 hp3/1.5APremium82.5%Thermostat1756 RPM€1,894.77

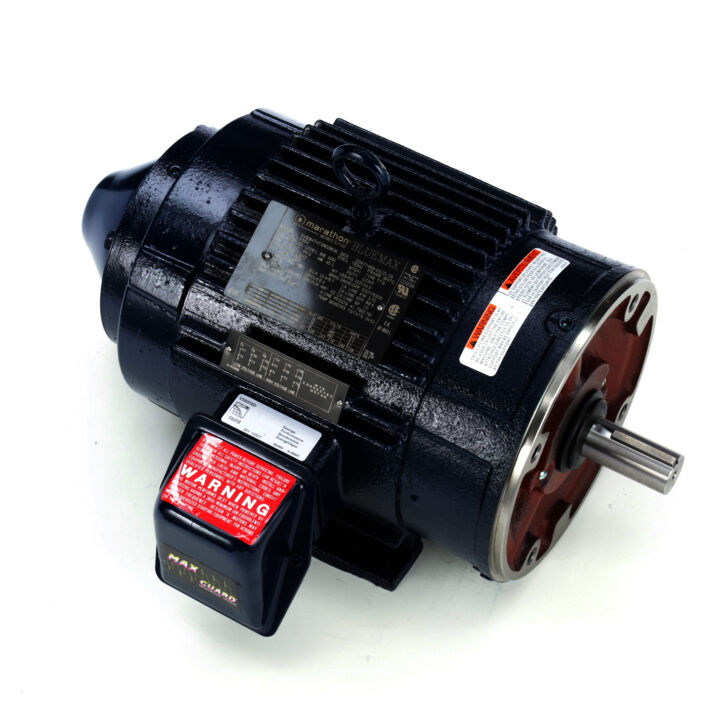

MARATHON MOTORS 184THTS8028 Vector Motor 3-phase 3hp 230/460v | AF8KGF 26VT76 / Y564 184THTS8028230/460V AC182TC3 hp8/4APremium88.5%T Stat1760 RPM€2,403.94
MARATHON MOTORS 254THTNA8058 Vector Motor 3-phase 15hp 230/460v | AF8KGM 26VT82 / Y509 254THTNA8058230/460V AC254TC15 hp40.5/20.2APremium93%T Stat1772 RPM€5,527.86

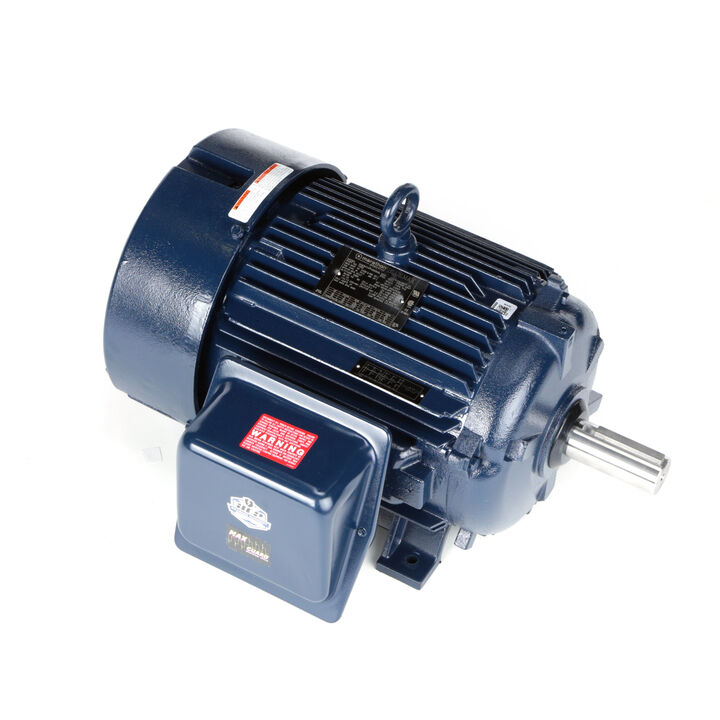

MARATHON MOTORS 284THFPA8028 Vector Motor 3-phase 25hp 230/460v | AF8KGQ 26VT85 / Y569 284THFPA8028230/460V AC284T25 hp63/31.5AEpact91.7%T Stat1765 RPM€7,566.87

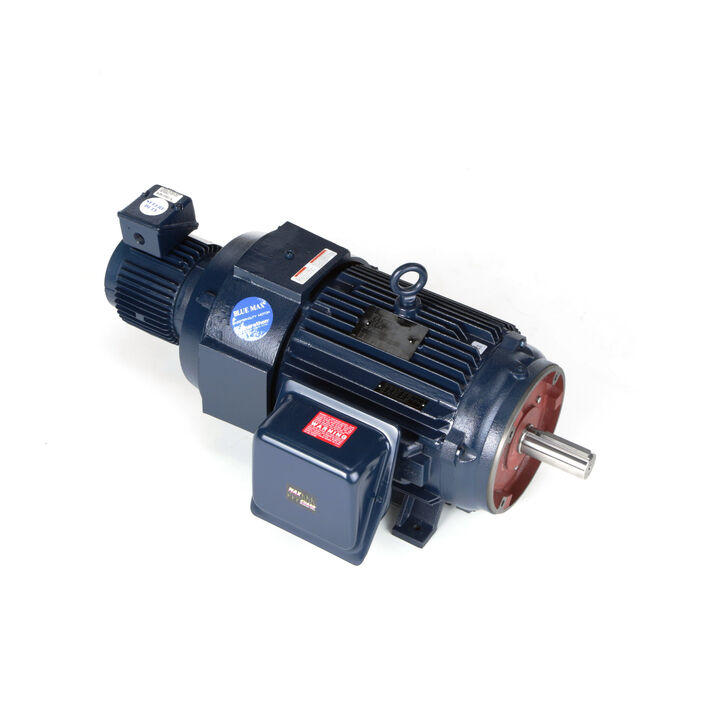

MARATHON MOTORS 284THFPA8038 Vector Motor 3-phase 25hp 230/460v | AF8KGR 26VT86 / Y511 284THFPA8038230/460V AC284TC25 hp63/31.5AEpact91.7%T Stat1765 RPM€8,456.13
