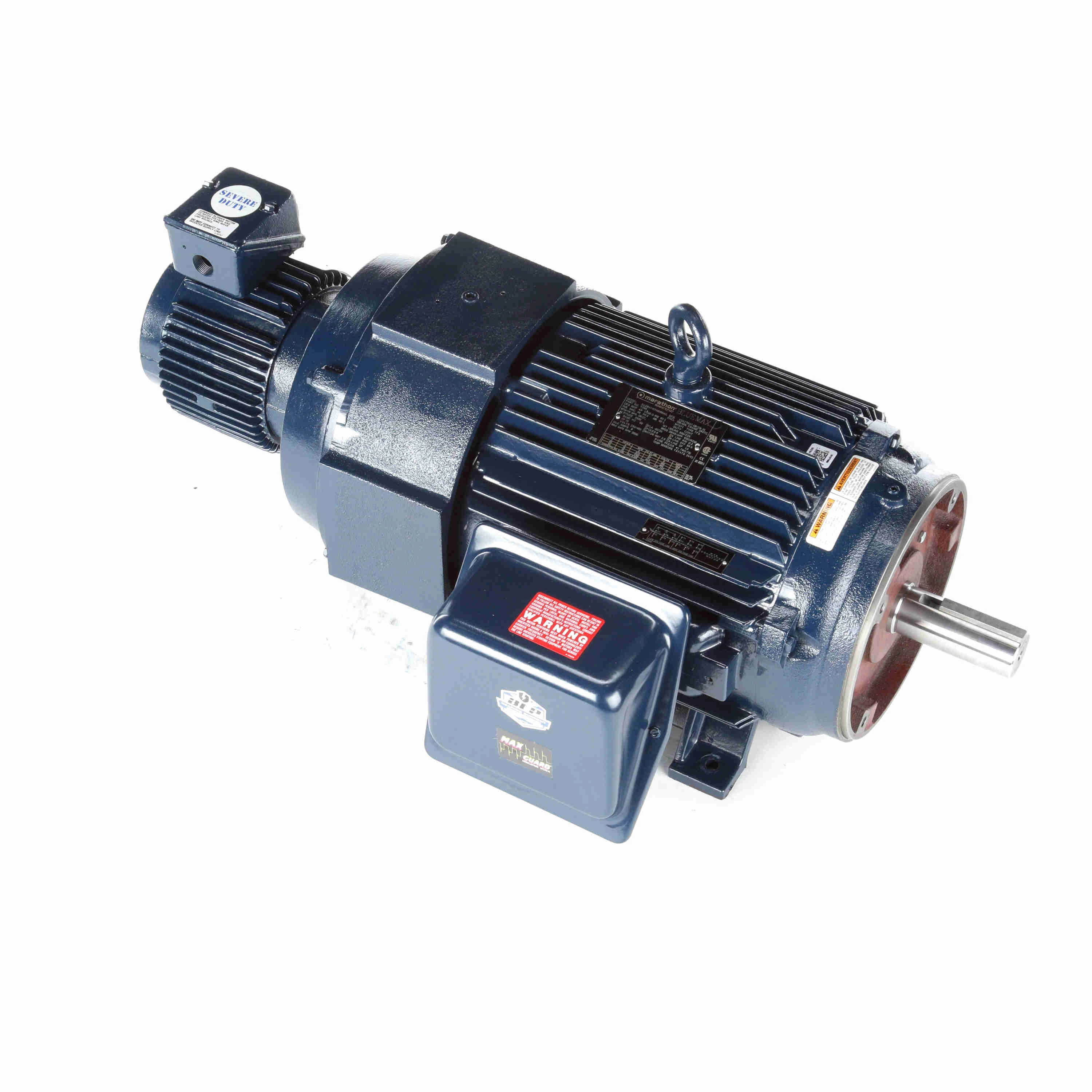

MARATHON MOTORS 284THFPA8086 Y395 / 284THFPA8086AC Inverter Duty Encoder Motor, 15 HP, 3 Phase, 60 Hz, 230/460 V, 1200 RPM
Get it by Friday, Aug 28
€12,202.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vector Motor |
| Ambient Temp. | 40°C |
| Application | Crane |
| Base | Rigid |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Bearings | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Constant Torque | 2000:1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 88.5% |
| Efficiency Group | Epact |
| Encoder Acceptable | Yes |
| Encoder Shaft | 1" x 1.75" |
| Encoder Shaft | 1" x 1-3/4" |
| Encoder Shaft Dimensions | 1" x 1 3/4" |
| Encoder Shaft Dimensions | 1" x 1.75" |
| Finish | Enamel |
| Frame | 284TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 63/31.5A |
| Hp | 25 hp |
| Insulation Class | Class H |
| Insulation Feature | Class F |
| Max. Operating Frequency | 90 Hz |
| Max. Speed | 1800 RPM |
| Motor Application | Crane |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nema Design | A |
| No. Of Speed | 1 |
| No. Of Speeds | 1 |
| Overall Length | 37 13/16" |
| Phase | 3 |
| Service Factor | 1 |
| Shaft Length | 4 3/8" |
| Speed Range | 2000:1 |
| Speed Ratio | 2000:1 |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 225 |
| Ship height (cm) | 53.67 |
| Ship length (cm) | 88.9 |
| Ship width (cm) | 66.04 |
| HS code | 8501524000 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Shaft Dia. | Nominal Efficiency | Frame | Efficiency | Nema Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

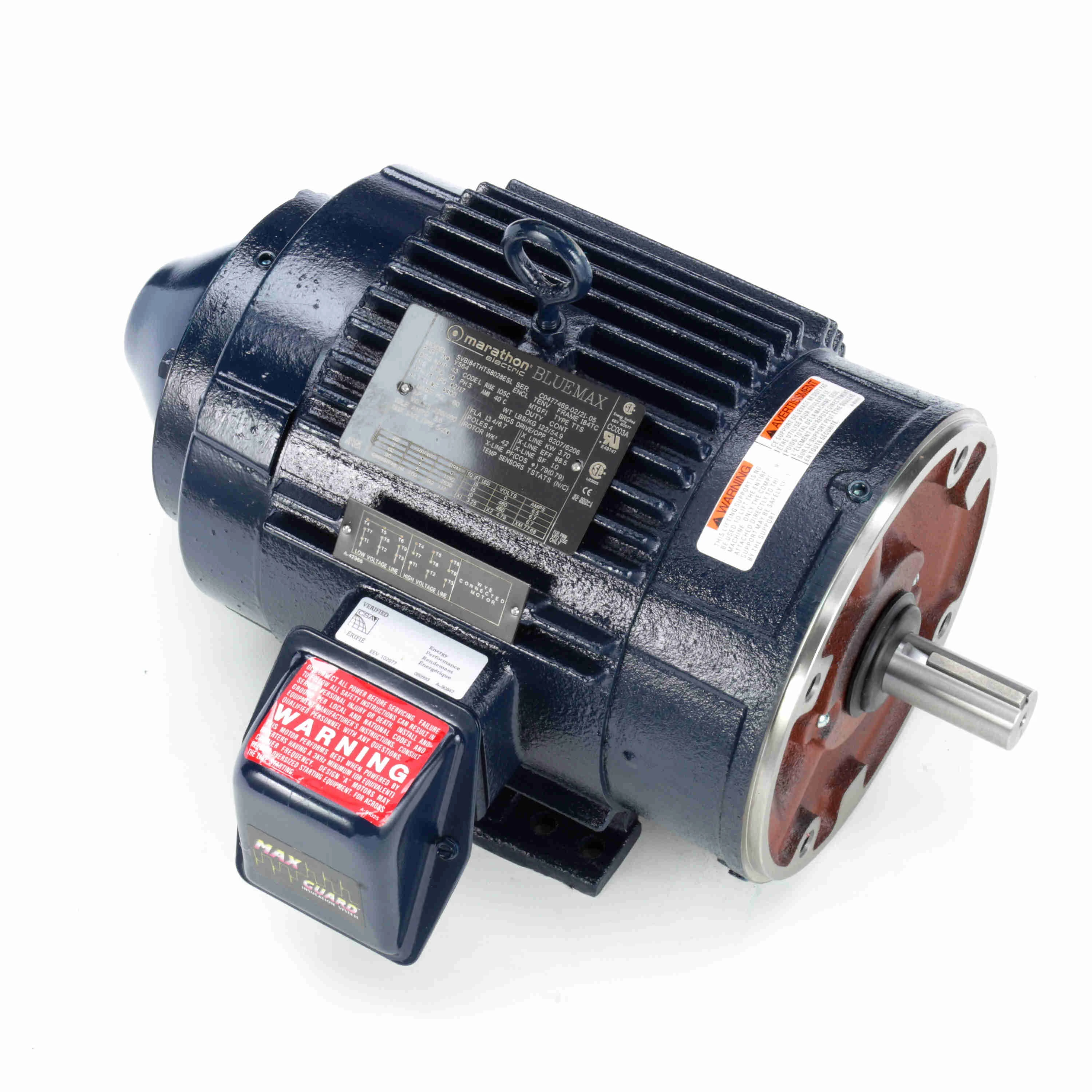

184THTS8028 | 230/460V AC | 3 hp | 8/4A | 1 1/8" | 88.5% | 182TC | 88.5% | A | €3,207.14 | |
 |

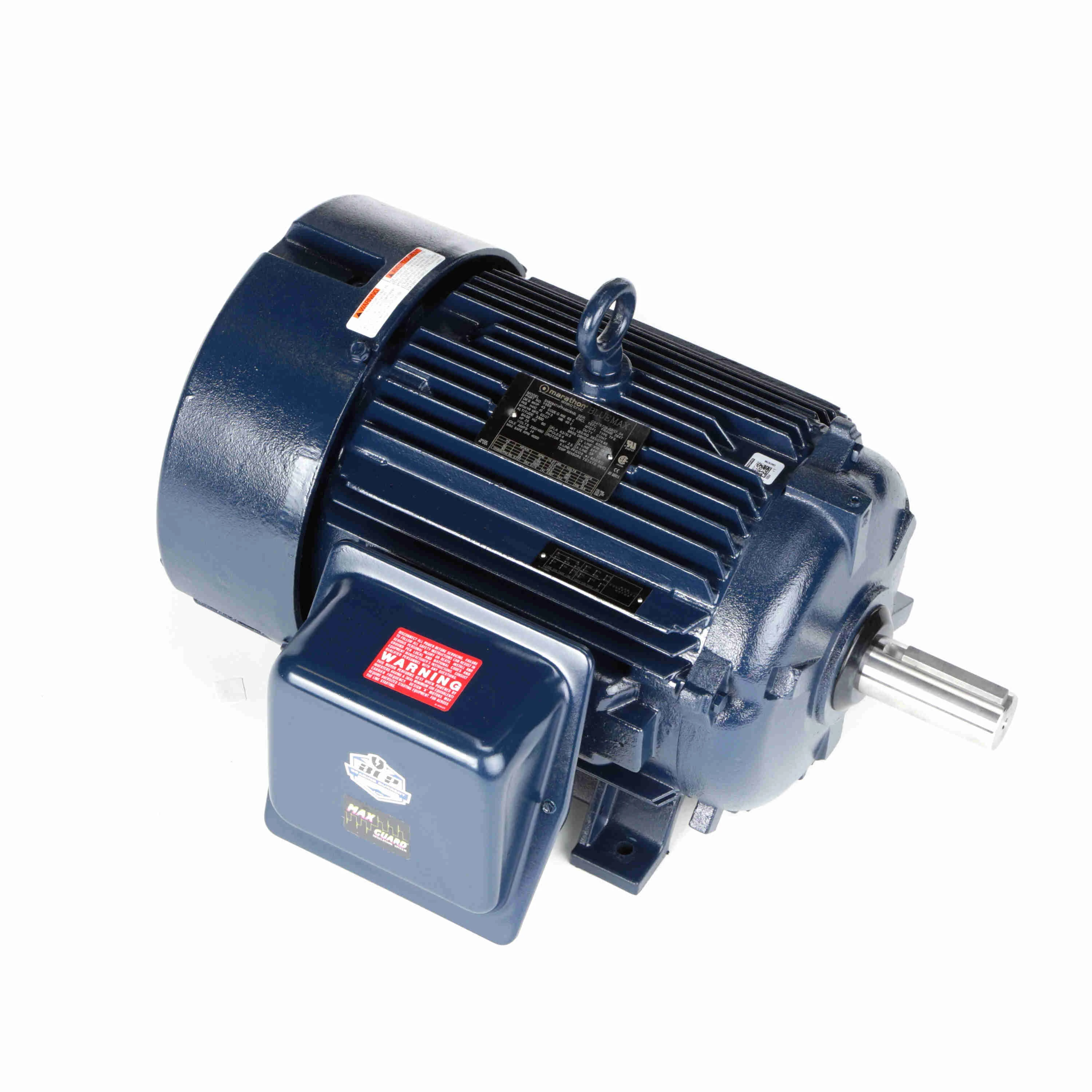

284THFPA8028 | 230/460V AC | 25 hp | 63/31.5A | 1 7/8" | 91.7% | 284T | 91.7% | B | €7,566.87 | |
 |

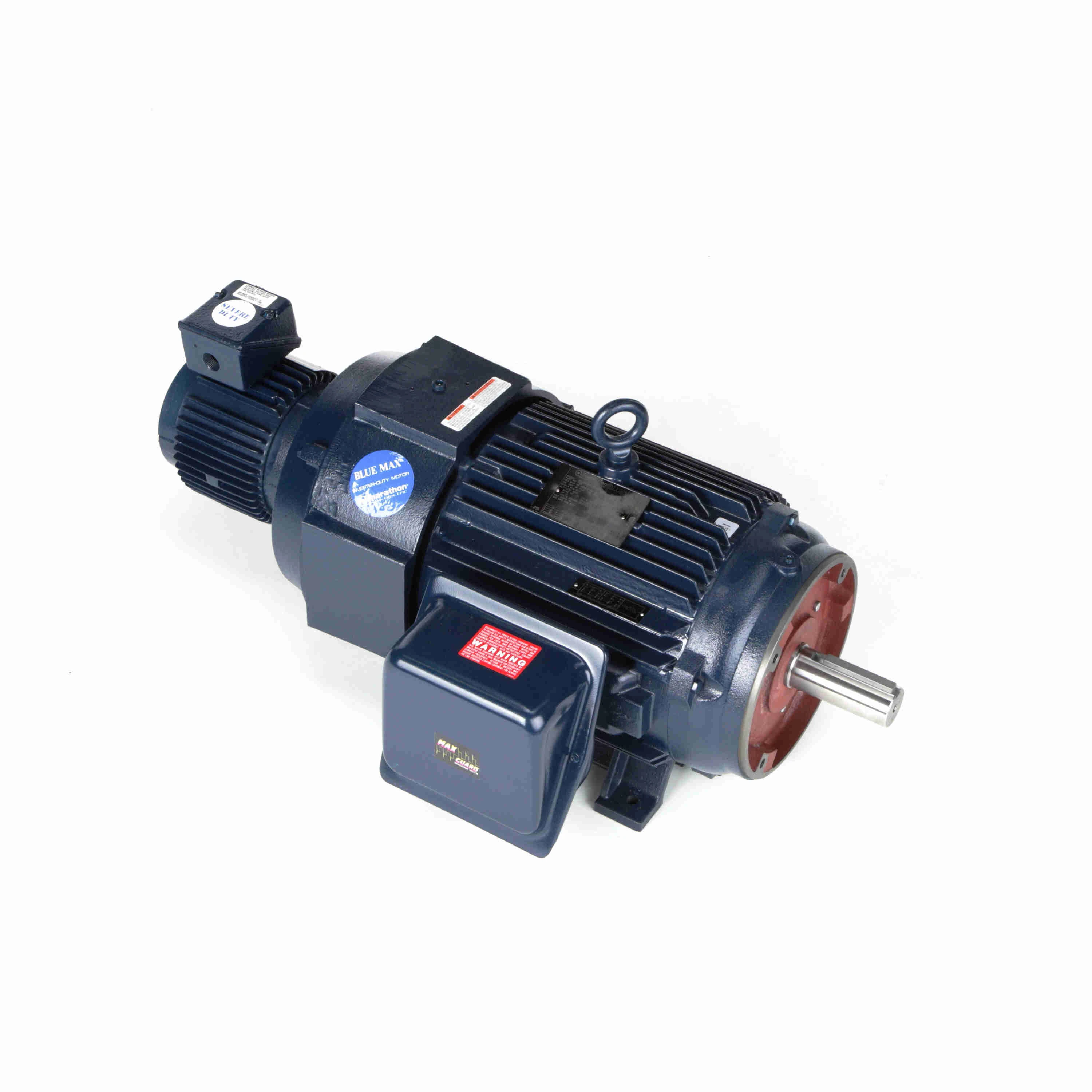

284THFPA8038 | 230/460V AC | 25 hp | 63/31.5A | 1 7/8" | 91.7% | 284TC | 91.7% | A | €10,268.95 | |
 |
286THFNA8028 | 230/460V AC | 30 hp | 77/38.5A | 1 7/8" | 93% | 286T | 93% | A | €9,391.96 | |
 |
286THFPA8038 | 230/460V AC | 30 hp | 74/37A | 1 7/8" | 91% | 286TC | 91% | A | €11,657.85 | |
 |
286THFPA8086 | 230/460V AC | 20 hp | 52.5/26.2A | 1 7/8" | 87.5% | 286TC | 87.5% | A | €14,815.81 | |
 |
324THFPA8028 | 230/460V AC | 40 hp | 100/50A | 2 1/8" | 95.4% | 324T | 95.4% | B | €11,198.03 |
