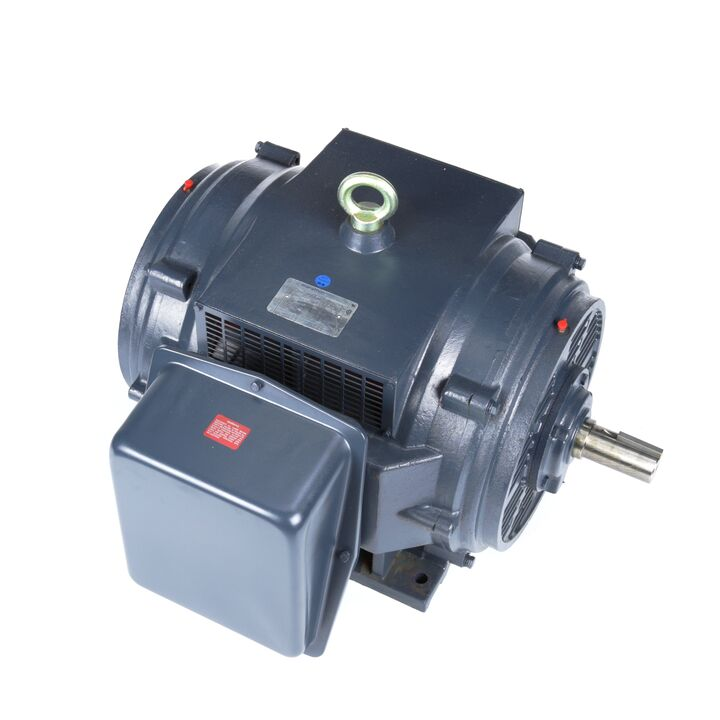

MARATHON MOTORS 404TSTDCD6060 GT0093A / 404TSTDCD6060CB General Purpose Motor, 100/75 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1800 RPM
Item: CH6JRYModel: 404TSTDCD6060Cross Ref: 454X76 / GT0093A / 404TSTDCD6060CB
In Stock
Get it by Friday, Jul 3
€10,131.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 95.4% |
| Efficiency Group | Premium |
| Frame | 404TS |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 228/114A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Included | Conduit Box |
| Insulation Class | Class F |
| Length Less Shaft | 29 5/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Cast Iron |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Nameplate Speed | 1788 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 95.4% |
| Overall Length | 33 7/8" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Length | 4 1/4" |
| Speed | 1701-1800 RPM |
| Thermal Protection | None |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 544.75 |
| Ship height (cm) | 69.85 |
| Ship length (cm) | 93.98 |
| Ship width (cm) | 81.28 |
| HS code | 8501534080 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Frequency | Full Load Amps | Hp | Ambient Temp. | Frame Material | Efficiency | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

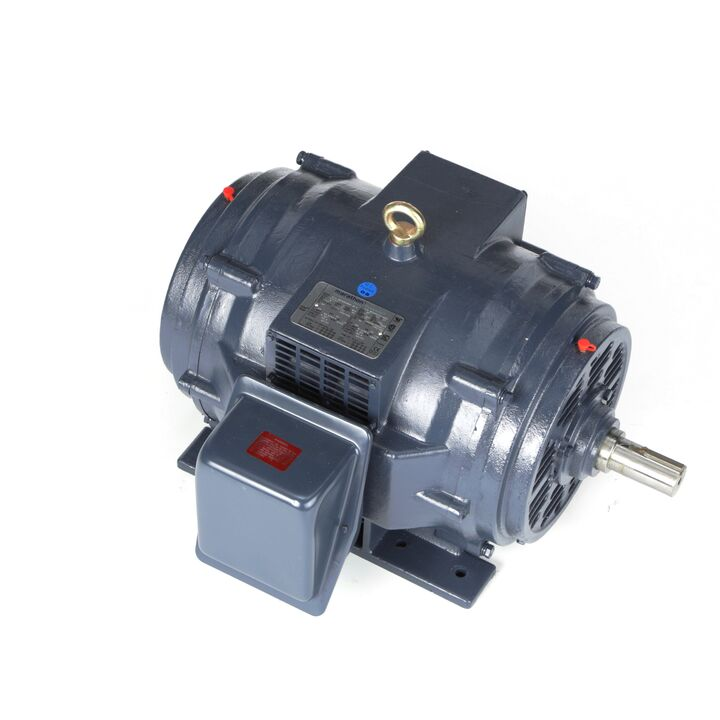

286TSTDBD6001 | 230/460V AC | 60 Hz | 93/46.5A | 40 hp | 104°F | Steel | 92.5% | 3 1/4" | €3,142.12 | |
 |

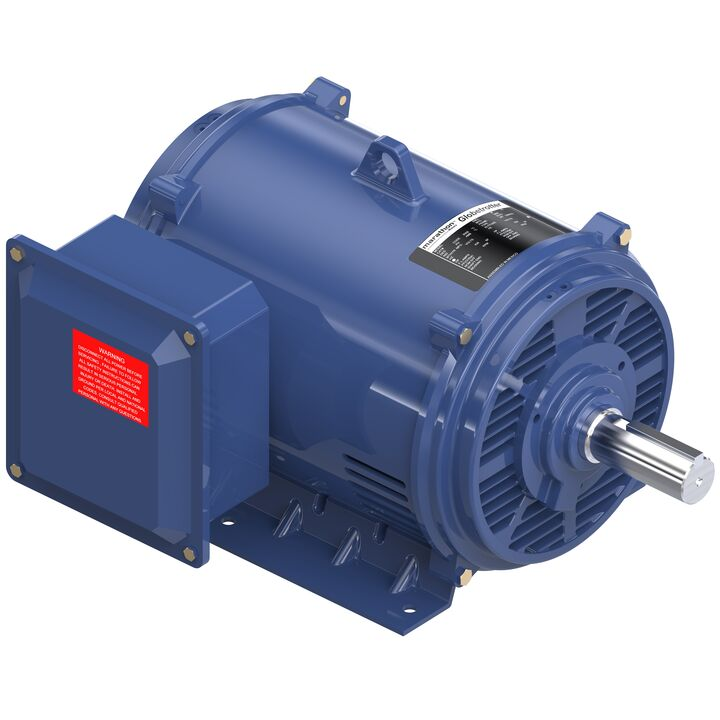

364TTDBD6060 | 230/460V AC | 60 Hz | 140/70A | 60 hp | 104°F | Steel | 95% | 5 7/8" | €5,829.35 | |
 |

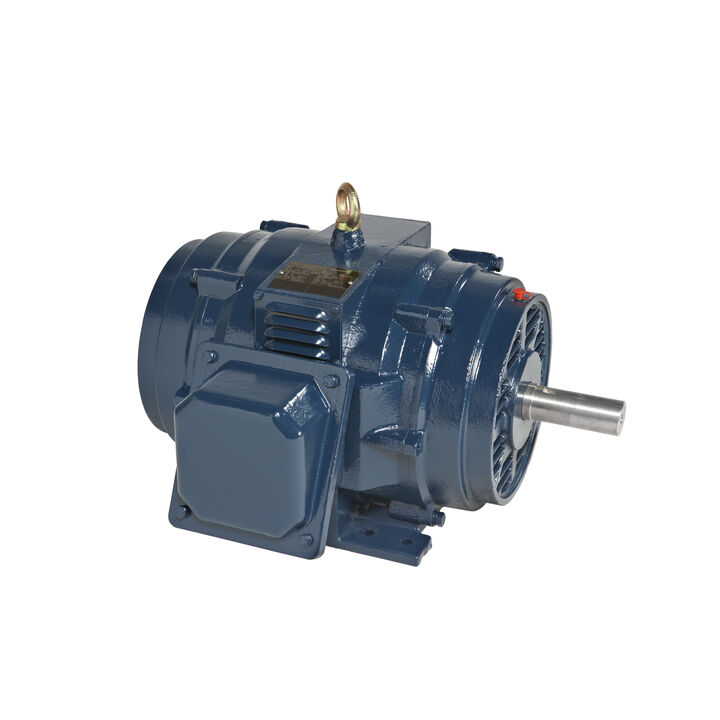

324TSTDBD6001 | 230/460V AC | 60 Hz | 115/57.5A | 50 hp | 104°F | Steel | 93% | 3 3/4" | €5,973.43 | |
 |
324TTDBD6026 | 230/460V AC | 60 Hz | 95.5/47.5A | 40 hp | 104°F | Steel | 94% | 5 1/4" | €3,377.97 | |
 |

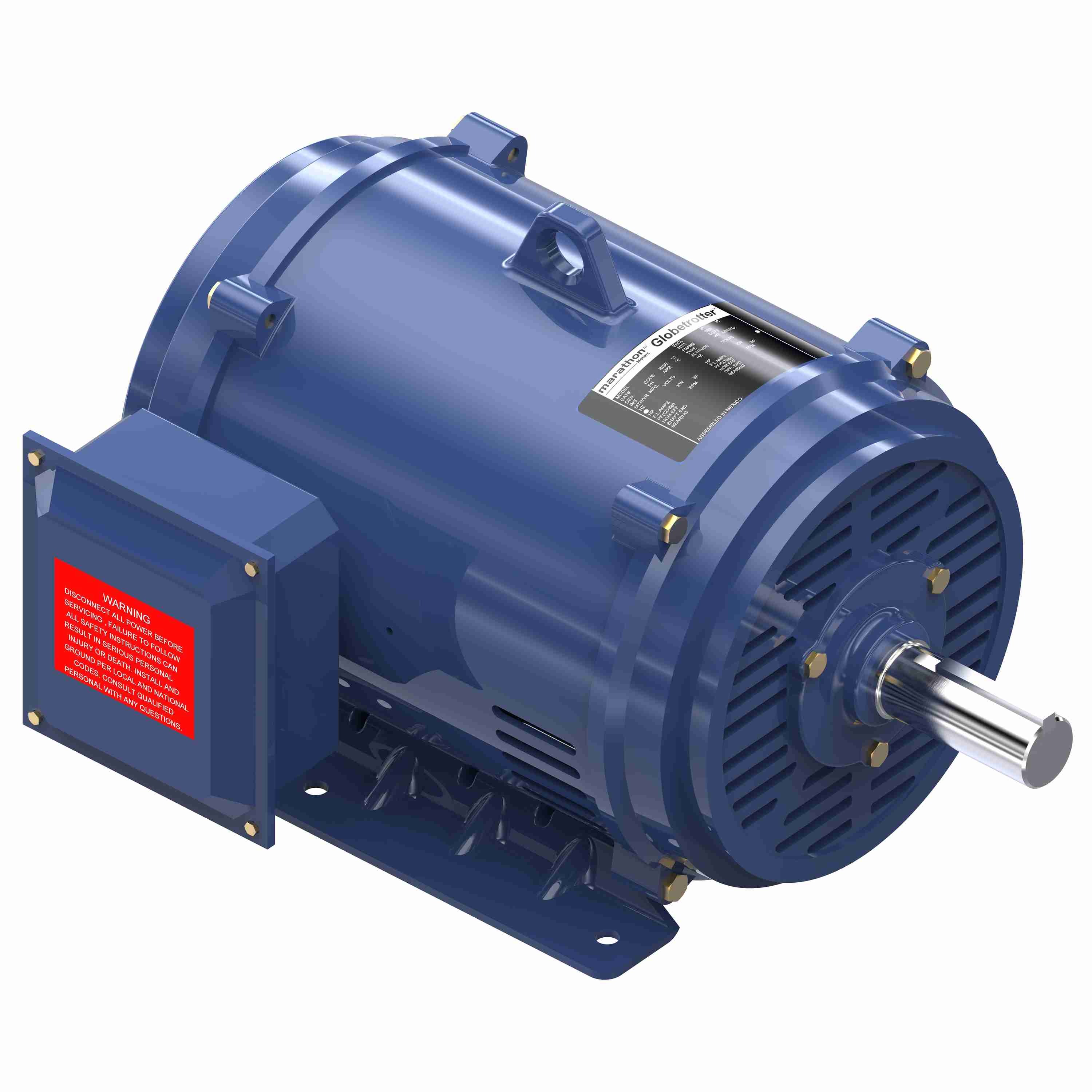

326TTDBD6076 | 230/460V AC | 60 Hz | 75/37.5A | 30 hp | 104°F | Steel | 93.5% | 5 1/4" | €5,913.04 | |
 |

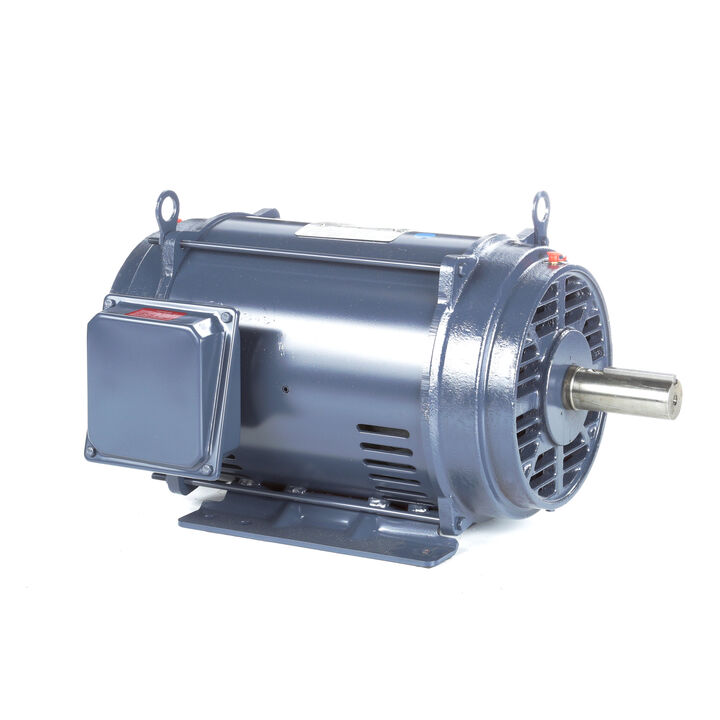

256TTDBD6026 | 230/460V AC | 60 Hz | 48.5/24.3A | 20 hp | 104°F | Steel | 93% | 4" | €2,570.42 | |
|
326TTDBD6026 | 230/460V AC | 60 Hz | 118/59A | 50 hp | 104°F | Steel | 94.5% | 5 1/4" | €3,643.09 |
