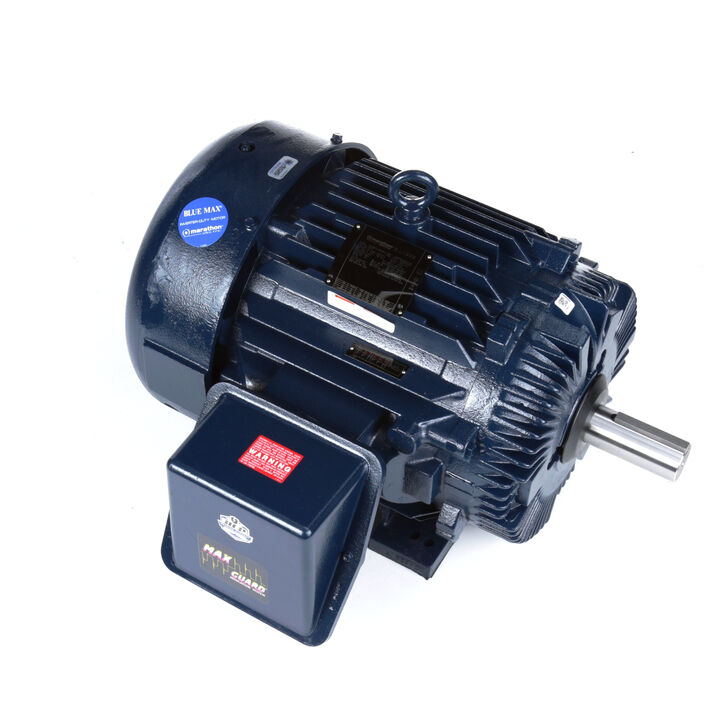

MARATHON MOTORS 365THFS8036 Y574 / 365THFS8036EU Inverter Duty Encoder Motor, 75 HP, 3 Phase, 60 Hz, 230/460 V, 1800 RPM
Get it by Wednesday, Apr 1
€20,228.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vector Motor |
| Ambient Temp. | 40°C |
| Application | Crane |
| Base | Rigid |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Bearings | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Constant Torque | 2000:1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 94.1% |
| Efficiency Group | Epact |
| Encoder Acceptable | Yes |
| Encoder Shaft | 1" x 1.75" |
| Encoder Shaft | 1" x 1-3/4" |
| Encoder Shaft Dimension | 1" x 1 3/4" |
| Encoder Shaft Dimensions | 1" x 1.75" |
| Finish | Enamel |
| Frame | 365T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 184/92A |
| Hp | 75 hp |
| Insulation Class | Class H |
| Insulation Feature | Class F |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 104°F |
| Max. Operating Frequency | 90 Hz |
| Max. Rpm | 1800 RPM |
| Motor Application | Crane |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T Stat |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1780 RPM |
| Nema Design | A |
| No. Of Speeds | 1 |
| Nominal Efficiency | 94.1% |
| Number Of Speeds | 1 |
| Overall Length | 34 11/16" |
| Phase | 3 |
| Service Factor | 1 |
| Shaft Dia. | 2 3/8" |
| Shaft Length | 6 1/8" |
| Speed Range | 2000:1 |
| Speed Ratio | 2000:1 |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 477.45 |
| Ship height (cm) | 68.4 |
| Ship length (cm) | 96.22 |
| Ship width (cm) | 80.98 |
| HS code | 8501528040 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Frame | Hp | Full Load Amps | Efficiency Group | Nominal Efficiency | Motor Thermal Protection | Nameplate Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
184THTS8028 | 230/460V AC | 182TC | 3 hp | 8/4A | Premium | 88.5% | T Stat | 1760 RPM | €2,403.94 | |
 |
284THFPA8028 | 230/460V AC | 284T | 25 hp | 63/31.5A | Epact | 91.7% | T Stat | 1765 RPM | €7,566.87 | |
 |
284THFPA8038 | 230/460V AC | 284TC | 25 hp | 63/31.5A | Epact | 91.7% | T Stat | 1765 RPM | €8,456.13 | |
 |
284THFPA8086 | 230/460V AC | 284TC | 25 hp | 63/31.5A | Epact | - | - | - | €12,202.24 | |
 |
286THFNA8028 | 230/460V AC | 286T | 30 hp | 77/38.5A | Epact | 93% | T Stat | 1776 RPM | €7,212.50 | |
 |
286THFPA8038 | 230/460V AC | 286TC | 30 hp | 74/37A | Epact | 91% | T Stat | 1765 RPM | €11,657.85 | |
 |
286THFPA8086 | 230/460V AC | 286TC | 20 hp | 52.5/26.2A | Epact | 87.5% | T Stat | 1160 RPM | €12,722.75 |
