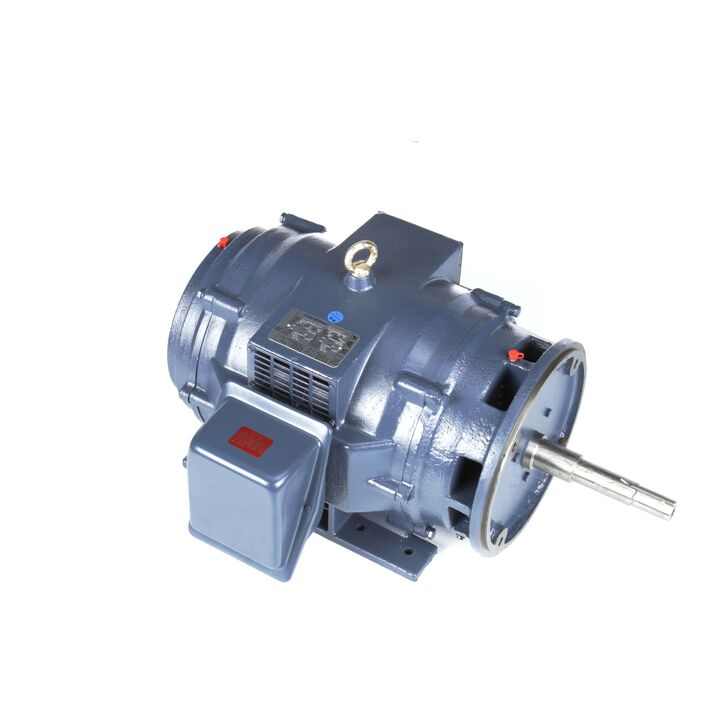

MARATHON MOTORS 286TTDBD6012 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 40 HP, 230/460VAC, F | CT2FNZ 32UR20

MARATHON MOTORS 286TTDBD6012 GT2472 / 286TTDBD6012BB Close Coupled Pump Motor, 40/30 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 3600 RPM

Item: CT2FNZModel: 286TTDBD6012Cross Ref: 32UR20 / GT2472 / 286TTDBD6012BB
Check Availability
In Stock

Get it by Wednesday, Dec 24

€6,572.15 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Ambient Temp. 40°C
Bearing Type Ball
Bolt Circle Dia. 11"
Cc Number CC003A
Conduit Box Location Exterior
Conduit Box Position F1, F2
Duty Cycle Continuous
Efficiency 92.4%
Frame 286JP
Frame Material Steel
Full Load Amps 93/46.5A
Height 15"
Hp 40 hp
Hz 60 Hz
Insulation Class Class F
Inverter Rated Yes
Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque
Length Less Shaft 21 13/16"
Max. Ambient Temp. 40°C
Motor Application Pump
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Open Dripproof
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face, Base
Motor Service Factor 1.15
Motor Shaft Design Keyed, Threaded
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Sub Application Close Coupled Pump
Motor Type Three Phase
Mounting Type Face/Base
Nameplate Rpm 3560 RPM
Nema Design B
No. Of Speeds 1
Nominal Efficiency 92.4%
Overall Height 15"
Overall Length 30 3/16"
Phase 3
Rpm Range 3001-3600 RPM
Service Factor 1.15
Shaft Dia. 1 1/4"
Shaft Length 8 1/2"
Thermal Protection None
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V AC
Weight 340 lbs.

Shipping Info:

Ship weight (kg) 153
Ship height (cm)71.48
Ship length (cm)80.7
Ship width (cm)71.2
HS code8501528040
Country of OriginMX

Product Variants

ProductModelVoltagePhaseNameplate RpmMotor Enclosure DesignHpFull Load AmpsMounting TypeService FactorPrice
MARATHON MOTORS 182TTDW17008 Close-Coupled Pump Motor, Open Dripproof, Face Mounting, 5 HP, 3, 500 Nameplate RPM | CT2FNL 53DF24 182TTDW17008208-230/460V AC33500 RPM-5 hp13.6-12.4/6.2AFace1.15€1,523.55
MARATHON MOTORS 256TTDBD6085 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 10 HP, 230/460VAC, F | CT2FNM 52JC64 256TTDBD6085230/460V AC31180 RPMOpen Dripproof10 hp25.6/12.8AFace/Base1.15€4,204.87
MARATHON MOTORS 286TTDBD6085 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 20 HP, 230/460VAC | CT2FNP 52JC66 286TTDBD6085230/460V AC31180 RPMOpen Dripproof20 hp52.5/26.3AFace/Base1.15€4,980.78
MARATHON MOTORS 256TTDBD6037 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 20 HP, 230/460VAC, F | CT2FNQ 32UR14 256TTDBD6037230/460V AC31770 RPMOpen Dripproof20 hp48.5/24.3AFace/Base1.15€3,568.12
MARATHON MOTORS 284TTDBD6037 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 25 HP, 230/460VAC | CT2FNR 32UR18 284TTDBD6037230/460V AC31775 RPMOpen Dripproof25 hp62.5/31AFace/Base1.15€5,143.51
MARATHON MOTORS 256TTDBD6012 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 25 HP, 230/460VAC, F | CT2FNT 32UR12 256TTDBD6012230/460V AC33560 RPMOpen Dripproof25 hp59.5/29.7AFace/Base1.15€3,417.97
MARATHON MOTORS 284TTDBD6032 Close-Coupled Pump Motor, Open Dripproof, Face/Base Mounting, 25 HP, 230/460VAC, F | CT2FNU 26ZY20 284TTDBD6032230/460V AC31775 RPMOpen Dripproof25 hp62.5/31AFace/Base1.15€5,143.51
