MARATHON MOTORS
See our 856 reviews on

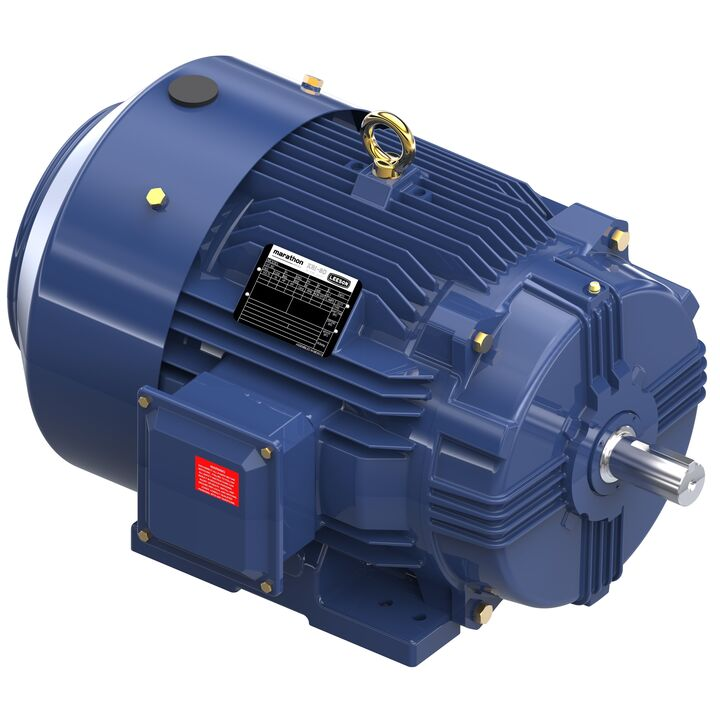

MARATHON MOTORS 286TSTFCD6026 General Purpose Motor, Totally Enclosed Fan-Cooled, Rigid Base Mount, 30 HP, Ball, F | CT2FRW 61VA67

MARATHON MOTORS 286TSTFCD6026 GT1058 / 286TSTFCD6026CB General Purpose Motor, 30/25 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM

Item: CT2FRWModel: 286TSTFCD6026Cross Ref: 61VA67 / GT1058 / 286TSTFCD6026CB
Check Availability
In Stock

Get it by Thursday, Dec 25

€4,591.24
10.00% off
€4,132.12 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 40°C
Bearing Type Ball
Duty Cycle Continuous
Efficiency 93.6%
Frame 286TS
Frame Material Cast Iron
Full Load Amps 71/35.5A
Hp 30 hp
Hz 60 Hz
Insulation Class Class F
Inverter Rated Yes
Length Less Shaft 23 1/2"
Max. Ambient Temp. 40°C
Motor Application General Application
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Cast Iron
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation Counter Clockwise Shaft End
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 1770 RPM
No. Of Speeds 1
Nominal Efficiency 93.6%
Overall Length 26 3/4"
Phase 3
Rpm Range 1701-1800 RPM
Service Factor 1.15
Shaft Dia. 1 5/8"
Shaft Length 3 1/4"
Thermal Protection None
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V AC
Weight 410 lbs.

Shipping Info:

Ship weight (kg) 184.56
Ship height (cm)71.48
Ship length (cm)80.7
Ship width (cm)71.2
HS code8501528040
Country of OriginMX

Product Variants

ProductModelHpFull Load AmpsService FactorVoltageMounting TypeNameplate RpmFrequencyFramePrice
MARATHON MOTORS 056T34D15599 General Purpose Motor, Open Dripproof, Rigid Base Mount, 1 1/2 HP, 230/460 VAC, Ball | CT2FQK 40LM08 056T34D155991 1/2 hp4.2/2.1A1.15230/460V ACRigid Base3450 RPM-56€571.04
MARATHON MOTORS 184TTDBD6101 General Purpose Motor, Open Dripproof, Rigid Base Mount, 1 1/2 HP, 865 Nameplate RPM | CT2FQL 61KJ17 184TTDBD61011 1/2 hp, 1 hp2.8A1.15190/230/380/460VRigid Base865 RPM50/60 Hz184T€1,616.73
MARATHON MOTORS 056T17DRR70021A1 General Purpose Motor, Open Dripproof, Rigid Base Mount, 1/2 HP, 1725 Nameplate RPM | CT2FQR 54JH48 056T17DRR70021A11/2 hp1.7-1.8/0.9A1.25208-230/460V ACRigid Base1725 RPM-56€632.15
MARATHON MOTORS 256TTDBD6076 General Purpose Motor, Open Dripproof, Rigid Base Mount, 10 HP, 1182 Nameplate RPM | CT2FQW 454X52 256TTDBD607610 hp25.6/12.8A1.15230/460V ACRigid Base1182 RPM-256T€3,605.92
MARATHON MOTORS 365TSTDBD6001 General Purpose Motor, Open Dripproof, Rigid Base Mount, 100 HP, 3568 Nameplate RPM | CT2FQX 454X75 365TSTDBD6001100 hp228/114A1.15230/460V ACRigid Base3568 RPM-365TS€7,605.33
MARATHON MOTORS 286TTDBD6076 General Purpose Motor, Open Dripproof, Rigid Base Mount, 20 HP, 1182 Nameplate RPM | CT2FQZ 454X56 286TTDBD607620 hp52.5/26.3A1.15230/460V ACRigid Base1182 RPM-286T€4,530.75
MARATHON MOTORS 254TTDBD6001 General Purpose Motor, Open Dripproof, Rigid Base Mount, 20 HP, 3552 Nameplate RPM | CT2FRA 454X54 254TTDBD600120 hp48/24A1.15230/460V ACRigid Base3552 RPM-254T€3,211.89
