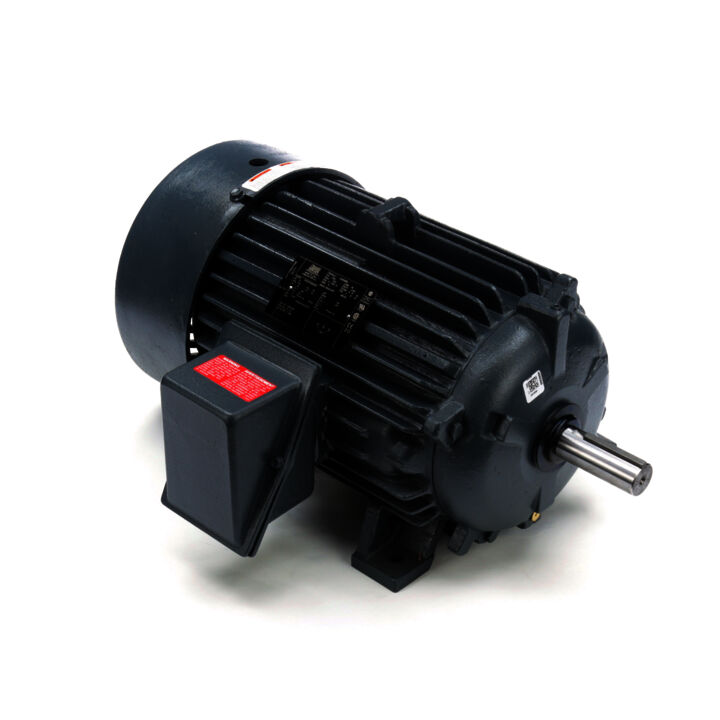

MARATHON MOTORS 215TTFBD6033 GT3219A / 215TTFBD6033BC Close Coupled Pump Motor, 10 HP, 3 Phase, 60 Hz, 575V, 1800 RPM
Item: CD2LJVModel: 215TTFBD6033Cross Ref: 52NU26 / GT3219A / 215TTFBD6033BC
In Stock
Get it by Thursday, Dec 25
10.00% off
€2,149.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Bearing Type | Ball |
| Body Dia. | 9 1/2" |
| Bolt Circle Dia. | 7 1/4" |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Efficiency | 92.1% |
| Efficiency Group | Premium |
| Frame Material | Steel |
| Frame Size | 215JM |
| Frame Type | 215JM |
| Frequency | 60 Hz |
| Full Load Amps | 10A |
| Height | 11" |
| Hp | 10 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 |
| Length Less Shaft | 17 5/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Close Coupled Pump |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1760 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 92.1% |
| Number | CC003A |
| Overall Height | 11" |
| Overall Length | 21 7/8" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4 1/4" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 575V AC |
| Weight | 171 lbs. |
Shipping Info:
| Ship weight (kg) | 76.77 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 63.5 |
| Ship width (cm) | 38.1 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Rpm Range | Nameplate Rpm | Shaft Dia. | Frame Material | Overall Length | Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
284TTFCD6006 | 230/460V AC | 25 hp | 3001-3600 RPM | 3555 RPM | 1 1/4" | Cast Iron | 27 1/2" | 91.7% | €3,736.58 | |
 |
284TTFCD6032 | 230/460V AC | 25 hp | 1701-1800 RPM | 1775 RPM | 1 3/8" | Cast Iron | 27 1/2" | 93.6% | €5,555.88 | |
 |
256TTFL16004 | 230/460V AC | 20 hp | 3001-3600 RPM | 3540 RPM | 1 1/4" | Aluminum | 27 1/4" | 92.4% | €5,142.64 | |
 |
213TTFBD6006 | 230/460V AC | 7 1/2 hp | 3001-3600 RPM | 3520 RPM | 7/8" | Steel | 20 1/4" | 90.2% | €1,691.93 | |
 |
213TTFBD6031 | 230/460V AC | 7 1/2 hp | 1701-1800 RPM | 1770 RPM | 7/8" | Steel | 20 1/4" | 93.3% | €1,839.96 | |
 |
215TTFBD6006 | 230/460V AC | 10 hp | 3001-3600 RPM | 3520 RPM | 7/8" | Steel | 21 7/8" | 90.2% | €3,020.36 | |
 |
215TTFBD6031 | 230/460V AC | 10 hp | 1701-1800 RPM | 1760 RPM | 7/8" | Steel | 21 7/8" | 92.1% | €2,398.72 |
