MARATHON MOTORS Close-Coupled Pump Motors, JM, Three Phase, TEFC
Marathon close-coupled pump( CCP) motors are suitable for industrial and commercial pumping applications. These motors are totally enclosed with an IP55 rating to prevent dust and water jets.
Filter
A
B
C
D
E
F
G
H| Style | Model | Voltage | Hp | Shaft Dia. | Frame Material | Overall Length | Efficiency | Shaft Length | Motor Shaft Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 256TTFL16004 | 230/460V AC | 20 hp | 1 1/4" | Aluminum | 27 1/4" | 92.4% | 5 1/4" | Keyed, Threaded | €5,142.64 | |
| B | 213TTFBD6006 | 230/460V AC | 7 1/2 hp | 7/8" | Steel | 20 1/4" | 90.2% | 4 1/4" | JM Threaded | €1,774.83 | |
| C | 284TTFCD6032 | 230/460V AC | 25 hp | 1 3/8" | Cast Iron | 27 1/2" | 93.6% | 5 1/2" | Keyed | €5,555.88 | |
| D | 213TTFBD6031 | 230/460V AC | 7 1/2 hp | 7/8" | Steel | 20 1/4" | 93.3% | 4 1/4" | JM Threaded | €1,999.80 | |
| E | 215TTFBD6006 | 230/460V AC | 10 hp | 7/8" | Steel | 21 7/8" | 90.2% | 4 1/4" | JM Threaded | €3,020.36 | |
| F | 284TTFCD6006 | 230/460V AC | 25 hp | 1 1/4" | Cast Iron | 27 1/2" | 91.7% | 5 1/2" | JM Threaded | €4,977.83 | |
| G | 215TTFBD6031 | 230/460V AC | 10 hp | 7/8" | Steel | 21 7/8" | 92.1% | 4 1/4" | JM Threaded | €2,122.99 | |

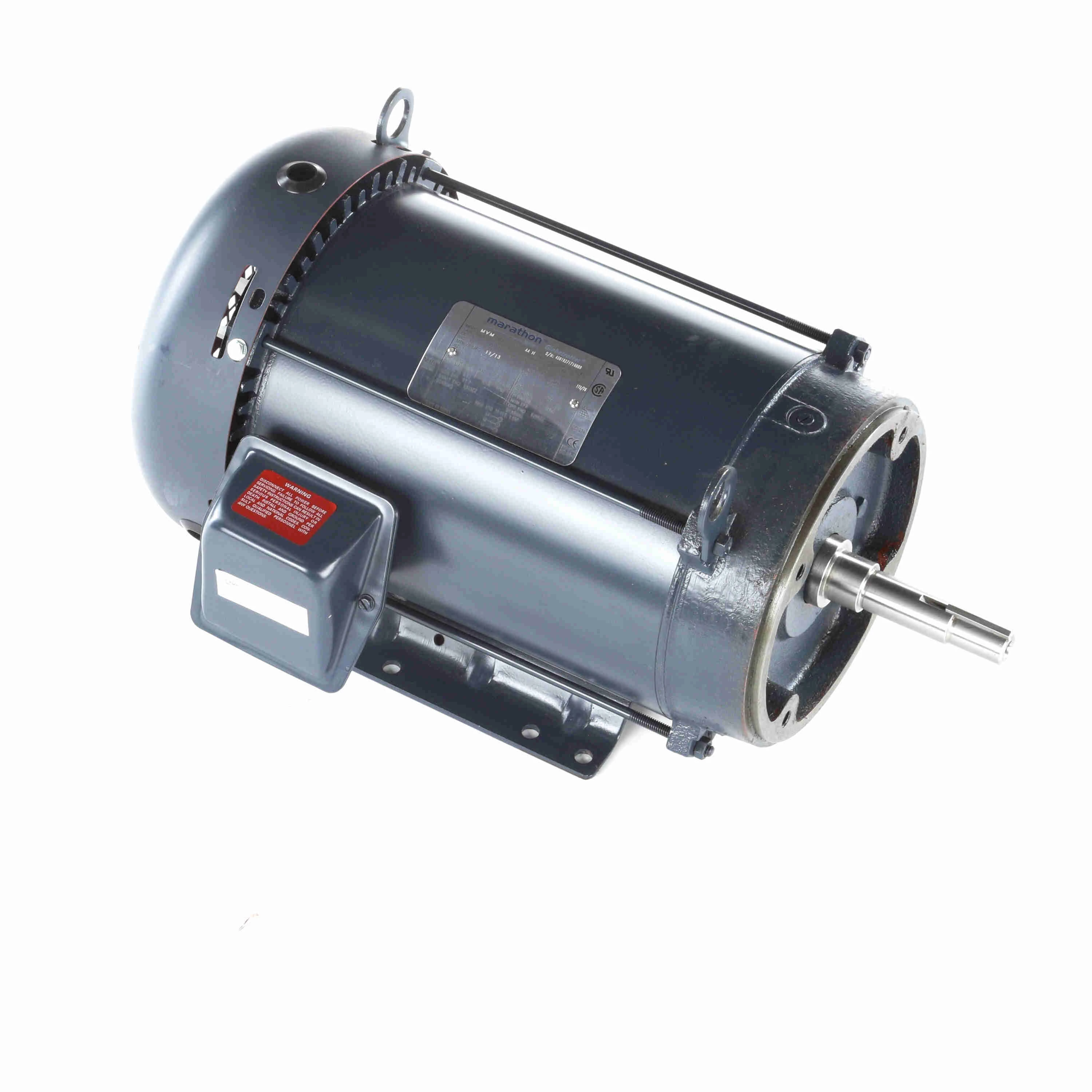

| H | 215TTFBD6033 | 575V AC | 10 hp | 7/8" | Steel | 21 7/8" | 92.1% | 4 1/4" | Keyed | €2,220.97 |
Features
- They come with lubricated ball bearings (mechanically locked on the shaft end) to exhibit frictional loss and provide extended service life.
- These motors feature a three-phase design to offer a maximum speed rating of 3560 rpm at 60 Hz.
- They offer continuous-duty operation to carry the maximum constant load without exceeding the stated temperature.
Standards and Approvals
- CSA
- UL
- CE
Frequently Asked Questions
What is the use of a steel conduit box?
CCP motors come equipped with a steel conduit box for encasing wire connections safely to prevent accidental contact.
What is the advantage of a rigid base?
Rigid base mounting prevents excessive vibrations and noise generated by the internal combustion operation. This type of mounting also allows accurate alignment between the motor and the surrounding mechanisms.
What is Class F insulation?
These motors feature Class F insulation that is ideal for withstanding a maximum temperature of 155 degrees C and allows up to 80 degrees C temperature rise.
