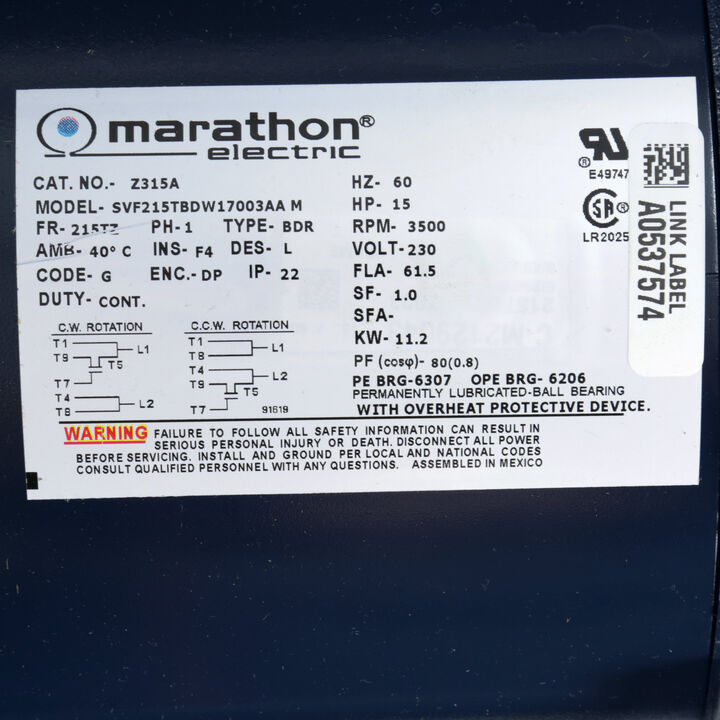

MARATHON MOTORS 215TBDW17003 215TBDW17003AA / Z315A Crop Dryer Motor, 10 and 15 HP, 1 Phase, 60 Hz, 230 and 230V, 3600 and 3600 RPM
Get it by Wednesday, Dec 24
10.00% off
€2,375.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Crop Dryer Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor Required | Included |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Finish | Enamel |
| Frame | 215TZ |
| Frame Material | Steel |
| Full Load Amps | 39.5A |
| Hp | 10 hp |
| Hz | 60 Hz |
| Insulation Class | Class F |
| Length Less Shaft | 15 13/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Crop Dryer |
| Motor Thermal Protection | T Stat |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3455 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Number Of Speeds | 1 |
| Overall Length | 20 7/16" |
| Phase | Single |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 4 5/8" |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| Weight | 137 lbs. |
Shipping Info:
| Ship weight (kg) | 61.65 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 56.36 |
| Ship width (cm) | 41.91 |
| Country of Origin | MX |
