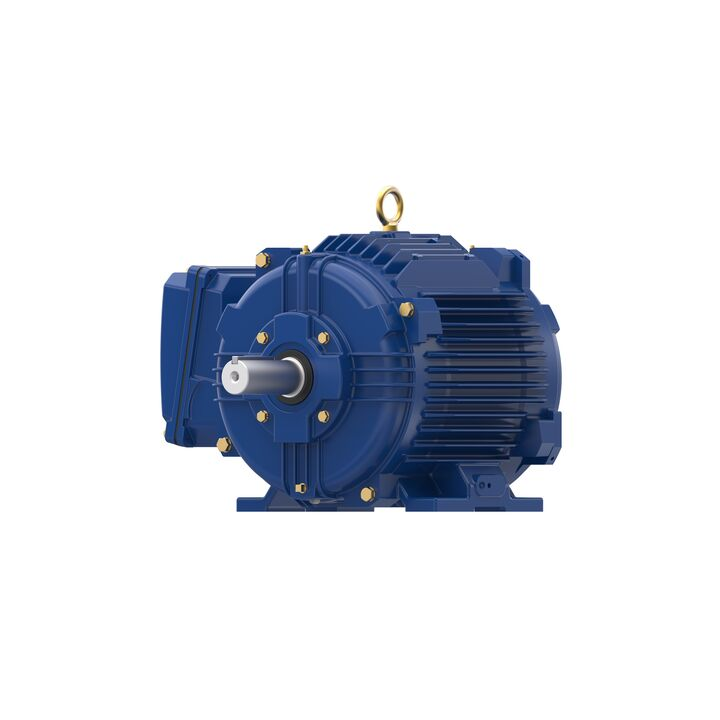

MARATHON MOTORS 213TTTCD6501 E603B / 213TTTCD6501AA Severe Duty Motor, 7.50 HP, 3 Phase, 60 Hz, 460V, 3600 RPM
Get it by Monday, Dec 22
10.00% off
€1,809.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Severe Duty Motor |
| Ambient Temp. | 40°C |
| Amps | 8.7A |
| Assembly/box Mounting | F1, F2 |
| Bearing Type | Ball |
| Bearings | Ball |
| Cc Number | CC003A |
| Design Code | B |
| Drive End Bearing Size | 6308 |
| Drive End Bearing Type | Ball |
| Duty | Continuous Duty |
| Duty Cycle | Continuous |
| Efficiency | 91% |
| Electrical Type | Squirrel Cage Inverter Rated |
| Enclosure Type | Tenv |
| Frame | 213T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 8.9A |
| Hazardous Location | Division 2 T2B |
| Hp | 7 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class H |
| Inverter Load | 1 |
| Inverter Rated | Yes |
| Ip Rating | IP55 |
| Kva Code | H |
| Length Less Shaft | 14" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3525 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91% |
| Number Of Speeds | 1 |
| Opp Drive End Bearing | Ball |
| Opp Drive End Bearing Size | 6208 |
| Output Kw | 5.6 kW |
| Overall Length | 17 1/2" |
| Phase | 3 |
| Power Factor | 86.8 |
| Resistance | 1.407 ohms |
| Rotation | Reversible |
| Rpm | 3525 RPM |
| Rpm Range | Over 3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1.375" |
| Shaft Length | 3 1/2" |
| Shaft Type | T |
| Starting Method | Line, Inverter |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V |
Shipping Info:
| Ship weight (kg) | 79.2 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 67.31 |
| Ship width (cm) | 45.72 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Full Load Amps | Service Factor | Voltage | Mounting Type | Nameplate Rpm | Frequency | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T34D15599 | 1 1/2 hp | 4.2/2.1A | 1.15 | 230/460V AC | Rigid Base | 3450 RPM | - | 56 | €571.04 | |
 |
184TTDBD6101 | 1 1/2 hp, 1 hp | 2.8A | 1.15 | 190/230/380/460V | Rigid Base | 865 RPM | 50/60 Hz | 184T | €1,616.73 | |
 |
056T17DRR70021A1 | 1/2 hp | 1.7-1.8/0.9A | 1.25 | 208-230/460V AC | Rigid Base | 1725 RPM | - | 56 | €632.15 | |
 |
256TTDBD6076 | 10 hp | 25.6/12.8A | 1.15 | 230/460V AC | Rigid Base | 1182 RPM | - | 256T | €3,605.92 | |
 |
365TSTDBD6001 | 100 hp | 228/114A | 1.15 | 230/460V AC | Rigid Base | 3568 RPM | - | 365TS | €7,605.33 | |
 |
286TTDBD6076 | 20 hp | 52.5/26.3A | 1.15 | 230/460V AC | Rigid Base | 1182 RPM | - | 286T | €4,530.75 | |
|
254TTDBD6001 | 20 hp | 48/24A | 1.15 | 230/460V AC | Rigid Base | 3552 RPM | - | 254T | €3,211.89 |
