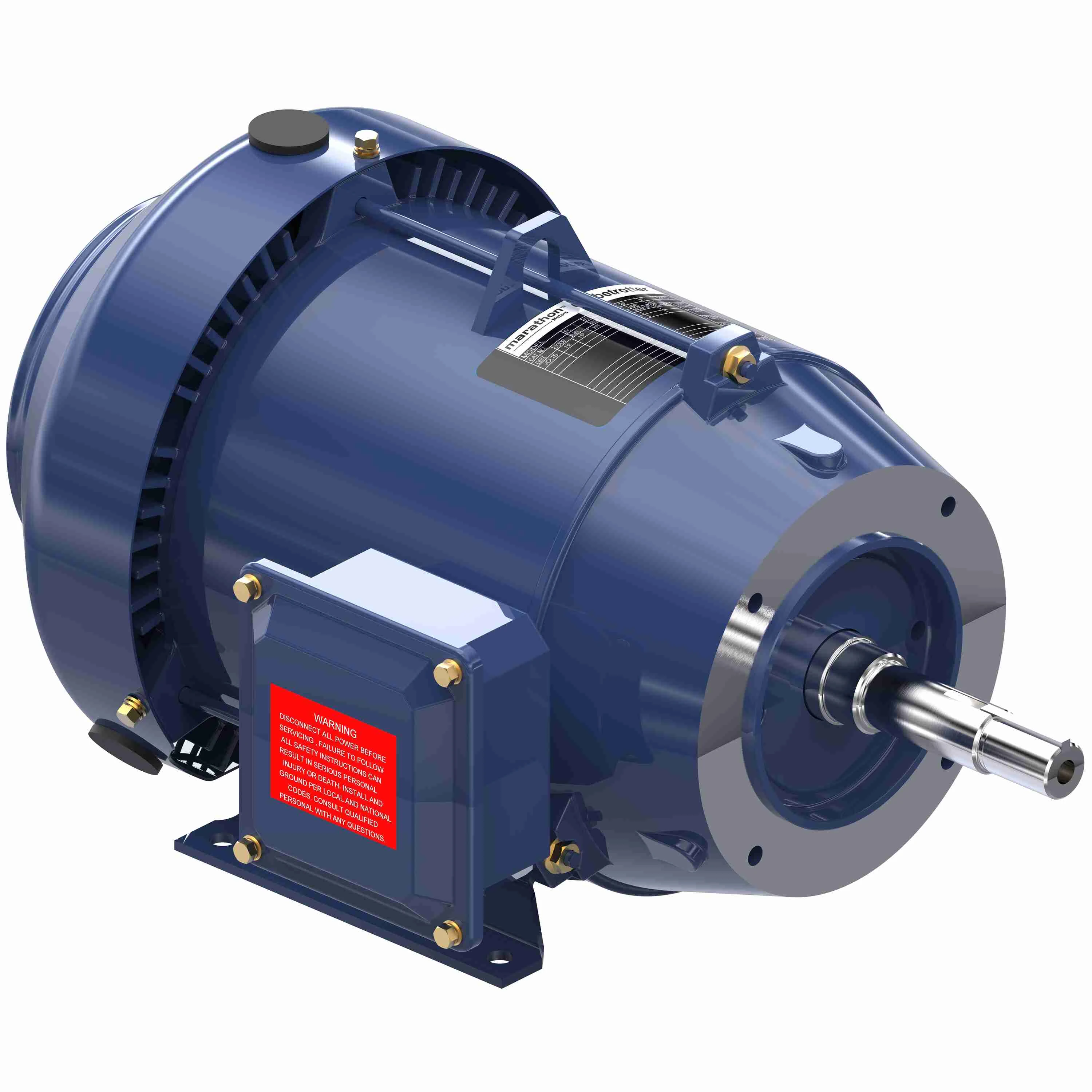

MARATHON MOTORS 184TTFBD6031 GT3113A / 184TTFBD6031CB Close Coupled Pump Motor, 5/3 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Item: CT2FPDModel: 184TTFBD6031Cross Ref: 52NU17 / GT3113A / 184TTFBD6031CB
In Stock
Get it by Wednesday, Dec 24
10.00% off
€1,201.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Efficiency | 89.5% |
| Frame | 184JM |
| Frame Material | Steel |
| Full Load Amps | 13.2/6.6A |
| Height | 9 13/16" |
| Hp | 5 hp |
| Hz | 60 Hz |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 |
| Length Less Shaft | 14 1/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Close Coupled Pump |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1765 RPM |
| Nema Design | A |
| No. Of Speeds | 1 |
| Nominal Efficiency | 89.5% |
| Overall Height | 9 13/16" |
| Overall Length | 18 3/8" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/4" |
| Shaft Length | 4 1/4" |
| Standards | Ce, Csa, Ul Listed |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Weight | 114 lbs. |
Shipping Info:
| Ship weight (kg) | 51.3 |
| Ship height (cm) | 32.59 |
| Ship length (cm) | 54.36 |
| Ship width (cm) | 40.01 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Phase | Nameplate Rpm | Motor Enclosure Design | Hp | Full Load Amps | Mounting Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
182TTDW17008 | 208-230/460V AC | 3 | 3500 RPM | - | 5 hp | 13.6-12.4/6.2A | Face | 1.15 | €1,523.55 | |
 |
256TTDBD6085 | 230/460V AC | 3 | 1180 RPM | Open Dripproof | 10 hp | 25.6/12.8A | Face/Base | 1.15 | €4,204.87 | |
 |
286TTDBD6085 | 230/460V AC | 3 | 1180 RPM | Open Dripproof | 20 hp | 52.5/26.3A | Face/Base | 1.15 | €4,980.78 | |
 |
256TTDBD6037 | 230/460V AC | 3 | 1770 RPM | Open Dripproof | 20 hp | 48.5/24.3A | Face/Base | 1.15 | €3,568.12 | |
 |
284TTDBD6037 | 230/460V AC | 3 | 1775 RPM | Open Dripproof | 25 hp | 62.5/31A | Face/Base | 1.15 | €5,143.51 | |
 |
256TTDBD6012 | 230/460V AC | 3 | 3560 RPM | Open Dripproof | 25 hp | 59.5/29.7A | Face/Base | 1.15 | €3,417.97 | |
 |
284TTDBD6032 | 230/460V AC | 3 | 1775 RPM | Open Dripproof | 25 hp | 62.5/31A | Face/Base | 1.15 | €5,143.51 |
