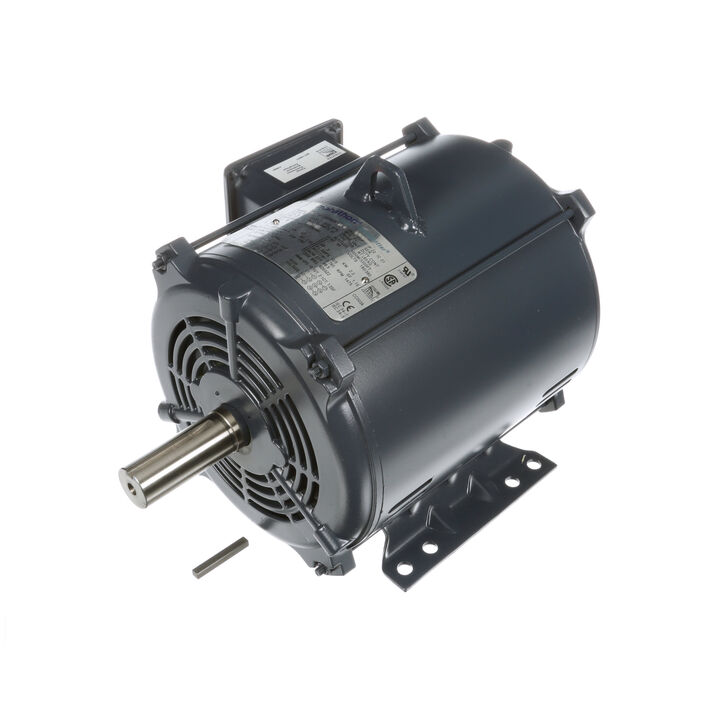

MARATHON MOTORS 184TTDBD6026 GT0013A / 184TTDBD6026CC General Purpose Motor, 5/3 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1800 RPM
Item: CH6HYZModel: 184TTDBD6026Cross Ref: 44N958 / GT0013A / 184TTDBD6026CC
In Stock
Get it by Wednesday, Dec 24
10.00% off
€1,016.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 122°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 88.5% |
| Efficiency Group | Premium |
| Frame | 184T |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.2/6.6A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hp | 5 hp |
| Includes | Conduit Box |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 10 1/2" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 50°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1765 RPM |
| Nema Design | A |
| No. Of Speeds | 1 |
| Nominal Efficiency | 88.5% |
| Overall Length | 13 1/4" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Standards | Csa, Ul |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Weight | 91 lbs. |
Shipping Info:
| Ship weight (kg) | 34.73 |
| Ship height (cm) | 39.75 |
| Ship length (cm) | 37.13 |
| Ship width (cm) | 32.36 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Frequency | Full Load Amps | Hp | Ambient Temp. | Frame Material | Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
286TSTDBD6001 | 230/460V AC | 3562 RPM | 60 Hz | 93/46.5A | 40 hp | 104°F | Steel | 92.5% | €3,927.65 | |
 |
364TTDBD6060 | 230/460V AC | 1782 RPM | 60 Hz | 140/70A | 60 hp | 104°F | Steel | 95% | €7,286.69 | |
 |
324TSTDBD6001 | 230/460V AC | 3565 RPM | 60 Hz | 115/57.5A | 50 hp | 104°F | Steel | 93% | €5,973.43 | |
 |
324TTDBD6026 | 230/460V AC | 1780 RPM | 60 Hz | 95.5/47.5A | 40 hp | 104°F | Steel | 94% | €4,222.46 | |
|
326TTDBD6076 | 230/460V AC | 1188 RPM | 60 Hz | 75/37.5A | 30 hp | 104°F | Steel | 93.5% | €5,913.04 | |
 |
256TTDBD6026 | 230/460V AC | 1770 RPM | 60 Hz | 48.5/24.3A | 20 hp | 104°F | Steel | 93% | €3,213.03 | |
|
326TTDBD6026 | 230/460V AC | 1780 RPM | 60 Hz | 118/59A | 50 hp | 104°F | Steel | 94.5% | €4,553.86 |
