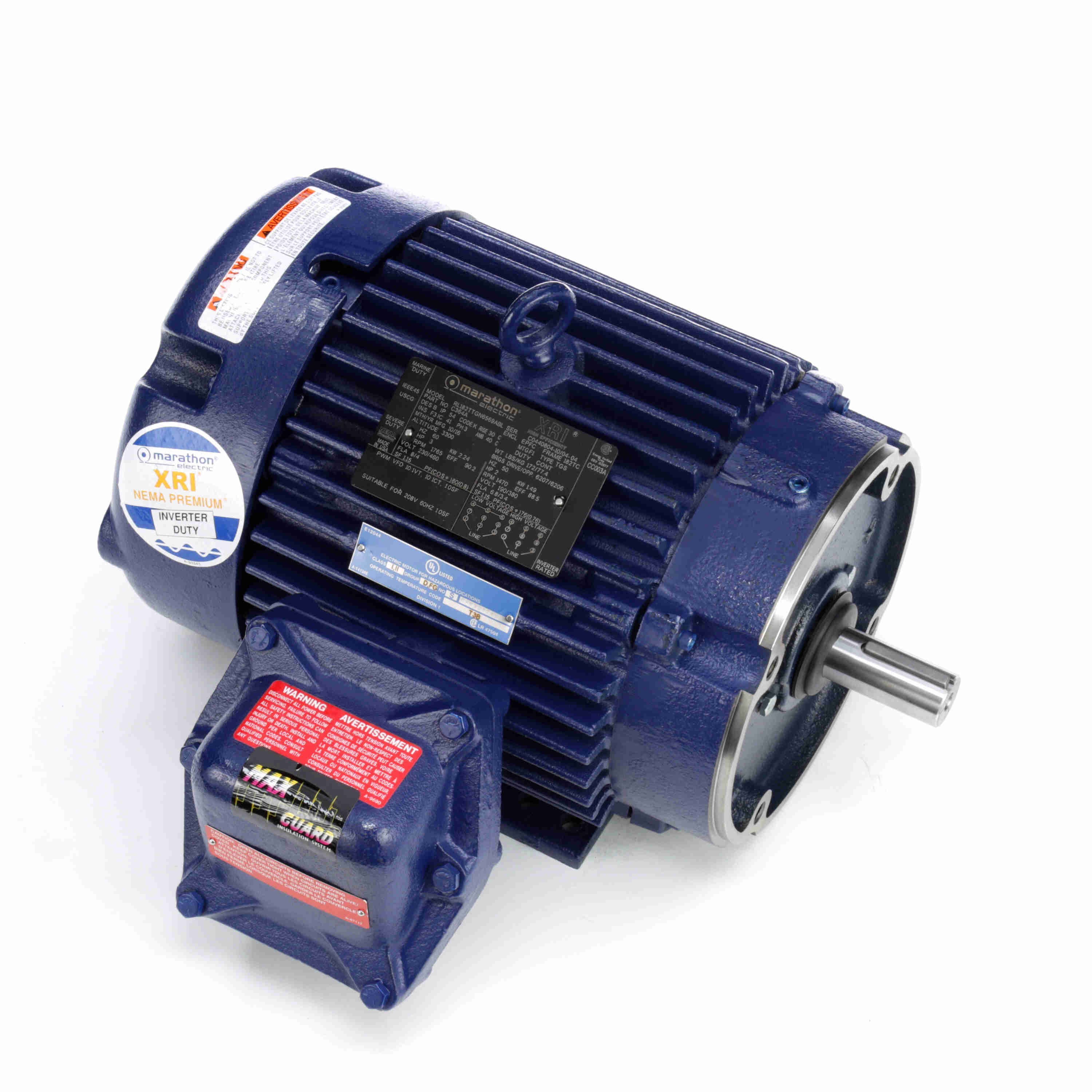

MARATHON MOTORS 182TTGCD6569 C364B / 182TTGCD6569AA Hazardous Location Motor, 3 Phase, TEFC, 3 HP, T3B
Get it by Tuesday, Aug 25
€1,703.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Amps | 4/8A |
| Cc No. | CC003A |
| Conduit Box Location | Exterior |
| Efficiency | 89.5% |
| Enclosure Type | Explosion Proof, Fan Cooled |
| Frequency | 60 Hz |
| Full Load Amps | 8/4A |
| Hazardous Location Division | Division I |
| Hp | 3 hp |
| Includes | (11) Leads In Conduit Box |
| Lead Length | 8" |
| Length Less Shaft | 14" |
| Max. Ambient Temp. | 50°C |
| Max. Speed | 1762 RPM |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counterclockwise |
| Motor Thermal Protection | T STAT |
| Nameplate Speed | 1765 RPM |
| Nema Design | B |
| Nominal Efficiency | 90.2% |
| Overall Length | 16 5/8" |
| Phase | 3 |
| Rotation | Reversible |
| Shaft Design | T |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 5/8" |
| Speed | 1701-1800 RPM |
| Temp. Code | T3B |
| Thermal Protection | Thermostat |
| Type | Explosion Proof Motor |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 65.25 |
| Ship height (cm) | 40.64 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 48.26 |
| Country of Origin | MX |
