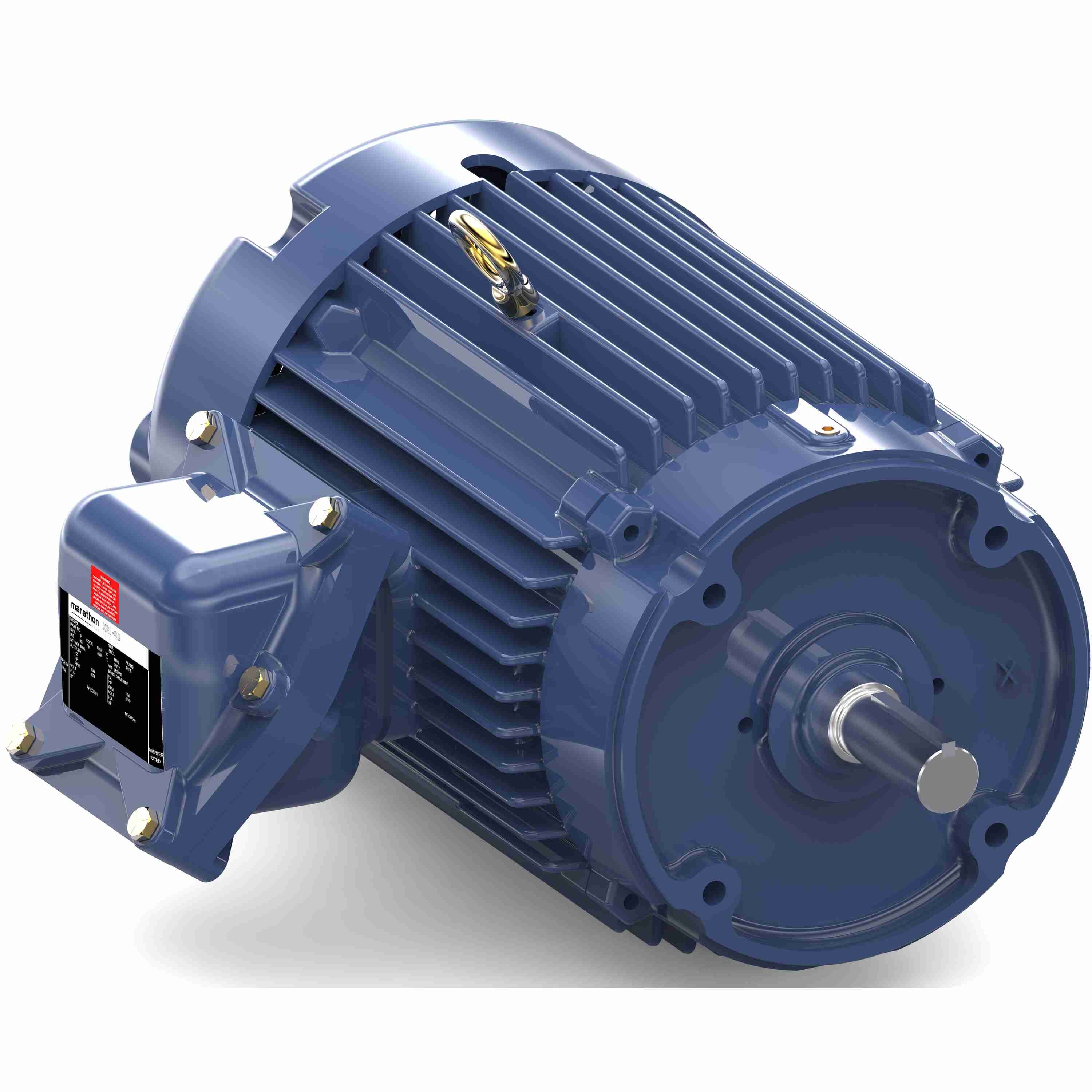

MARATHON MOTORS 182TTGCD4068 C323B / 182TTGCD4068AA Hazardous Location Motor, 3 Phase, TEFC, 3 HP, T3B
Get it by Tuesday, Aug 25
€1,658.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Ambient Temp. | 50°C |
| Amps | 3.4/4/6.8/8A |
| Assembly/box Mounting | F1 |
| Design Code | B |
| Drive End Bearing Size | 6207 |
| Drive End Bearing Type | Ball |
| Duty | Continuous Duty |
| Efficiency | 89.5%, 85.5% |
| Electrical Type | Squirrel Cage Inverter Rated |
| Enclosure Type | EPFC |
| Frame Material | Cast Iron |
| Frame Size | 182TC |
| Frequency | 50/60 Hz |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hp | 3 hp, 2 hp |
| Insulation Class | Class F |
| Inverter Load | 1 |
| Ip Rating | IP54 |
| Kva Code | K |
| Motor Orientation | Horizontal |
| Mounting Type | Round |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing | Ball |
| Opp Drive End Bearing Size | 6206 |
| Output Kw | 2.2/1.5 kW |
| Phase | 3 |
| Power Factor | 78 |
| Resistance | 4.15 ohms |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Dia. | 1.125" |
| Shaft Type | T |
| Speed | 1762/1468 RPM |
| Starting Method | Line, Inverter |
| Thermal Protection | Thermostat |
| Voltage | 190/230/380/460V |
Shipping Info:
| Ship weight (kg) | 67.95 |
| Ship height (cm) | 40.64 |
| Ship length (cm) | 63.5 |
| Ship width (cm) | 50.8 |
| Country of Origin | MX |
