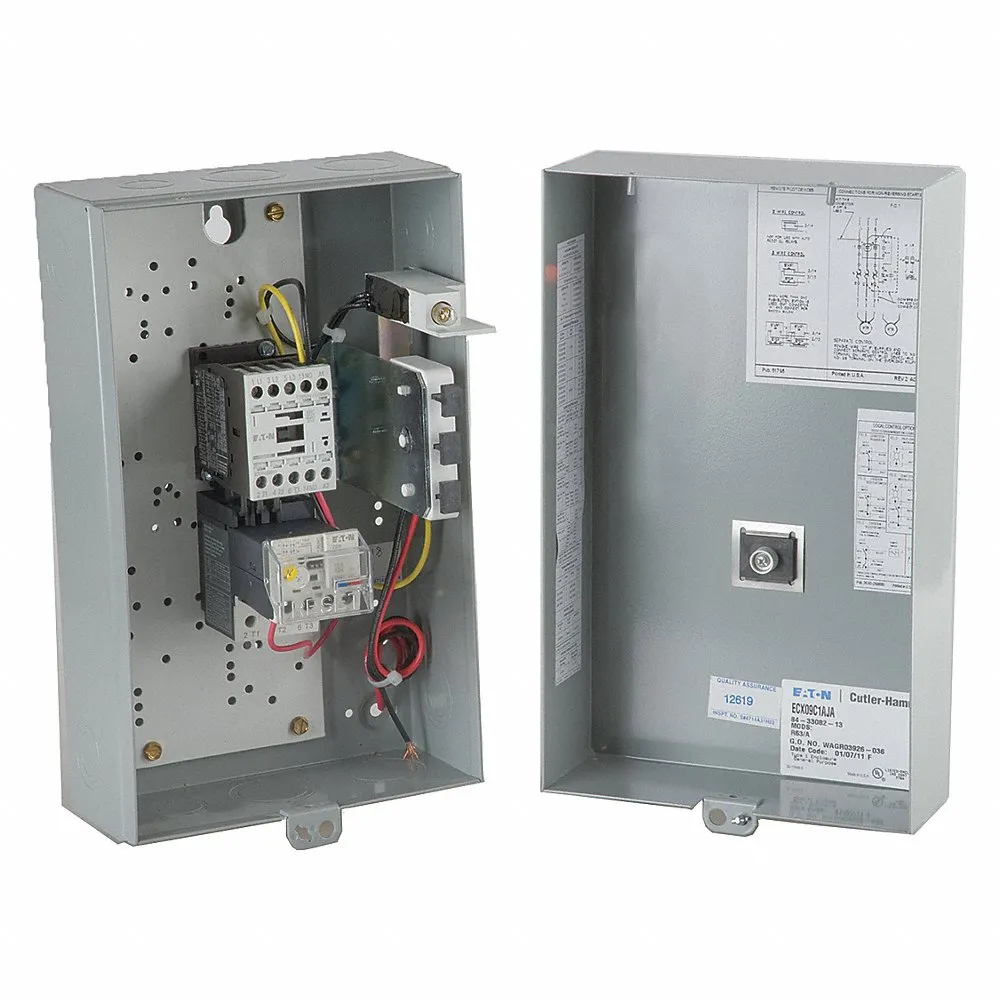

EATON ECX09C1CAA-R63/C IEC Magnetic Motor Starter, Non-Reversing, 3 Poles, Electronic Protection, 9 A, 480 VAC
Item: BJ3WWZModel: ECX09C1CAA-R63/CCross Ref: 5VYU0
7 In Stock
Ships within 2 days via
10.00% off
€685.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Magnetic Motor Starter |
| Action | Nonreversing |
| Amps Rating | 9A |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 480V AC |
| Depth | 10.1" |
| Enclosure Material | Steel |
| Frequency | 50/60 Hz |
| Height | 8 1/2" |
| Horsepower @ Single Phase - 120v Ac | 1/2 hp |
| Horsepower @ Three Phase | 7 1/2 hp |
| Horsepower @ Three Phase - 208v Ac | 2 hp |
| Hp @ 1 Phase - 120v | 1 hp |
| Hp @ 1 Phase - 240v | 1 hp |
| Hp @ 3 Phase - 208v | 2 hp |
| Hp @ 3 Phase - 240v | 2 hp |
| Hp @ 3 Phase - 480v | 5 hp |
| Hp @ 3 Phase - 575v | 7 1/2 hp |
| Hp @ Single Phase - 240v Ac | 1 1/2 hp |
| Hp @ Three Phase - 600v Ac | 7 1/2 hp |
| Includes Auxiliary Contacts | Yes |
| Ip Rating | IP23 |
| Length | 14" |
| Max Current (ac) | 9A |
| Max. Overload Relay Amps Setting | 20A |
| Maximum Voltage Rating | 690V AC |
| Minimum Overload Relay Current Setting | 4A |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| Nema Size | Not Applicable |
| Nominal Coil Voltage @ 60hz | 480V AC |
| Number Of Auxillary Contacts | 2 |
| Number Of Poles | 3 |
| Overall Depth | 14" |
| Overall Height | 8 1/2" |
| Overall Width | 9" |
| Overload Protection Type | Electronic |
| Phase | Three |
| Reversing Capability | Non-reversing |
| Series | Xt Series Series |
| Standards | Cul Listed, Ul Listed |
| Starter Style | IEC |
| Thermal Unit Code | Not Applicable |
| Trip Class | Class 10A, Class 10, Class 20, Class 30 |
| Width | 14.9" |
Shipping Info:
| Ship weight (kg) | 4.41 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 22.86 |
| Country of Origin | US |
Product Variants
| Product | Model | Nema Size | Height | Coil Voltage | Hp @ 3 Phase - 208v | Hp @ 3 Phase - 240v | Hp @ 3 Phase - 480v | Depth | Hp @ 3 Phase - 575v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ECN0531AAA-R63/E | 3 | 25.99" | 110/120V AC | 25 hp | 30 hp | 50 hp | 8.03" | 50 hp | €2,950.65 | |
 |
ECN0541AAA-R63/F | - | 25.99" | - | 40 hp | 50 hp | 100 hp | 8.03" | 100 hp | €7,148.53 | |
 |
ECN0551AAA-R63/G | 5 | 13.31" | 110/120V AC | 75 hp | 100 hp | 200 hp | 6.7" | 200 hp | €18,338.19 | |
 |
ECN05A1AAA-R63/C | 00 | 12 3/5" | 110/120V AC | 1 1/2 hp | 1 1/2 hp | 2 hp | 5 21/25" | 3 hp | €778.18 | |
 |
ECN05A1AAA-R63/A | - | 12 3/5" | - | 1 1/2 hp | 1 1/2 hp | 2 hp | 5 21/25" | 3 hp | €1,022.16 | |
|
ECN05A1AAA-R63/B | 00 | 12 3/5" | 110/120V AC | 1 1/2 hp | 1 1/2 hp | 2 hp | 5 21/25" | 3 hp | €826.05 | |
|
ECN05A1BAA-R63/B | 00 | 12 3/5" | 220/240V AC | 1 1/2 hp | 1 1/2 hp | 2 hp | 5 21/25" | 3 hp | €826.05 |
