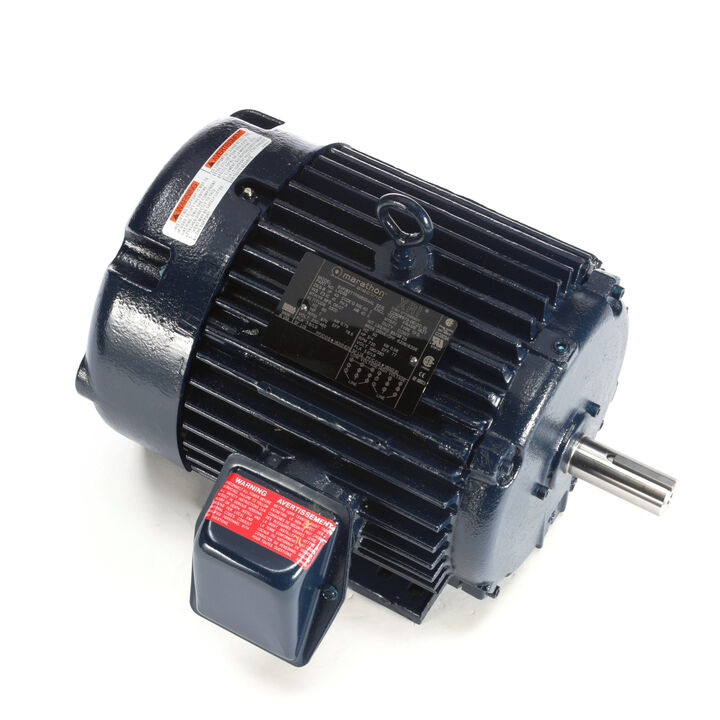

MARATHON MOTORS 182TTFN16101 L409B / 182TTFN16101AA General Purpose Motor, 1/0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 900 and 750 RPM
Get it by Tuesday, Dec 23
€1,862.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Frame | 184T |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Full Load Amps | 3.8/1.9A |
| Full Load Amps @ 50hz | 2A |
| Hp | 1 hp |
| Hp @ 50hz | 1 hp |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 13" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Nameplate Rpm | 870 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 78.5% |
| Overall Length | 15 7/8" |
| Phase | 3 |
| Rpm Range | 0-1100 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 7/8" |
| Standards | Ce Approved, Csa (Lr2025), Ul (E49747) |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Weight | 85 lbs. |
Shipping Info:
| Ship weight (kg) | 38.25 |
| Ship height (cm) | 37.47 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 42.55 |
| HS code | 8501524000 |
| Country of Origin | US |
Product Details:
- Supersedes Marathon - L409 / 182TTFS8101, L409A / 182TTFN4101
