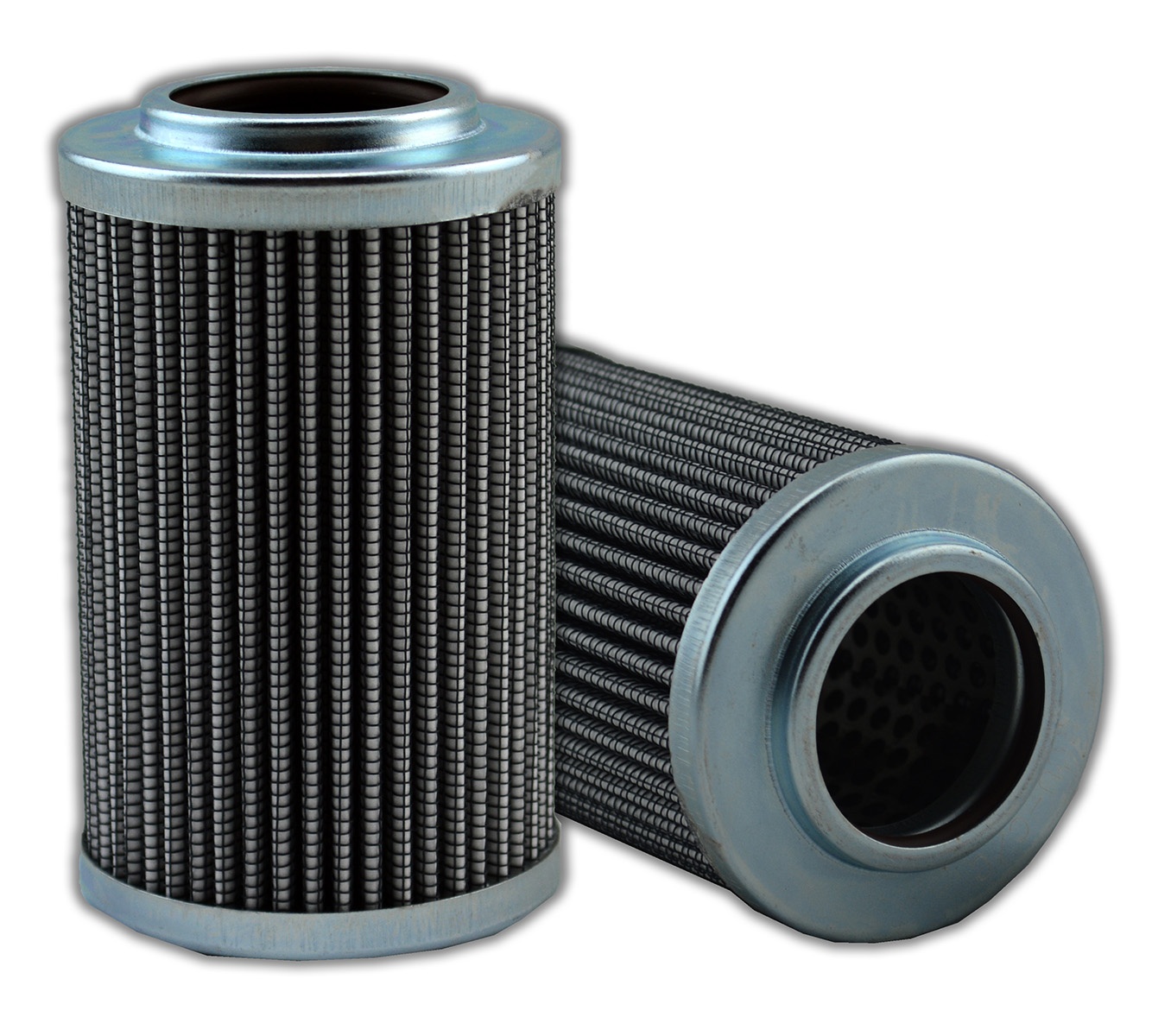

MAIN FILTER INC. MF0896366 940507Q Interchange Hydraulic Filter, Glass, 25 Micron, Viton Seal, 6.26 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom Inside Dia. | 1.27" |
| Bottom Outside Dia. | 2 7/25" |
| Capacity | 19.94g |
| Cracking Pressure | 145 psi |
| Filter Media | Glass |
| Filter Rating | 25 µm |
| Filter Size | 222 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL, HM, HV, HH |
| Gasket Material | Viton |
| Max. Operating Temp. | 248 Deg. F |
| Max. Operating Temp. | 248°F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top Inside Dia. | 1.27" |
| Top Outside Dia. | 2 7/25" |
Product Details:
- Repalcement PARKER 940507Q
Product Variants
| Product | Model | Filter Media | Cracking Pressure | Height | Filter Rating | Flow Direction | Filter Size | Capacity | Collapse Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0006157 | Glass | 3045 psi | 18.465" | 25 µm | Outside In | 1155 sq. in. | 103.72g | 3045 psi | - | RFQ
|
 |
MF0057054 | Glass | 3045 psi | 9.291" | 25 µm | Outside In | 1016 sq. in. | 91.24g | 3045 psi | - | RFQ
|
|
MF0057055 | Glass | 3045 psi | - | 25 µm | Outside In | 1016 sq. in. | 91.24g | - | - | RFQ
|
 |
MF0058205 | Glass | - | - | 25 µm | - | - | - | - | - | RFQ
|
 |
MF0058215 | Glass | - | - | 25 µm | - | - | - | - | - | RFQ
|
 |
MF0058225 | Glass | - | - | 25 µm | - | - | - | - | - | RFQ
|
 |
MF0058341 | Glass | 3045 psi | 3.94" | 25 µm | Outside In | 43 sq. in. | 3.86g | - | - | RFQ
|
