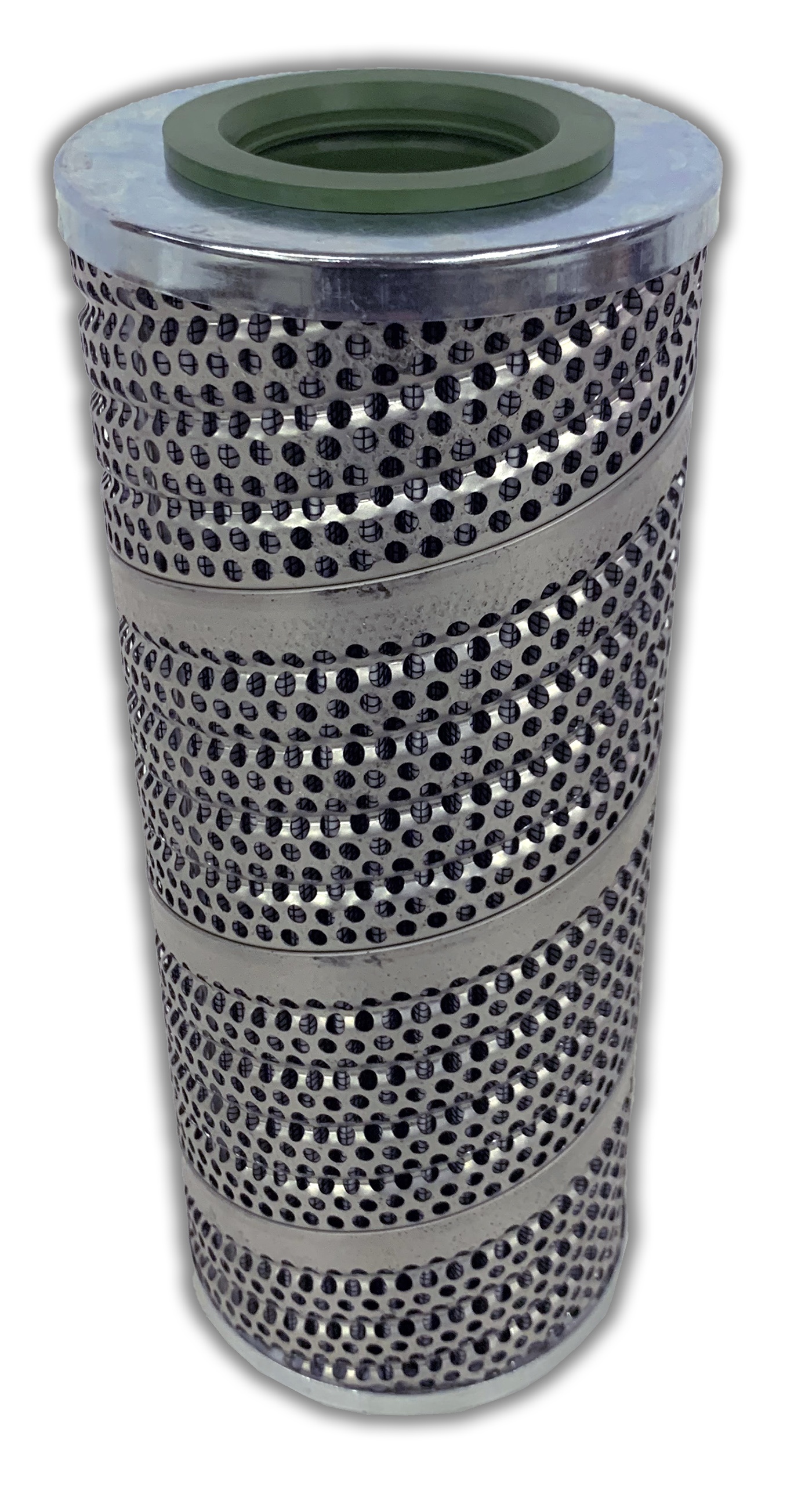

MAIN FILTER INC. MF0613142 Hydraulic Filter, Glass/Water Removal, 25 Micron, Viton Seal, 9.29 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom Inside Dia. | 1.732" |
| Bottom Outside Dia. | 3.661" |
| Capacity | 22.63g |
| Cracking Pressure | 73 psi |
| Filter Media | Glass, Water Removal |
| Filter Rating | 25 µm |
| Filter Size | 252 sq. in. |
| Flow Direction | Inside Out |
| Flow Type | Inside Out |
| Fluid Type | HL, HM, HV, HH |
| Gasket Material | Viton |
| Max. Operating Temp. | 248 Deg. F |
| Max. Operating Temp. | 248°F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top Inside Dia. | 1.732" |
| Top Outside Dia. | 3.661" |
Product Details:
- Repalcement NATIONAL FILTERS
Product Variants
| Product | Model | Filter Media | Cracking Pressure | Height | Filter Rating | Flow Direction | Filter Size | Seal Type | Gasket Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0006196 | Cellulose | 73 psi | - | 10 µm | Inside Out | 1143 sq. in. | Buna N | Buna N | - | RFQ
|
 |
MF0006199 | Glass | 73 psi | 18 1/2" | 10 µm | Inside Out | 929 sq. in. | Buna N | Buna N | - | RFQ
|
 |
MF0006388 | Wire Mesh | 73 psi | 8.93" | 40 µm | Inside Out | 251 sq. in. | - | - | - | RFQ
|
 |
MF0006425 | Wire Mesh | 73 psi | 7.63" | 75 µm | Inside Out | 214 sq. in. | - | - | - | RFQ
|
 |
MF0007613 | Wire Mesh | 51 psi | 7.55" | 74 µm | Outside In | 316 sq. in. | Guarnital | Guarnital | - | RFQ
|
 |
MF0008101 | Wire Mesh | 44 psi | 7.79" | 250 µm | Inside Out | 423 sq. in. | - | - | - | RFQ
|
 |
MF0008305 | Wire Mesh | 44 psi | - | 250 µm | Inside Out | 363 sq. in. | - | - | - | RFQ
|
