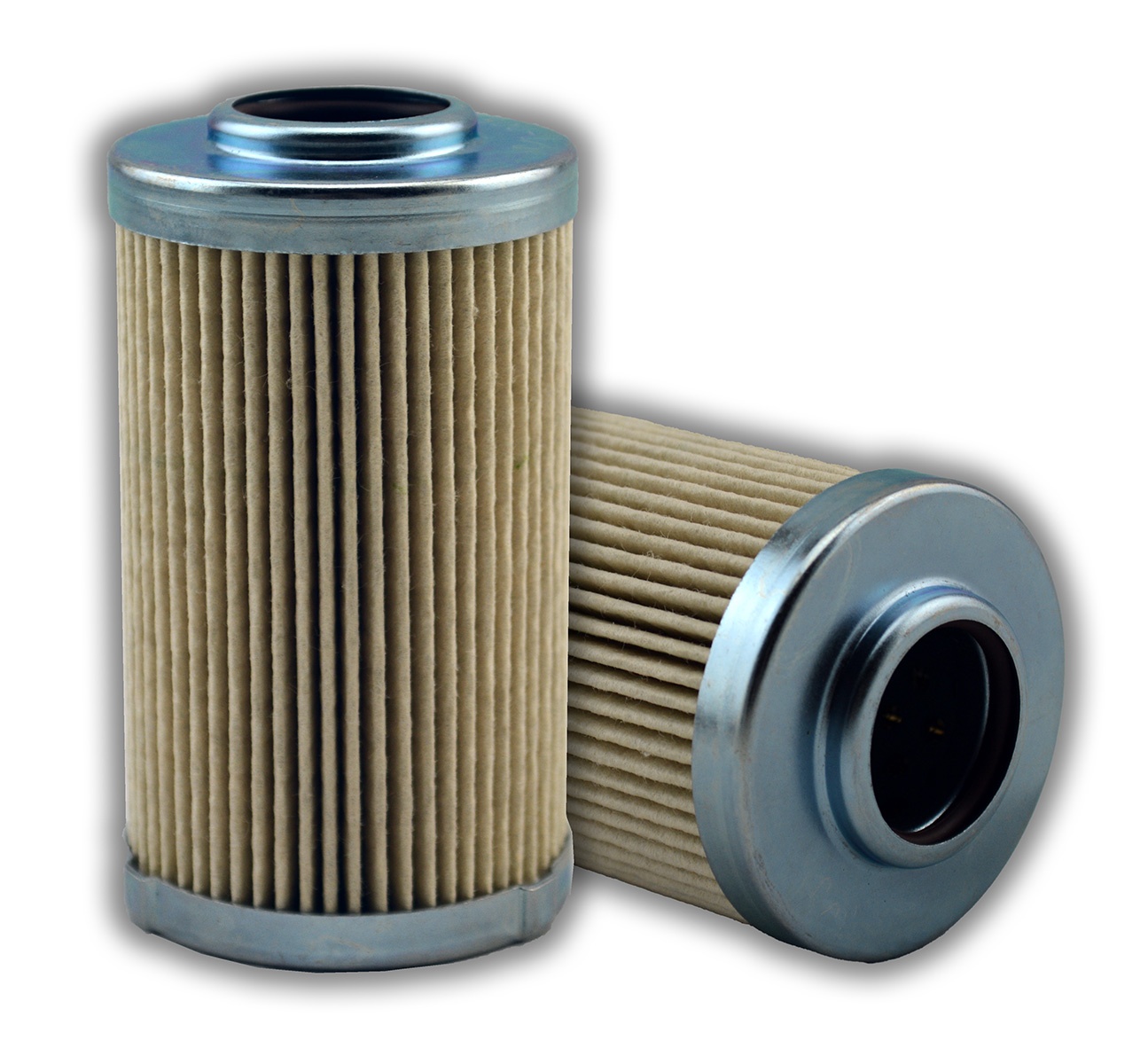

MAIN FILTER INC. MF0590680 256P25A000M Hydraulic Filter, Cellulose, 20 Micron Rating, Viton Seal, 3.7 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom O.d. | 2.087" |
| Capacity | 4.32g |
| Collapse Pressure | 435 psi |
| Cracking Pressure | 435 psi |
| Filter Media | Cellulose |
| Filter Rating | 20 µm |
| Filter Size | 108 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Height | 3.7" |
| Max. Operating Temp. | 248°F |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top I.d. | 0.965" |
| Top O.d. | 2.087" |
Product Details:
- Repalcement REXROTH 256P25A000M
Product Variants
| Product | Model | Top O.d. | Top I.d. | Cracking Pressure | Height | Bottom O.d. | Flow Direction | Filter Size | Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0004446 | 1.752" | 0.87" | 435 psi | 3.54" | 1.752" | Outside In | 63 sq. in. | 2.51g | - | RFQ
|
 |
MF0004449 | 1.752" | 0.87" | 435 psi | - | 1.752" | Outside In | 135 sq. in. | 5.41g | - | RFQ
|
 |
MF0005080 | 2.087" | 0.965" | - | 5.86" | 2.087" | - | - | - | - | RFQ
|
|
MF0006029 | 1.752" | 0.87" | 435 psi | 3.54" | 1.752" | Outside In | 63 sq. in. | 2.51g | - | RFQ
|
|
MF0006033 | 1.752" | 0.87" | 435 psi | - | 1.752" | Outside In | 135 sq. in. | 5.41g | - | RFQ
|
 |
MF0006041 | 2.362" | 1.347" | 435 psi | 7 2/5" | 2.362" | Outside In | 234 sq. in. | 9.36g | - | RFQ
|
 |
MF0006073 | 3.032" | 1.898" | 435 psi | - | 3.032" | Outside In | 310 sq. in. | 12.41g | - | RFQ
|
