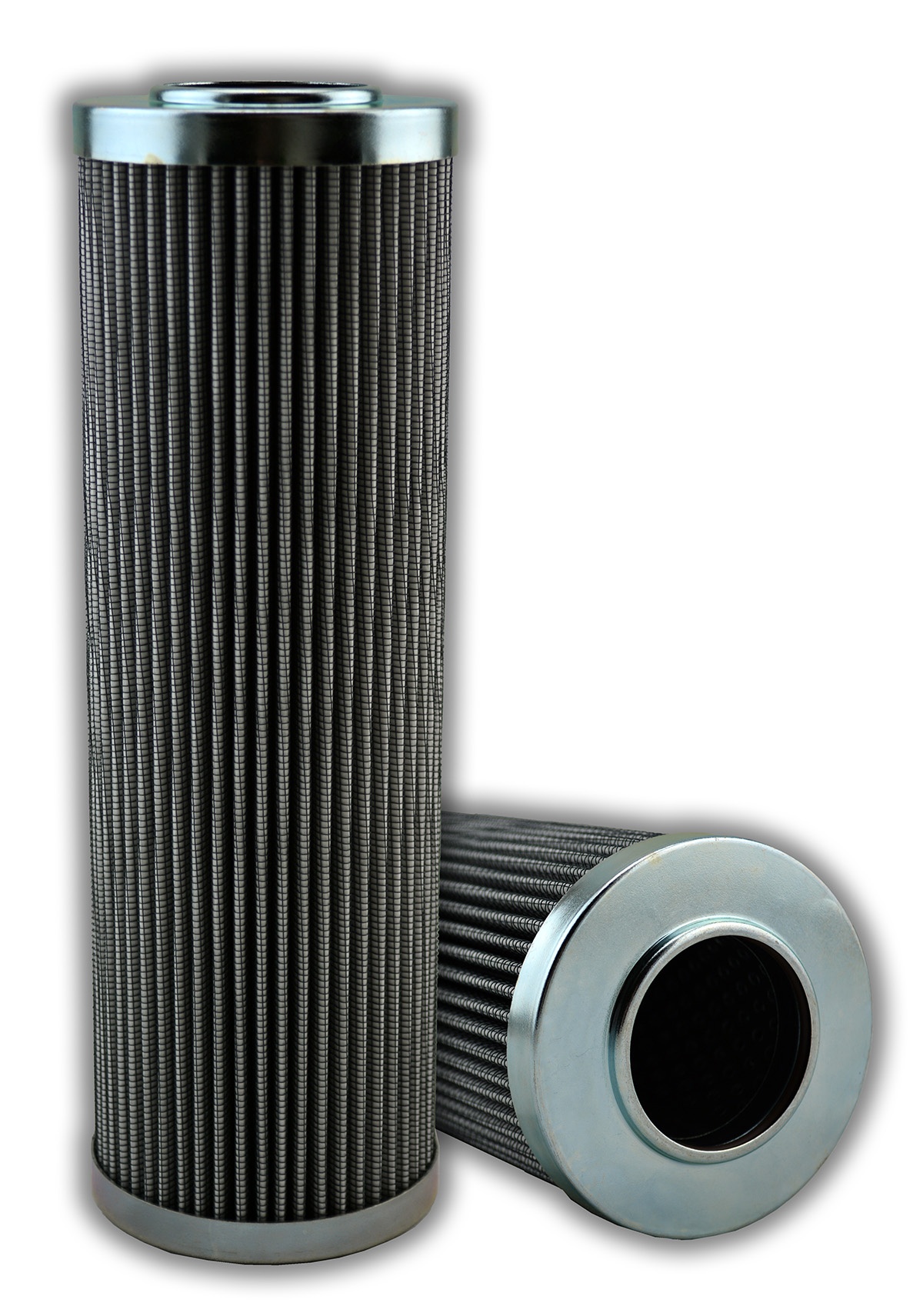

MAIN FILTER INC. MF0576885 DVD20030E20V Interchange Hydraulic Filter, Glass, 25 Micron, Viton Seal, 9.76 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom O.d. | 3.15" |
| Capacity | 47.06g |
| Cracking Pressure | 435 psi |
| Filter Media | Glass |
| Filter Rating | 25 µm |
| Filter Size | 524 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Max. Operating Temp. | 248°F |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top I.d. | 1.66" |
| Top O.d. | 3.15" |
Product Details:
- Repalcement FILTREC DVD20030E20V
Product Variants
| Product | Model | Top O.d. | Filter Media | Top I.d. | Height | Cracking Pressure | Filter Rating | Bottom O.d. | Seal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0058346 | 1.772" | Cellulose | 1.004" | - | 305 psi | 10 µm | 1.772" | Viton | - | RFQ
|
 |
MF0058348 | 1.772" | Cellulose | 1.004" | - | 305 psi | 25 µm | 1.772" | Viton | - | RFQ
|
 |
MF0058350 | 1.772" | Glass | 1.004" | 3.38" | 305 psi | 3 µm | 1.772" | Viton | - | RFQ
|
 |
MF0058352 | 1.772" | Glass | 1" | - | - | 3 µm | 1.772" | Viton | - | RFQ
|
 |
MF0058354 | 1.772" | Glass | 1" | - | 305 psi | 5 µm | 1.772" | Viton | - | RFQ
|
 |
MF0058356 | 1.772" | Glass | 1" | - | 3045 psi | 5 µm | 1.772" | Viton | - | RFQ
|
 |
MF0058358 | 1.772" | Glass | 1" | - | 305 psi | 10 µm | 1.772" | Viton | - | RFQ
|
