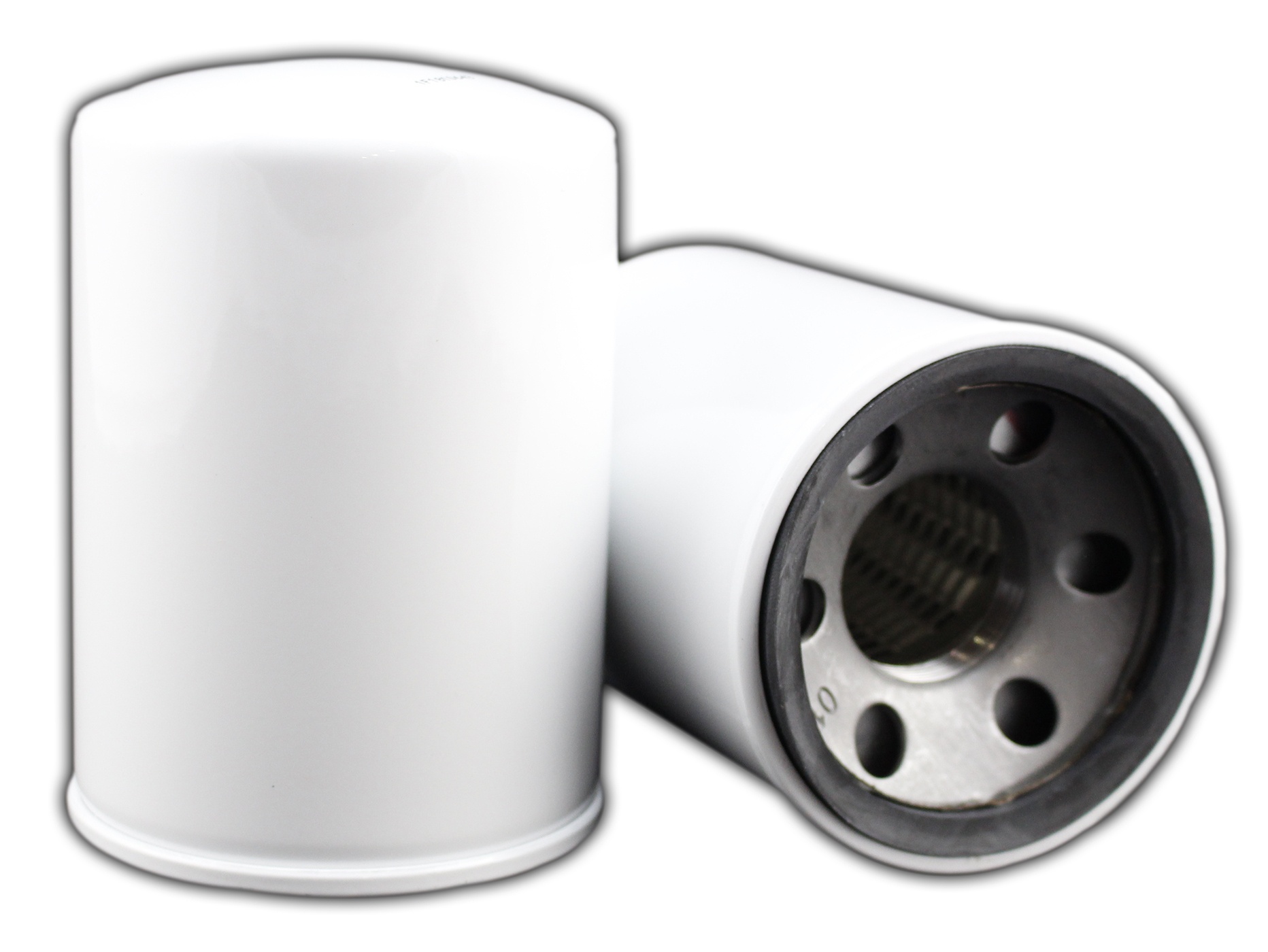

MAIN FILTER INC. MF0504643 02063782 Interchange Spin-On Filter, Cellulose, 10 Micron, Buna Seal, 8.335 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spin-On Hydraulic Filter |
| Bottom O.d. | 3.78" |
| Burst Pressure | 261 psi |
| Capacity | 23.05g |
| Cracking Pressure | 72.5 psi |
| Filter Media | Cellulose |
| Filter Rating | 10 µm |
| Filter Size | 576 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Buna N |
| Height | 8.335" |
| Max. Operating Temp. | 248 Deg. F |
| Max. Operating Temp. | 248°F |
| Min. Operating Temp. | -13°F |
| Seal Type | Buna N |
| Thread | 16 UNF |
| Top O.d. | 3.78" |
Product Details:
- Repalcement HYDAC/HYCON 02063782
Product Variants
| Product | Model | Filter Media | Top O.d. | Cracking Pressure | Height | Top I.d. | Seal Type | Filter Rating | Bottom O.d. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0003957 | Cellulose | 3 3/4" | 72 psi | - | - | Buna N | 20 µm | 3 3/4" | - | RFQ
|
 |
MF0004615 | Glass | 3 3/4" | 145 psi | 7.88" | - | Buna N | 10 µm | 3 3/4" | - | RFQ
|
|
MF0007089 | Glass | 3 3/4" | 145 psi | 7.88" | - | Buna N | 10 µm | 3 3/4" | - | RFQ
|
 |
MF0007107 | Glass | 3.78" | 145 psi | 8.307" | - | Buna N | 10 µm | 3.78" | - | RFQ
|
 |
MF0007108 | Glass | 3.78" | 145 psi | 8.307" | - | Buna N | 25 µm | 3.78" | - | RFQ
|
 |
MF0007109 | Glass | 5.079" | 145 psi | 7.02" | - | Buna N | 25 µm | 5.079" | - | RFQ
|
 |
MF0007110 | Glass | 5.079" | 145 psi | 8.949" | - | Buna N | 10 µm | 5.079" | - | RFQ
|
