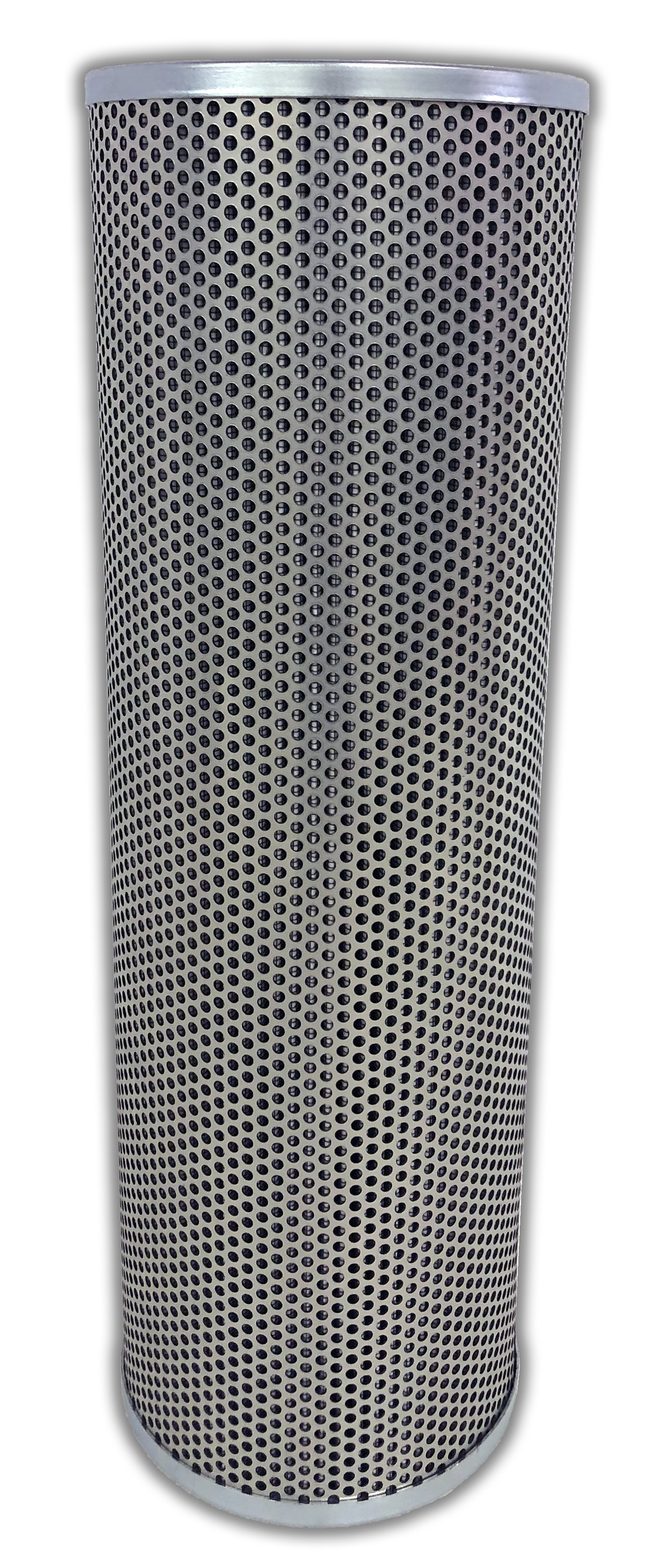

MAIN FILTER INC. MF0428069 FC1098Q002BS Interchange Hydraulic Filter, Glass, 3 Micron Rating, Buna Seal, 15.35 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom I.d. | 0.409" |
| Bottom O.d. | 4.961" |
| Capacity | 82.79g |
| Collapse Pressure | 145 psi |
| Cracking Pressure | 145 psi |
| Filter Media | Glass |
| Filter Rating | 3 µm |
| Filter Size | 1119 sq. in. |
| Flow Direction | Inside Out |
| Flow Type | Inside Out |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Buna N |
| Height | 15.35" |
| Max. Operating Temp. | 248 Deg. F |
| Max. Operating Temp. | 248°F |
| Min. Operating Temp. | -13°F |
| Seal Type | Buna N |
| Top I.d. | 3.622" |
| Top O.d. | 4.961" |
Product Details:
- Repalcement PARKER FC1098Q002BS
Product Variants
| Product | Model | Filter Media | Top O.d. | Top I.d. | Height | Cracking Pressure | Bottom O.d. | Bottom I.d. | Flow Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0432642 | Glass | 3.13" | - | - | 145 psi | 3.13" | 1.26" | Outside In | - | RFQ
|
 |
MF0425526 | Glass, Water Removal | 6.083" | 2.618" | - | 102 psi | - | 2.618" | Outside In | - | RFQ
|
 |
MF0432295 | Glass | 3.661" | 1.732" | - | 73 psi | 3.661" | 1.732" | Inside Out | - | RFQ
|
 |
MF0426695 | Glass | 5.61" | 3.996" | 12 3/25" | - | 5.61" | 3.996" | - | - | RFQ
|
 |
MF0310798 | Glass | 5.992" | 3 1/2" | - | - | 5.992" | 3 1/2" | - | - | RFQ
|
 |
MF0598534 | Glass | 5.906" | 3.504" | 8.07" | - | 5.906" | 3.504" | - | - | RFQ
|
 |
MF0427346 | Glass | 2.835" | 1.772" | - | 145 psi | 2.835" | 0.331" | Inside Out | - | RFQ
|
