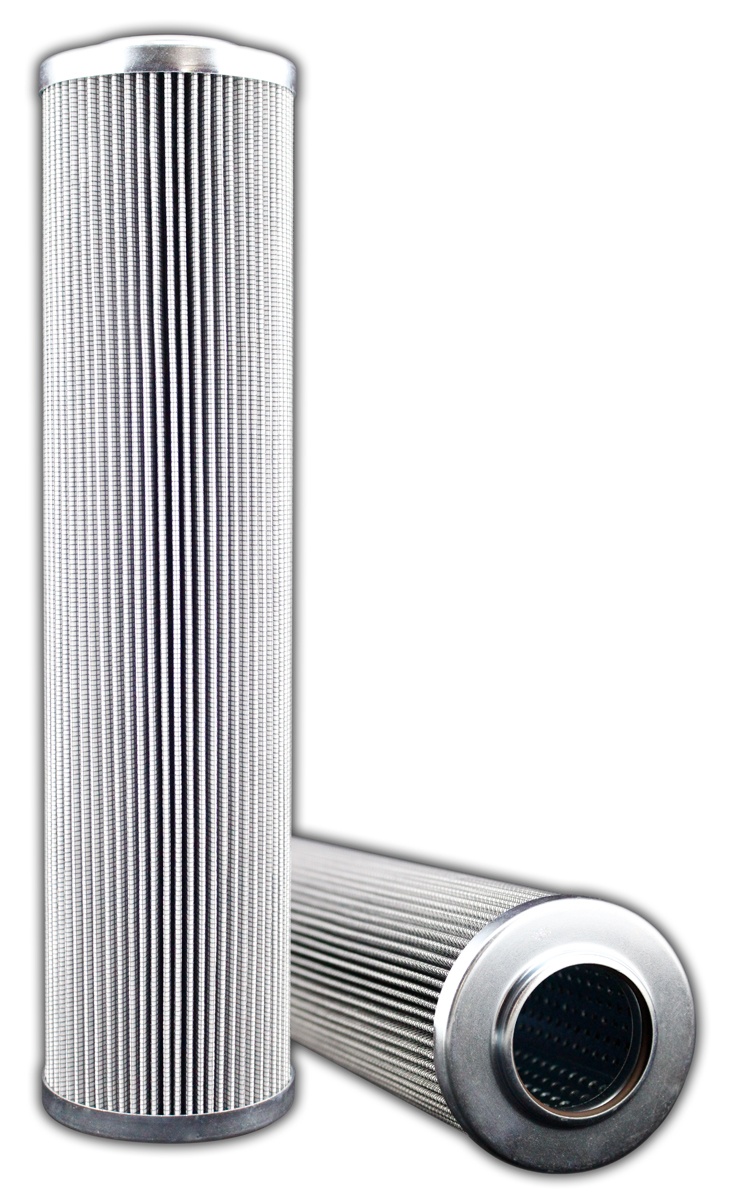

MAIN FILTER INC. MF0337901 HC9650FUP8H Interchange Hydraulic Filter, Glass, 3 Micron, Viton Seal, 8.38 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom I.d. | 1.701" |
| Bottom O.d. | 3.071" |
| Capacity | 36.11g |
| Cracking Pressure | 305 psi |
| Filter Media | Glass |
| Filter Rating | 3 µm |
| Filter Size | 488 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Height | 8.38" |
| Max. Operating Temp. | 248°F |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top I.d. | 1.701" |
| Top O.d. | 3.071" |
Product Details:
- Repalcement PALL HC9650FUP8H
Product Variants
| Product | Model | Top I.d. | Top O.d. | Cracking Pressure | Height | Bottom O.d. | Capacity | Filter Size | Collapse Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0004536 | 1.701" | 3.071" | 305 psi | - | 3.071" | 75.33g | 1018 sq. in. | - | - | RFQ
|
 |
MF0005340 | 1.343" | 2.717" | - | 6.81" | 2.717" | - | - | - | - | RFQ
|
 |
MF0006002 | 0.476" | 1.378" | 3045 psi | 3.7" | 1.378" | 2.36g | 32 sq. in. | - | - | RFQ
|
 |
MF0006006 | 0.87" | 1.85" | 3045 psi | 3.31" | 1.85" | 5.48g | 71 sq. in. | 3045 psi | - | RFQ
|
 |
MF0006010 | 0.87" | 1.752" | - | - | 1.752" | - | - | - | - | RFQ
|
 |
MF0006014 | 1.346" | 2.717" | 3045 psi | 4 13/25" | 2.717" | 14.8g | 200 sq. in. | - | - | RFQ
|
|
MF0006038 | 1.343" | 2.717" | - | 6.81" | 2.717" | - | - | - | - | RFQ
|
