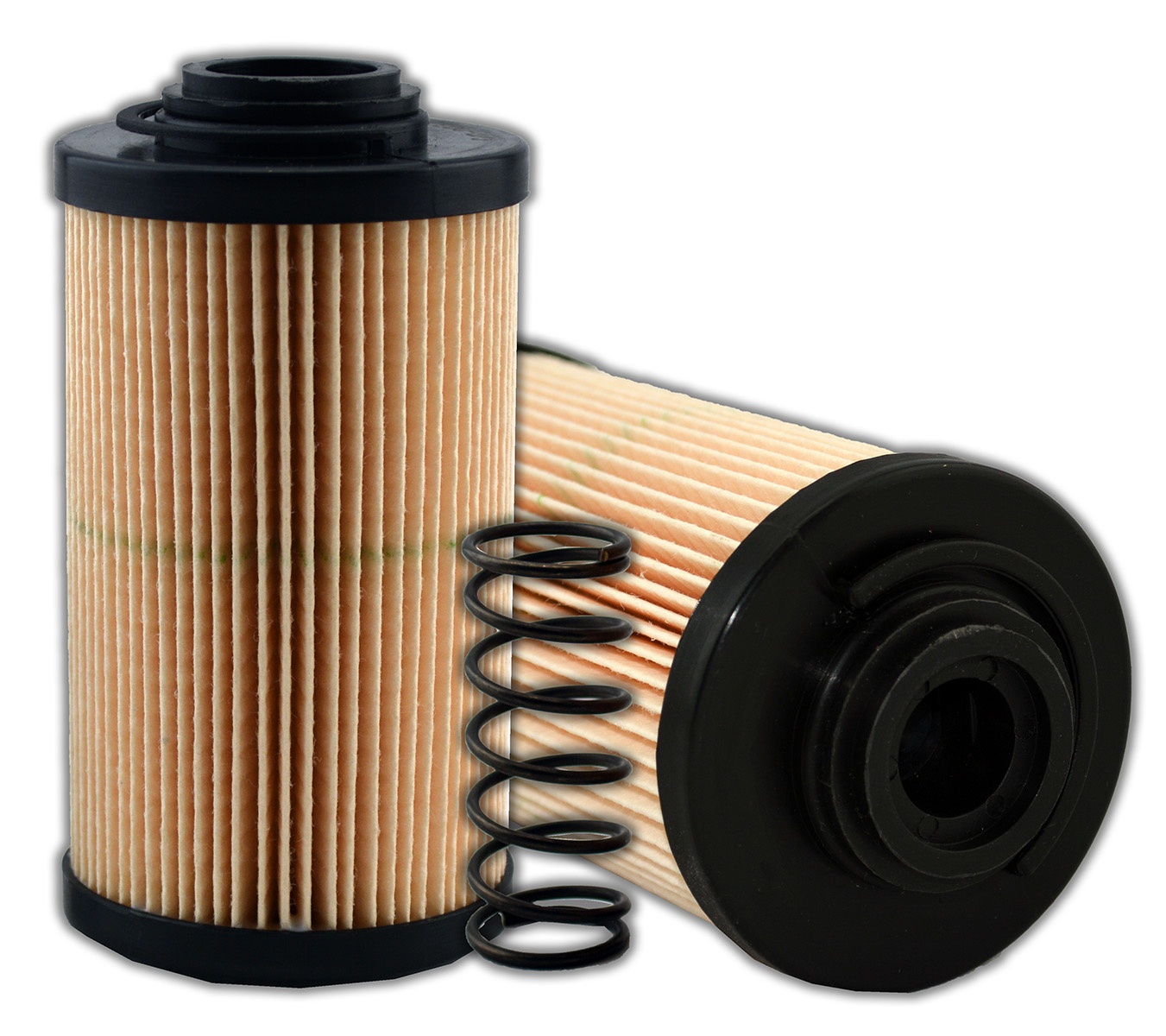

MAIN FILTER INC. MF0304295 CR1003 Interchange Hydraulic Filter, Cellulose, 25 Micron, Viton Seal, 5.11 Inch Height
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Filter |
| Bottom O.d. | 2.756" |
| Capacity | 10.17g |
| Cracking Pressure | 44 psi |
| Filter Media | Cellulose |
| Filter Rating | 25 µm |
| Filter Size | 254 sq. in. |
| Flow Direction | Outside In |
| Flow Type | Outside In |
| Fluid Type | HL/HM/HV/HH |
| Gasket Material | Viton |
| Height | 5.11" |
| Max. Operating Temp. | 248°F |
| Max. Operating Temp. | 248 Deg. F |
| Min. Operating Temp. | -13°F |
| Seal Material | Viton |
| Seal Type | Viton |
| Top I.d. | 1.161" |
| Top O.d. | 2.756" |
Product Details:
- Repalcement DONALDSON/FBO/DCI CR1003
Product Variants
| Product | Model | Filter Media | Top I.d. | Top O.d. | Cracking Pressure | Height | Filter Rating | Bottom O.d. | Flow Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0058347 | Cellulose | 1.004" | 1.772" | 305 psi | - | 25 µm | 1.772" | Outside In | - | RFQ
|
 |
MF0058381 | Cellulose | 1.004" | - | 305 psi | 4 11/25" | 25 µm | 1.772" | Outside In | - | RFQ
|
 |
MF0058503 | Cellulose | 0.965" | 2.087" | 305 psi | - | 25 µm | 2.087" | Outside In | - | RFQ
|
 |
MF0058693 | Cellulose | 1.701" | 3.071" | 305 psi | 4 14/25" | 25 µm | 3.071" | Outside In | - | RFQ
|
 |
MF0058741 | Cellulose | 1.701" | 3.071" | 305 psi | - | 25 µm | 3.071" | Outside In | - | RFQ
|
 |
MF0058965 | Cellulose | 1.595" | 3.071" | 305 psi | - | 25 µm | 3.071" | Outside In | - | RFQ
|
 |
MF0059209 | Cellulose | 0.898" | 1.654" | 363 psi | 3.54" | 25 µm | 1.654" | Outside In | - | RFQ
|
