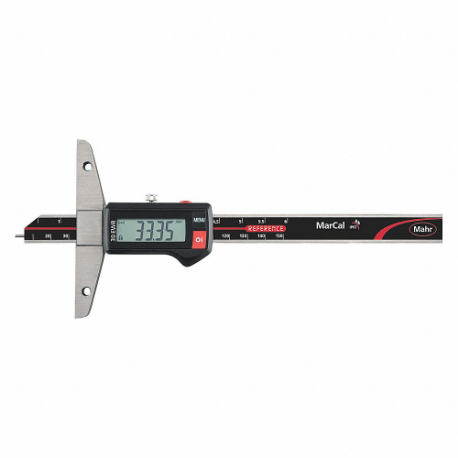

MAHR 4126755 Blade-Style Digital Depth Gauge, 0-6 Inch/0 mm to 150 mm Range, IP67
Item: CT2BHQModel: 4126755Cross Ref: 45PG16
7 In Stock
Ships within 2 days via
10.00% off
€748.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gauge |
| Accuracy | -0.03 mm to +0.03 mm |
| Actuation Style | Slide |
| Anvil | Round |
| Anvil Material | Hardened Steel |
| Base Length | 100 mm |
| Base Style | Half |
| Battery Included | Yes |
| Blade Material | Stainless Steel |
| Blade Tip Shape | Flat |
| Blade Width | 4 mm |
| Compatible Wireless Transmitter | Marconnect |
| Contact Point Shape | Pin |
| Coolant Resistant | Yes |
| Data Output Type | Wireless |
| Depth Gauge Type | Flat Rule |
| Dimension Type | Inch, Metric |
| Function | Auto And Manual On/Off, Data (Data Transmission), Hold (Storage Of Measured Values), Inch/mm Conversion, Key Lock Function, Preset For Entering A Numerical Value, Reset- Set Display To Zero, Reversal Of Counting Direction |
| Functions | Auto And Manual On/Off, Data (Data Transmission), Hold (Storage Of Measured Values), In/Mm Conversion, Key Lock Function, Preset For Entering A Numerical Value, Reset- Set Display to Zero, Reversal Of Counting Direction |
| Included Certification | Certificate Of Conformance |
| Includes | Instruction Manual |
| Includes Case | Yes |
| Ip Rating | IP67 |
| Lock Nut Type | Thumb Screw |
| Long Form Calibration Certificate | No |
| Max. Measurement | 6" |
| Maximum Measurement - Mm | 150 mm |
| Minimum Measurement - Inch | 0" |
| Minimum Measurement - Mm | 0 mm |
| Movement Of Screw | 1" |
| Number Of Gauges | 0 |
| Number Of Measuring Rods | 0 |
| Operation Type | Digital |
| Range | 0" to 6" |
| Resolution | 0.0005" |
| Rod Dia. | 0.06" |
| Rod Type | Interchangeable |
| Rotating Spindle | No |
| Spc Output | Yes |
| Spindle | Flat |
| Spindle Material | Hardened Steel |
| Thimble | Ratchet |
| Thimble Type | Ratchet |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Accuracy | Range | Base Length | Data Output Type | Lock Nut Type | Contact Point Shape | Depth Gauge Type | Base Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

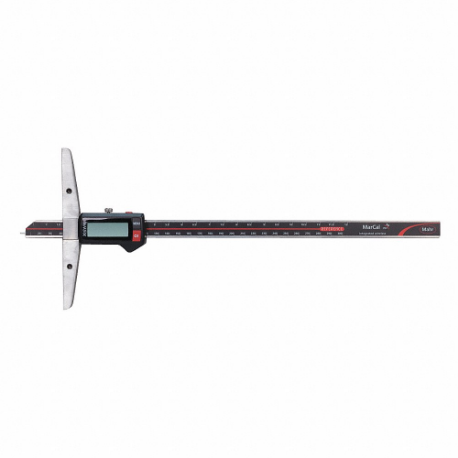

4126756 | -0.04 mm to +0.04 mm | 0" to 12", 0 mm to 300 mm | 150 mm | Wireless | Thumb Screw | Pin | Flat Rule | Half | - | RFQ
|
 |

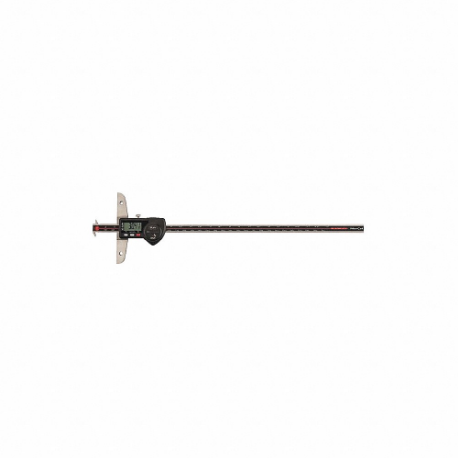

4126524 | -0.04 mm to +0.04 mm | 0" to 12", 0 mm to 300 mm | 150 mm | Cable | Screw | Flat | Blade-Style | Half | - | RFQ
|
 |

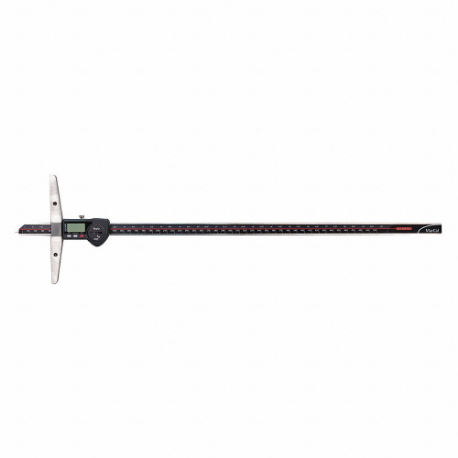

4126702 | -0.05 mm to +0.05 mm | 0" to 20" | 150 mm | Cable | Thumb Screw | Pin | Flat Rule | Half | - | RFQ
|
 |
4126757 | -0.05 mm to +0.05 mm | 0" to 20" | 150 mm | Wireless | Thumb Screw | Pin | Flat Rule | Half | - | RFQ
|
 |
4126532 | -0.03 mm to +0.03 mm | 0" to 4" | 85 mm | Wireless | Screw | Flat | Blade-Style | Flat | €1,624.04 | |
 |
4126513 | -0.03 mm to +0.03 mm | 0" to 4" | 85 mm | Cable | Screw | Flat | Blade-Style | Half | €1,302.68 | |
 |
4126700 | -0.04 mm to +0.04 mm | 0" to 6" | 100 mm | Cable | Thumb Screw | Pin | Flat Rule | Half | - | RFQ
|
