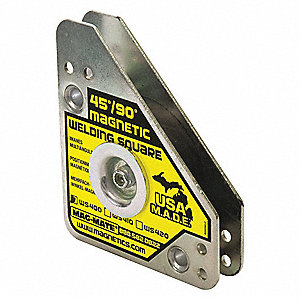

MAG-MATE WS400AX3 Magnetic Welding Square, Mid-Size, 75 Lbs, 3 Axis
Item: CD8YLTModel: WS400AX3Cross Ref: 48FY45
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Magnetic Welding Square |
| Center Hole Diameter | 5/16" |
| Characteristics | Mid-Size |
| Color | Silver |
| Features | For Holding Support Brackets, Holds 3 Pieces Of Metal At Once |
| Housing Material | Steel |
| Includes | Multiple Language Label |
| Magnet Material | Ceramic |
| Material | Ceramic |
| Maximum Pull | 75 lbs. |
| Number Of Angles | 2 |
| On/off Setting | No |
| Overall Height | 4 2/5" |
| Overall Length | 3.8" |
| Overall Width | 3 4/5" |
| Plate Thickness | 1.13" |
| Positioner Color | Silver |
| Positioner Type | Magnetic Welding Square |
| Positioning Angles | 45°, 90° |
| Stability Temperature | 300°F |
| Switchable On/off | Not Switchable |
| Type | Magnetic |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 11.18 |
| Ship length (cm) | 9.65 |
| Ship width (cm) | 9.65 |
| Country of Origin | US |
Product Variants
| Product | Model | Color | Overall Height | Overall Length | Overall Width | Material | Thickness | Angle | Max. Pull | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WS11094 | Silver | 3" | 4 2/5" | 4 2/5" | Ceramic | 1/2" | 30°, 45°, 60°, 75°, 90°, 180° | - | 1 | €29.60 | |
 |
WS300 | Silver | 3 4/5" | 3 4/5" | 3 4/5" | Ceramic | 5/8" | 45°, 90° | - | 1 | €22.28 | |
 |
WS302 | Silver | 3 4/5" | 7 3/5" | 7 3/5" | Ceramic | 5/8" | Multiple | - | 1 | €55.37 | |
 |
WS400 | Silver | 4 2/5" | 3 4/5" | 3 4/5" | Ceramic | 3/4" | 45°, 90° | 75 lbs. | 1 | €39.64 | |
 |
WS410 | Silver | 4 2/5" | 3 4/5" | 3 4/5" | Ceramic | 3/4" | 45°, 90° | 75 lbs. | 1 | €53.60 | |
 |
WS420 | Silver | 4 2/5" | 3 4/5" | 3 4/5" | Ceramic | 1 1/2" | 45°, 90° | 150 lbs. | 1 | €103.84 | |
 |
WS820 | Silver | 8" | 8" | 8" | Ceramic | 1 5/8" | 45°, 90° | 325 lbs. | 1 | €275.05 |
